60 SERIES (Centrifugal Pumps)

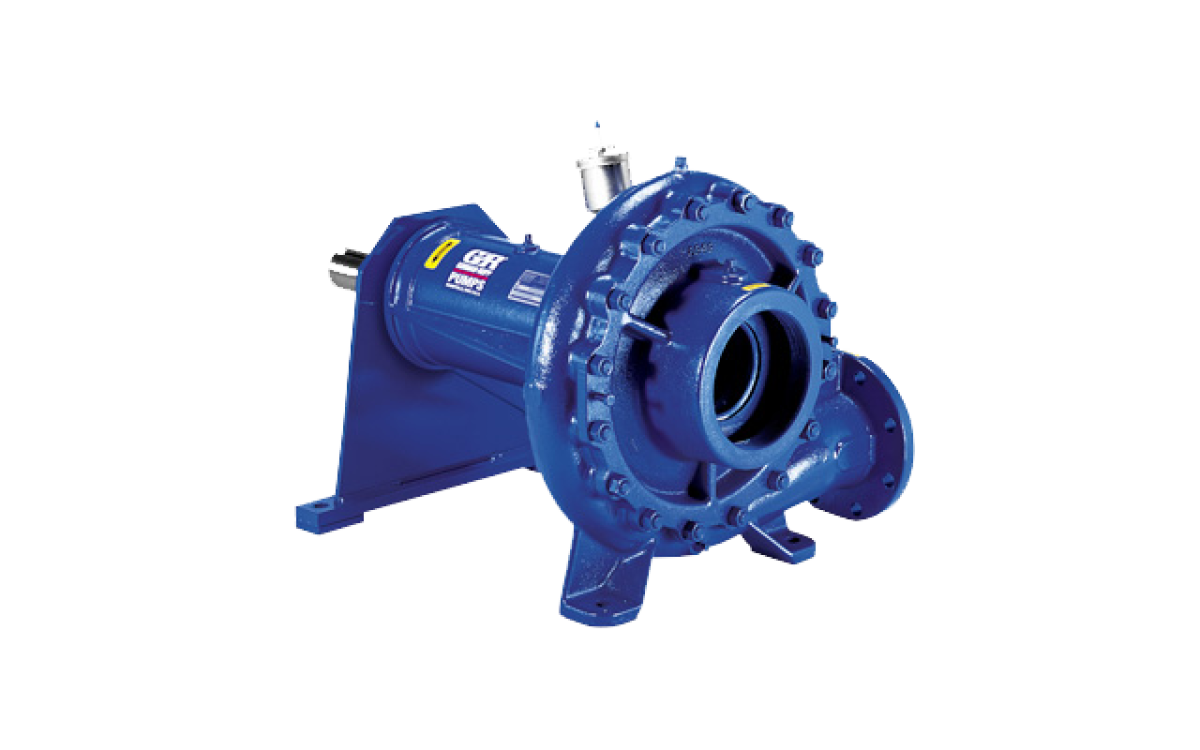

Gorman-Rupp 60 Series pumps are standard centrifugal, high pressure, high volume pumps with exceptional efficiencies (up to 85%). Discharge on many models can be placed in any position by turning the pump casing.

Model: 62E31-B ; 62F31-B ; 63D31-B ; 63E31-B ; 63E32-B ; 64B2-B ; 64K31-B ; 65A31-B ; 65A32-B ; 66B2-B ; 66B3-B ; 68A2-B ; 610M20-B ; 610M20B-B ; 612L20-B ; 612L20B-B ; 612M60-B

Specifications

Size	2" (50 mm), 2-1/2" (60 mm), 3" (80 mm), 4" (100 mm), 5" (125 mm), 6" (150 mm), 8" (200 mm), 10" (250 mm), 12" (300 mm)
Max Capacity	6800 GPM (429 lps)
Max Head	500' (152 m)
Max Solids	3" (76 mm)
Max Temperature	160 F (71 C)
Materials of Construction	Cast Iron, Cast Steel, Ductile Iron

Đặt hàng

Mô tả

60 Series Standard Centrifugal Pumps

MODELS

Item	Size	Casing	Impeller / Rotor	Drive	Flange	Seal
62E31-B	3 x 2	Ductile Iron	Aluminum	Basic	ASA	Carbon/Ni-Resist
62F31-B	3 x 2	Ductile Iron	Aluminum	Basic	ASA	Carbon/Ni-Resist
63D31-B	4 x 3	Ductile Iron	Aluminum	Basic	ASA	Carbon/Ni-Resist
63E31-B	4 x 3	Ductile Iron	Aluminum	Basic	ASA	Carbon/Ni-Resist
63E32-B	4 x 3	Cast Steel	Aluminum	Basic	ASA	Carbon/Ni-Resist
64B2-B	6 x 4	Cast Iron	Cast Iron	Basic	NPT	Double Grease
64K31-B	6 x 4	Ductile Iron	Aluminum	Basic	ASA	Carbon/Ni-Resist
65A31-B	6 x 5	Ductile Iron	Aluminum	Basic	ASA	Carbon/Ni-Resist
65A32-B	6 x 5	Cast Steel	Aluminum	Basic	ASA	Carbon/Ni-Resist
66B2-B	6 x 6	Cast Iron	Cast Iron	Basic	NPT	Double Grease
66B3-B	6 x 6	Cast Iron	Cast Iron	Basic	ASA	Double Grease
68A2-B	8 x 8	Cast Iron	Cast Iron	Basic	NPT	Double Grease
610M20-B	10 x 10	Cast Iron	Ductile Iron	Basic	ASA	Tungsten Carbide
610M20B-B	10 x 10	Cast Iron	Ductile Iron	Basic	ASA	Tungsten Carbide
612L20-B	12 x 12	Cast Iron	Ductile Iron	Basic	ASA	Tungsten Carbide
612L20B-B	12 x 12	Cast Iron	Ductile Iron	Basic	ASA	Tungsten Carbide
612M60-B	12 x 12	Cast Iron	Ductile Iron	Basic	ASA	Silicon Carbide
