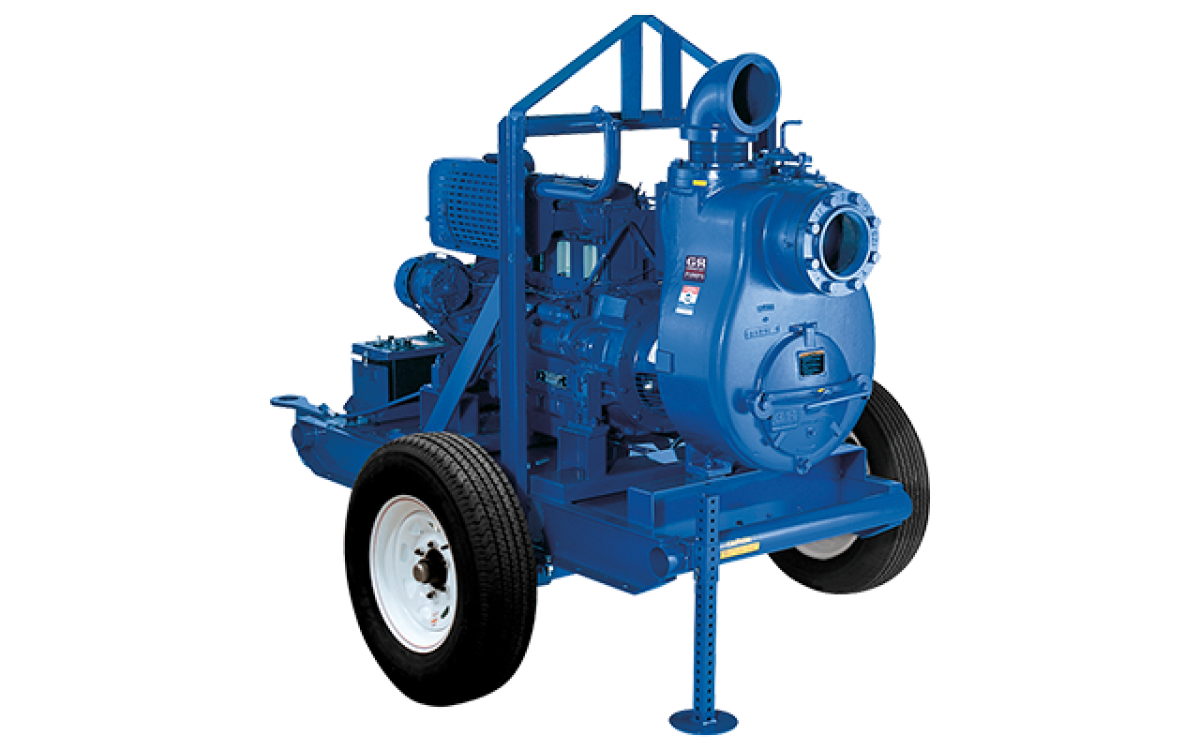

Self-Priming Pumps- 10 SERIES® (ENGINE DRIVEN) (MÁY BƠM CHỐNG NGẬP ÚNG KIỂU DÃ CHIẾN (HOẶC KIỂU DI ĐỘNG)

Gorman-Rupp 10 Series® pumps are specifically designed for handling solids, corrosive liquids and slurries. They have few moving parts, so maintenance is minimal. If a clog occurs, it can be removed easily through the cover plate opening without the use of any special tools. The 10 Series offers a variety of seal configurations to choose from to handle a number of different liquids.

Specifications

Size	1-1/2" (40 mm), 2" (50 mm), 3" (80 mm), 4" (100 mm), 6" (150 mm)
Max Capacity	6800 GPM (429 lps)
Max Head	175' (53 m)
Max Solids	3" (76 mm)
Max Temperature	160 F (71 C)
Materials of Construction	Aluminum, Cast Iron
Horsepower	3 HP - 101 HP

Đặt hàng

Mô tả

MODELS:

12D-1B20 FT4 ; 12D-GX160 ; 12D1-1B20 FT4 ; 12D1-GX160 ; 12E1-GX160 ; 13A52-GX390 ; 13D-GX270 ; 13D-L70EE ; 13D-L70W FT4 ; 13D-L70W FT4 S/G ; 13D1-GX270 ; 13D1-L70EE ; 13D1-L70EE S/G ; 13D1-L70W FT4 ; 13D1-L70W FT4 S/G ; 13E2-12LD477 S/G ; 13E52-GX390 ; 13G1-1B20 ; 13G1-GX160 ; 14C2-F3L ; 14C2-QSF2.8P FT4 ; 14C20-F3L ; 14C20-QSF2.8P FT4 ; 14D1-CH23 S/G ; 14D1-GX390 ; 14D2-12LD477 S/G ; 14D52-12LD477 S/G ; 14D52-1B50 FT4 S/G ; 14D52-CH23 S/G ; 14D52-GX390 ; 16A2-4045T ; 16A2-F3L ; 16C2-4045T ; 16C2-F4L ; 16C2-F5L ; 16C2-QSF2.8P FT4 ; 16C20-4045T ; 16C20-F4L ; 16C20-F5L ; 16C20-QSF2.8P FT4 ; 16D60-F3L ; 16D60-QSF2.8P FT4 ; 112D60-B-TCD914L6

FEATURES

Solids Handling Impeller

Two-vane, semi-open, solids handling impeller handles up to 3" (76 mm) diameter solids, depending on pump model. Pump out vanes on impeller shroud reduce foreign material buildup behind impeller and reduce pressure on seal and bearings for extended pump life.

Removable Cover Plate

Removable cover plate provides quick and easy access to pump interior without disconnecting piping. Clogs can be removed and pump returned to service in minutes.

Replaceable Wearplate

10 Series pumps feature replaceable wearplates which fasten to the cover plate and can be removed for inspection or service. No expensive castings to replace. 10 Series pumps are available as basic units for connection to customers' power source or may be flex-coupled or V-belt driven by an electric motor. Pumps can also be powered by gasoline or diesel engines.

MODELS

Item	Size	Casing	Impeller / Rotor	Drive	Flange	Seal
12D-1B20 FT4	2 x 2	Aluminum	Cast Iron	Diesel Engine	NPT	Double Grease
12D-GX160	2 x 2	Aluminum	Ductile Iron	Gasoline Engine	NPT	Double Grease
12D1-1B20 FT4	2 x 2	Aluminum	Ductile Iron	Diesel Engine	NPT	Silicon Carbide
12D1-GX160	2 x 2	Aluminum	Ductile Iron	Gasoline Engine	NPT	Silicon Carbide
12E1-GX160	2 x 2	Aluminum	Ductile Iron	Gasoline Engine	NPT	Silicon Carbide
13A52-GX390	3 x 3	Cast Iron	Ductile Iron	Gasoline Engine	NPT	Silicon Carbide
13D-GX270	3 x 3	Aluminum	Ductile Iron	Gasoline Engine	NPT	Double Grease
13D-L70EE	3 x 3	Aluminum	Ductile Iron	Diesel Engine	NPT	Double Grease
13D-L70W FT4	3 x 3	Aluminum	Ductile Iron	Diesel Engine	NPT	Double Grease
13D-L70W FT4 S/G	3 x 3	Aluminum	Ductile Iron	Diesel Engine	NPT	Double Grease
13D1-GX270	3 x 3	Aluminum	Ductile Iron	Gasoline Engine	NPT	Silicon Carbide
13D1-L70EE	3 x 3	Aluminum	Ductile Iron	Diesel Engine	NPT	Silicon Carbide
13D1-L70EE S/G	3 x 3	Aluminum	Ductile Iron	Diesel Engine	NPT	Silicon Carbide
13D1-L70W FT4	3 x 3	Aluminum	Ductile Iron	Diesel Engine	NPT	Silicon Carbide
13D1-L70W FT4 S/G	3 x 3	Aluminum	Ductile Iron	Diesel Engine	NPT	Silicon Carbide
13E2-12LD477 S/G	3 x 3	Cast Iron	Ductile Iron	Diesel Engine	NPT	Double Grease
13E52-GX390	3 x 3	Cast Iron	Ductile Iron	Gasoline Engine	NPT	Silicon Carbide
13G1-1B20	3 x 3	Aluminum	Cast Iron	Diesel Engine	NPT	Silicon Carbide
13G1-GX160	3 x 3	Aluminum	Cast Iron	Gasoline Engine	NPT	Silicon Carbide
14C2-F3L	4 x 4	Cast Iron	Ductile Iron	Diesel Engine	NPT	Double Grease
14C2-QSF2.8P FT4	4 x 4	Cast Iron	Ductile Iron	Diesel Engine	NPT	Double Grease
14C20-F3L	4 x 4	Cast Iron	Ductile Iron	Diesel Engine	NPT	Tungsten Carbide
14C20-QSF2.8P FT4	4 x 4	Cast Iron	Ductile Iron	Diesel Engine	NPT	Tungsten Carbide
14D1-CH23 S/G	4 x 4	Aluminum	Ductile Iron	Gasoline Engine	NPT	Silicon Carbide
14D1-GX390	4 x 4	Aluminum	Ductile Iron	Gasoline Engine	NPT	Silicon Carbide
14D2-12LD477 S/G	4 x 4	Cast Iron	Ductile Iron	Diesel Engine	NPT	Double Grease
14D52-12LD477 S/G	4 x 4	Cast Iron	Ductile Iron	Diesel Engine	NPT	Silicon Carbide
14D52-1B50 FT4 S/G	4 x 4	Cast Iron	Ductile Iron	Diesel Engine	None	Silicon Carbide
14D52-CH23 S/G	4 x 4	Cast Iron	Ductile Iron	Gasoline Engine	NPT	Silicon Carbide
14D52-GX390	4 x 4	Cast Iron	Ductile Iron	Gasoline Engine	NPT	Silicon Carbide
16A2-4045T	6 x 6	Cast Iron	Ductile Iron	Diesel Engine	NPT	Double Grease
16A2-F3L	6 x 6	Cast Iron	Ductile Iron	Diesel Engine	NPT	Double Grease
16C2-4045T	6 x 6	Cast Iron	Ductile Iron	Diesel Engine	NPT	Double Grease
16C2-F4L	6 x 6	Cast Iron	Ductile Iron	Diesel Engine	NPT	Double Grease
16C2-F5L	6 x 6	Cast Iron	Ductile Iron	Diesel Engine	NPT	Double Grease
16C2-QSF2.8P FT4	6 x 6	Cast Iron	Ductile Iron	Diesel Engine	NPT	Double Grease
16C20-4045T	6 x 6	Cast Iron	Ductile Iron	Diesel Engine	NPT	Tungsten Carbide
16C20-F4L	6 x 6	Cast Iron	Ductile Iron	Diesel Engine	NPT	Tungsten Carbide
16C20-F5L	6 x 6	Cast Iron	Ductile Iron	Diesel Engine	NPT	Tungsten Carbide
16C20-QSF2.8P FT4	6 x 6	Cast Iron	Ductile Iron	Diesel Engine	NPT	Tungsten Carbide
16D60-F3L	6 x 6	Cast Iron	Cast Iron	Diesel Engine	NPT	Silicon Carbide
16D60-QSF2.8P FT4	6 x 6	Cast Iron	Cast Iron	Diesel Engine	NPT	Silicon Carbide
112D60-B-TCD914L6	12 x 12	Cast Iron	Ductile Iron	Diesel Engine	NPT	Tungsten Carbide
