Self-Priming Pumps- 80 SERIES® (ENGINE DRIVEN)

80 Series® pumps are designed for non-stop workloads. The straight-in-suction design of these high-efficiency pumps guarantees quick, positive self-priming and allows them to operate at high suction levels than most other self-priming centrifugal pumps. Liquid enters directly into the impeller eye. A suction check valve presents in-line return flow when the pump is shut off. And, because 80 Series pumps have few moving parts, maintenance is minimal. 80 Series pumps are available with self-lubricated mechanical shaft seals.

Specifications

Size	2" (50 mm), 3" (80 mm), 4" (100 mm), 6" (150 mm), 8" (200 mm), 10" (250 mm)
Max Capacity	3200 GPM (202 lps)
Max Head	210' (64 m)
Max Solids	2-1/2" (64 mm)
Max Temperature	160 F (71 C)
Materials of Construction	Aluminum, Cast Iron
Horsepower	3 HP - 103 HP

Đặt hàng

Mô tả

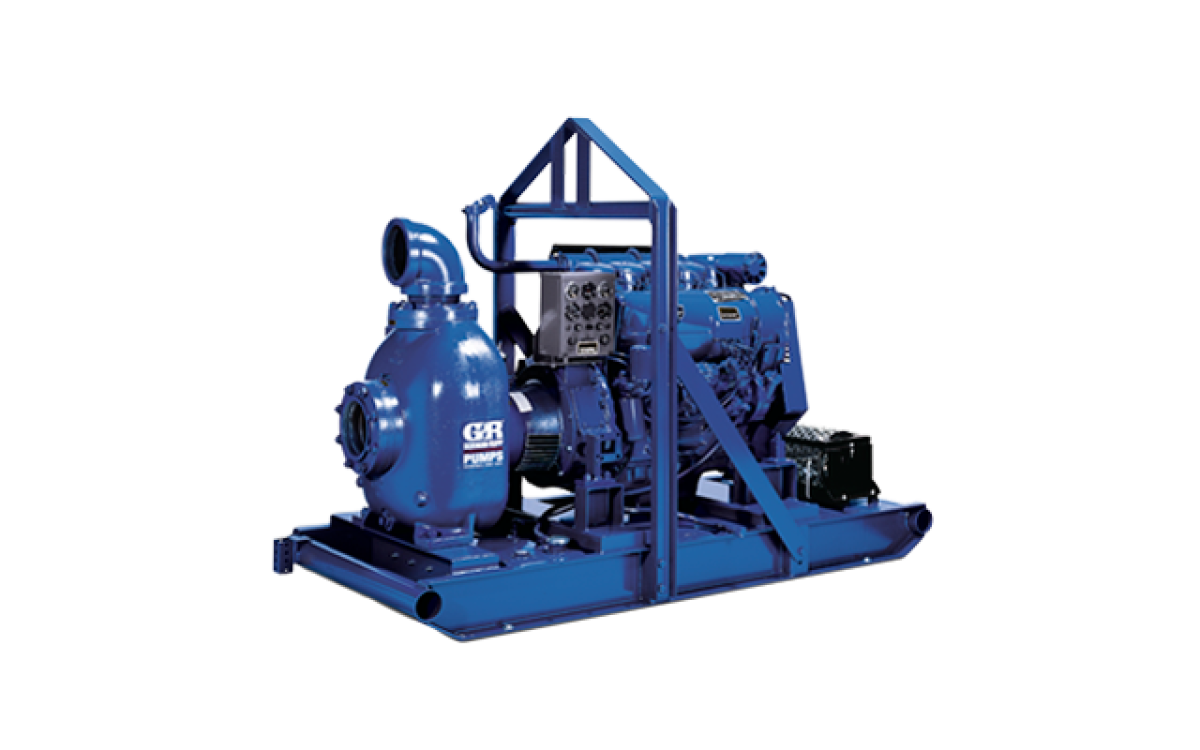

80 Series (Engine Driven) Self-Priming Centrifugal Pumps

FEATURES

Straight-In Suction Design

Exclusive 80 Series pump design provides higher suction lift, increased efficiency and allows pumps to operate at higher suction lifts than most other self-priming centrifugal pumps.

Multiple Seal Options

80 Series pumps are available with Gorman-Rupp grease seals or self-lubricated mechanical seals.

High Efficiency Impeller

Multi-vane open impeller is designed for high efficiency and will pass up to 2-3/8" (60 mm) solids, depending on pump model.

Replaceable Wearplate

Replaceable wearplate allows for inexpensive maintenance during the life of the pump. No expensive castings to replace. Extra-thick construction for life.

MODELS

Item	Size	Casing	Impeller / Rotor	Drive	Flange	Seal
82C1-1B20	2 x 2	Aluminum	Aluminum	Diesel Engine	NPT	Silicon Carbide
82C1-GX160	2 x 2	Aluminum	Aluminum	Gasoline Engine	NPT	Silicon Carbide
82D-GX160	2 x 2	Aluminum	Cast Iron	Gasoline Engine	NPT	Double Grease
82D1-GX160	2 x 2	Aluminum	Ductile Iron	Gasoline Engine	NPT	Silicon Carbide
82D2-GX160	2 x 2	Cast Iron	Cast Iron	Gasoline Engine	NPT	Double Grease
82D52-GX160	2 x 2	Cast Iron	Cast Iron	Gasoline Engine	NPT	Silicon Carbide
82E-GX270	2 x 2	Aluminum	Cast Iron	Gasoline Engine	NPT	Double Grease
82E1-L100W FT4-X	2 x 2	Aluminum	Aluminum	Diesel Engine	NPT	Carbon/Ceramic
82E2-GX270	2 x 2	Cast Iron	Cast Iron	Gasoline Engine	NPT	Double Grease
83A2-GX270	3 x 3	Cast Iron	Cast Iron	Gasoline Engine	NPT	Double Grease
83B52-GX390	3 x 3	Cast Iron	Cast Iron	Gasoline Engine	NPT	Silicon Carbide
84A2-F3L	4 x 4	Cast Iron	Cast Iron	Diesel Engine	NPT	Double Grease
84A2-QSF2.8P FT4	4 x 4	Cast Iron	Cast Iron	Diesel Engine	NPT	Double Grease
86A2-4024H	6 x 6	Cast Iron	Cast Iron	Diesel Engine	ASA	Double Grease
86A2-F3L	6 x 6	Cast Iron	Cast Iron	Diesel Engine	NPT	Double Grease
86A2-F4L	6 x 6	Cast Iron	Cast Iron	Diesel Engine	NPT	Double Grease
86A2-QSF2.8P FT4	6 x 6	Cast Iron	Cast Iron	Diesel Engine	NPT	Double Grease
