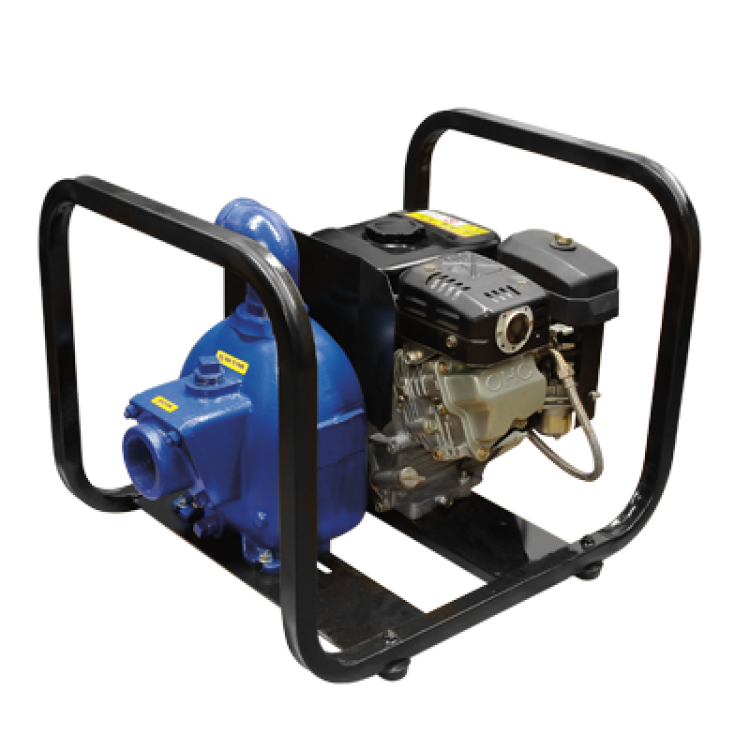

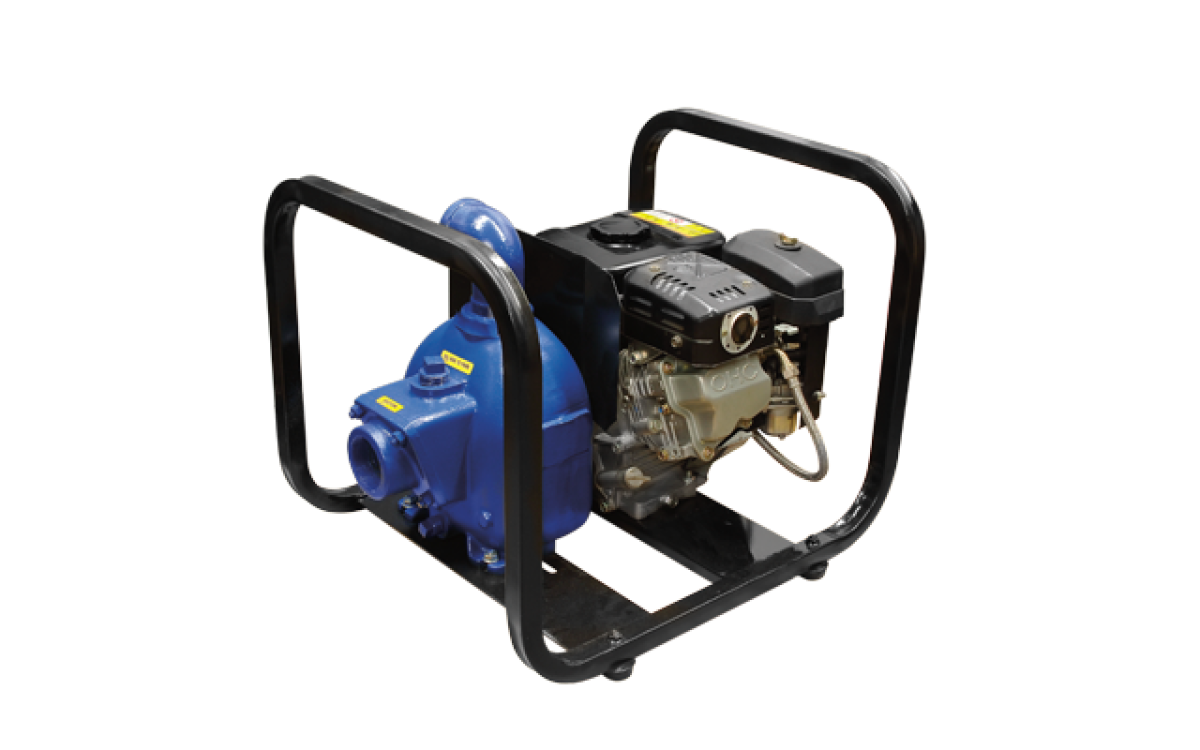

Self-Priming Pumps- SHIELD-A-SPARK

Gorman-Rupp Shield-A-Spark self-priming centrifugal pumps are the safest approach to handling flammable liquids with an engine driven pump. Pump volute and intermediate are constructed of lightweight aluminum. Steel wearplates are replaceable. Mechanical shaft seals have carbon and Ni-resist wearing surfaces. Elastomers are Viton®. Gasoline engine unit features dependable, rugged military or aircraft type spark plug which is radio suppressed and prevents spark gap jumping. Shielded ignition wire provides enclosed path for high tension spark. Sealed toggle ignition switch is safe, spark free. Spark-arresting muffler is designed to retard both spark and flame.


Size2" (50 mm), 3" (80 mm)
Max Capacity400 GPM (25 lps)
Max Head140' (43 m)
Max Solids0-3/4" (19 mm)
Max Temperature160 F (71 C)
Materials of ConstructionAluminum, Cast Iron
Horsepower3 HP - 9 HP
Đặt hàng

Liên hệ đặt mua

Shield-A-Spark  Self-Priming Centrifugal Pumps


Shield-A-Spark Flyer


ItemSizeCasingImpeller / RotorDriveFlangeSeal
82D1-1B20 FT4-X2 x 2Cast IronAluminumDiesel Engine XPNPTCarbon/Ni-Resist
83A1-L100EE-X3 x 3AluminumAluminumDiesel Engine XPASACarbon/Ceramic
83A1-L100W FT4-X3 x 3AluminumAluminumDiesel Engine XPNPTCarbon/Ceramic
