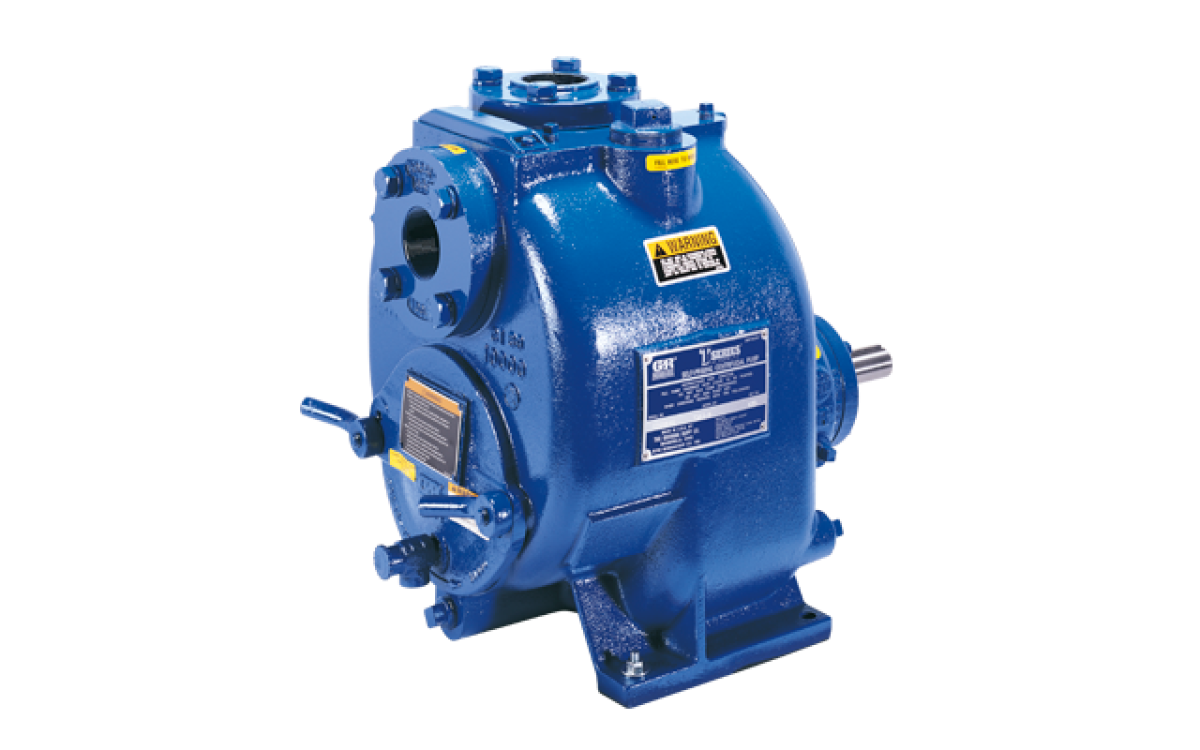

Self-Priming Pumps-T SERIES® (MÁY BƠM NƯỚC THẢI)

The self-priming centrifugal T Series® is the standard for industrial and sewage applications. The heavy duty construction and easy-to-service design have made Gorman-Rupp T Series pumps the standard in the industry. The combination of different sized pumps, impeller trims and speed variations ensure that the correct capacity pump will be matched to the exact requirements of your system, whether it's a small sub-division or a large waste collection system. These pumps feature a large volute design that allows them to reprime automatically in a completely open system without the need for suction or discharge check valves - and they can do it with the pump casing only partially filled with liquid and a completely dry suction line.

Specifications

Size	2" (50 mm), 3" (80 mm), 4" (100 mm), 6" (150 mm), 8" (200 mm), 10" (250 mm)
Max Capacity	3400 GPM (215 lps)
Max Head	130' (40 m)
Max Solids	3" (76 mm)
Max Temperature	160 F (71 C)
Materials of Construction	Cast Iron, CD4MCu, Stainless Steel

Đặt hàng

Mô tả

T Series Self-Priming Centrifugal Pumps

FEATURES

Solids Handling Impeller

Two-vane, semi-open, solids handling impeller handles up to 3" (76 mm) diameter solids, depending on pump model. Pump out vanes on impeller shroud reduce foreign material buildup behind impeller and reduce pressure on seal and bearings for extended pump life.

Exclusive Abrasion-Resistant Seal

Exclusive double-floating, self-aligning oil lubricated mechanical cartridge seal with stationary and rotating face of silicon carbide is specifically designed for abrasive industrial wastewater service.

Removable Cover Plate

Removable cover plate provides quick and easy access to pump interior without disconnecting piping. Clogs can be removed and pump returned to service in minutes. Impeller, seal, wearplate and flap valve can also be accessed through cover plate opening for inspection or service.

Replaceable Wearplate

T Series pumps feature replaceable wearplates which fasten to the cover plate and can easily be removed for inspection or service. No expensive castings to replace.

Removable Rotating Assembly

Removal of rotating assembly allows easy inspection of pump shaft or bearings without disturbing pump casing or piping. On most models, simply remove four bolts from the back of the pump and the rotating assembly slides out.

Drive Variations

T Series Pumps are available as basic units for connection to customers' power source or may be flex-coupled or V-belt driven by an electric motor. Pumps may also be powered by gasoline or diesel engines. Electric motor driven pumps with "standby" engine power are also available.

RESOURCES

T2 Pump F

MODELS

Item	Size	Casing	Impeller / Rotor	Drive	Flange	Seal
T2A3-B	2 x 2	Cast Iron	Ductile Iron	Basic	NPT	Tungsten Carbide
T2A3-B /F	2 x 2	Cast Iron	Ductile Iron	Basic	ASA Spool	Tungsten Carbide
T2A3-B /FM	2 x 2	Cast Iron	Ductile Iron	Basic	DIN Spool	Tungsten Carbide
T2A60-B	2 x 2	Cast Iron	Ductile Iron	Basic	NPT	Silicon Carbide
T2A60-B /F	2 x 2	Cast Iron	Ductile Iron	Basic	ASA Spool	Silicon Carbide
T2A60-B /FM	2 x 2	Cast Iron	Ductile Iron	Basic	DIN Spool	Silicon Carbide
T2A61-B	2 x 2	Cast Iron	Stainless Steel	Basic	NPT	Silicon Carbide
T2A61-B /F	2 x 2	Cast Iron	Stainless Steel	Basic	ASA Spool	Silicon Carbide
T2A61-B /FM	2 x 2	Cast Iron	Stainless Steel	Basic	DIN Spool	Silicon Carbide
T2A65-B	2 x 2	CD4MCu	CD4MCu	Basic	NPT	Silicon Carbide
T2A65-B /F	2 x 2	CD4MCu	CD4MCu	Basic	ASA Spool	Silicon Carbide
T2A65-B /FM	2 x 2	CD4MCu	CD4MCu	Basic	DIN Spool	Silicon Carbide
T2A71-B	2 x 2	Cast Iron	ADI	Basic	NPT	Silicon Carbide
T2A71-B /F	2 x 2	Cast Iron	ADI	Basic	ASA Spool	Silicon Carbide
T2A71-B /FM	2 x 2	Cast Iron	ADI	Basic	DIN Spool	Silicon Carbide
T3A3-B	3 x 3	Cast Iron	Ductile Iron	Basic	NPT	Tungsten Carbide
T3A3-B /F	3 x 3	Cast Iron	Ductile Iron	Basic	ASA Spool	Tungsten Carbide
T3A3-B /FM	3 x 3	Cast Iron	Ductile Iron	Basic	DIN Spool	Tungsten Carbide
T4A3-B	4 x 4	Cast Iron	Ductile Iron	Basic	NPT	Tungsten Carbide
T4A3-B /F	4 x 4	Cast Iron	Ductile Iron	Basic	ASA Spool	Tungsten Carbide
T4A3-B /FM	4 x 4	Cast Iron	Ductile Iron	Basic	DIN Spool	Tungsten Carbide
T6A3-B	6 x 6	Cast Iron	Ductile Iron	Basic	NPT	Tungsten Carbide
T6A3-B /F	6 x 6	Cast Iron	Ductile Iron	Basic	ASA Spool	Tungsten Carbide
T6A3-B /FM	6 x 6	Cast Iron	Ductile Iron	Basic	DIN Spool	Tungsten Carbide
