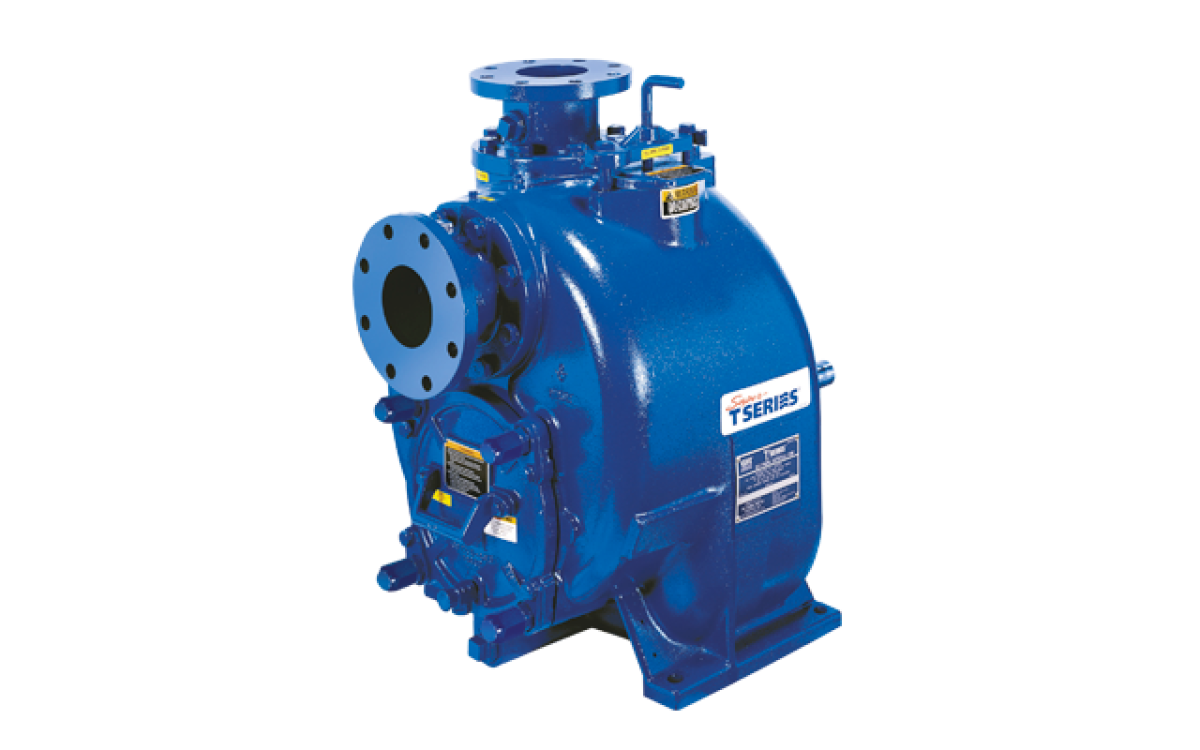

Self-Priming Pumps- SUPER T SERIES®

Designed for economical, trouble-free operation, the superior solids-handling capabilities of Super T Series® pumps make them ideally suited for a variety of applications including solids-laden liquids and slurries. The large volute design allows automatic repriming in a completely open system without the need for suction or discharge check valves.
Eradicator Solids Management System
The Eradicator system features an aggressive self-cleaning wearplate incorporating a number of notches and grooves, as well as a patent-pending lacerating tooth, that helps break up stringy materials and pass them through the pump without impacting performance or interrupting service. A special back cover includes a patented lightweight inspection cover that can easily be removed if it is necessary to inspect the impeller. The innovative design greatly reduces troublesome clogging and expensive downtime.

Specifications

Size3" (80 mm), 4" (100 mm), 6" (150 mm), 8" (200 mm), 10" (250 mm)
Max Capacity3400 GPM (215 lps)
Max Head130' (40 m)
Max Solids3" (76 mm)
Materials of ConstructionCast Iron, CD4MCu, Ductile Iron, Stainless Steel
Đặt hàng
X

Liên hệ đặt mua

Super T Series Self-Priming Centrifugal Pumps

FEATURES

External Shimless Adjustment

F_SuperTSeries_1.jpgThe external shimless cover plate allows for easy adjustment of the clearance between the impeller and the wearplate. This process eliminates the need to realign belts, couplings or other drive components. In turn, the working height of the seal assembly and impeller back clearance are not disturbed. The unique collar and adjusting screw allow for incremental adjustments of the wearplate clearance with the turn of a hand. Once adjustments have been made, the collar locks in place maintaining the clearance setting even if the cover plate is removed. This design doubles the life of the impeller and wearplate, and keeps the pump operating at maximum efficiency.

Solids Handling

F_SuperTSeries_2.jpgTwo-vane, semi-open solids handling impeller handles up to 3" (75 mm) diameter solids, depending on pump model. Pump out vanes on impeller shroud reduce foreign material buildup behind impeller and reduce pressure on seal and bearings.  Multi-vane impellers are available in “B” hydraulics models for higher head applications with limited solids.

Exclusive Gorman-Rupp Cartridge Seal

F_SuperTSeries_3.jpgExclusive double-floating, self-aligning, oil lubricated mechanical cartridge seal with stationary and rotating face of silicon carbide or tungsten titanium carbide is specifically designed for abrasive and/or trash handling service.  Seal is available on 3", 4" and 6" (75 mm, 100 mm and 150 mm) pump models. Optional seals are also available.

Removable Cover Plate with "Easy-Grip" Handle

F_SuperTSeries_4.jpgThe removable cover plate with "easy-grip" handle and pusher bolt capability provides quick and easy access to the pump interior without disconnecting piping. Clogs can be removed and the pump can be returned to service in minutes. Impeller, seal, wearplate and flap valve can also be accessed through coverlet opening for inspection or service.

Removable Rotating Assembly

F_SuperTSeries_5.jpgInspection of pump shaft or bearings is easily accomplished without disturbing pump casing or piping by removing rotating assembly. Simply remove four bolts from the back of the pump and the assembly slides out.  This allows for quick and easy installation of a spare rotating assembly, resulting in less downtime.

Dual Protection of Bearings

F_SuperTSeries_6.jpgAn atmospheric barrier and two lip seals provide protection of the pump bearings.  This allows for quick and easy external monitoring of the bearing cavity.

Replaceable Wearplate

Super T Series pumps feature replaceable wearplates which fasten to the cover plate and can easily be removed for inspection or serice.  No expensive castings to replace.

RESOURCES

Super T Series Maintenance Video Pt. 1: Intro and Safety
Super T Series Maintenance Video Pt. 2: Back Cover & Wear Plate Removal
Super T Series Maintenance Video Pt. 3: Suction Check Valve Removal
Super T Series Maintenance Video Pt. 4: Rotating Assembly Removal
Super T Series Maintenance Video Pt. 5: Cartridge Seal Removal
Super T Series Maintenance Video Pt. 6: Shaft and Bearing Removal
Super T Series Maintenance Video Pt. 7: Cartridge Seal Installation
Super T Series Maintenance Video Pt. 8: Impeller Installation and Adjustment
Super T Series Maintenance Video Pt. 9: Rotating Assembly Installation
Super T Series Maintenance Video Pt. 10: Back Cover Installation
Super T Series Maintenance Video Pt. 11: Pressure Relieve Valve Maintenance
Super T Series Brochure
Eradicator Upgrade Kit Flyer
Eradicator Solids Management System Video

MODELS

ItemSizeCasingImpeller / RotorDriveFlangeSeal
T3A3S-B3 x 3Cast IronDuctile IronBasicNPTTungsten Carbide
T3A3S-B /F3 x 3Cast IronDuctile IronBasicASA SpoolTungsten Carbide
T3A3S-B /FM3 x 3Cast IronDuctile IronBasicDIN SpoolTungsten Carbide
T3A60S-B3 x 3Cast IronDuctile IronBasicASASilicon Carbide
T3A60S-B /F3 x 3Cast IronDuctile IronBasicASA SpoolSilicon Carbide
T3A60S-B /FM3 x 3Cast IronDuctile IronBasicDIN SpoolSilicon Carbide
T3A61S-B3 x 3Cast IronStainless SteelBasicNPTSilicon Carbide
T3A61S-B /F3 x 3Cast IronStainless SteelBasicASA SpoolSilicon Carbide
T3A61S-B /FM3 x 3Cast IronStainless SteelBasicDIN SpoolSilicon Carbide
T3A65S-B3 x 3CD4MCuCD4MCuBasicNPTSilicon Carbide
T3A65S-B /F3 x 3CD4MCuCD4MCuBasicASA SpoolSilicon Carbide
T3A65S-B /FM3 x 3CD4MCuCD4MCuBasicDIN SpoolSilicon Carbide
T3A71S-B3 x 3Cast IronADIBasicNPTSilicon Carbide
T3A71S-B /F3 x 3Cast IronADIBasicASA SpoolSilicon Carbide
T3A71S-B /FM3 x 3Cast IronADIBasicDIN SpoolSilicon Carbide
T3A75S-B3 x 3ADIADIBasicNPTSilicon Carbide
T3A75S-B /F3 x 3ADIADIBasicASA SpoolSilicon Carbide
T3A75S-B /FM3 x 3ADIADIBasicDIN SpoolSilicon Carbide
T3C60SC-B3 x 3Cast IronDuctile IronBasicNPTSilicon Carbide
T3C60SC-B /F3 x 3Cast IronDuctile IronBasicASA SpoolSilicon Carbide
T3C60SC-B /FM3 x 3Cast IronDuctile IronBasicDIN SpoolSilicon Carbide
T3C71SC-B3 x 3Cast IronADIBasicNPTSilicon Carbide
T3C71SC-B /F3 x 3Cast IronADIBasicASA SpoolSilicon Carbide
T3C71SC-B /FM3 x 3Cast IronADIBasicDIN SpoolSilicon Carbide
T4A3S-B4 x 4Cast IronDuctile IronBasicNPTTungsten Carbide
T4A3S-B /F4 x 4Cast IronDuctile IronBasicASA SpoolTungsten Carbide
T4A3S-B /FM4 x 4Cast IronDuctile IronBasicDIN SpoolTungsten Carbide
T4A60S-B4 x 4Cast IronDuctile IronBasicNPTSilicon Carbide
T4A60S-B /F4 x 4Cast IronDuctile IronBasicASA SpoolSilicon Carbide
T4A60S-B /FM4 x 4Cast IronDuctile IronBasicDIN SpoolSilicon Carbide
T4A61S-B4 x 4Cast IronStainless SteelBasicNPTSilicon Carbide
T4A61S-B /F4 x 4Cast IronStainless SteelBasicASA SpoolSilicon Carbide
T4A61S-B /FM4 x 4Cast IronStainless SteelBasicDIN SpoolSilicon Carbide
T4A65S-B4 x 4CD4MCuCD4MCuBasicNPTSilicon Carbide
T4A65S-B /F4 x 4CD4MCuCD4MCuBasicASA SpoolSilicon Carbide
T4A65S-B /FM4 x 4CD4MCuCD4MCuBasicDIN SpoolSilicon Carbide
T4A71S-B4 x 4Cast IronADIBasicNPTSilicon Carbide
T4A71S-B /F4 x 4Cast IronADIBasicASA SpoolSilicon Carbide
T4A71S-B /FM4 x 4Cast IronADIBasicDIN SpoolSilicon Carbide
T4A75S-B4 x 4ADIADIBasicNPTSilicon Carbide
T4A75S-B /F4 x 4ADIADIBasicASA SpoolSilicon Carbide
T4A75S-B /FM4 x 4ADIADIBasicDIN SpoolSilicon Carbide
T4B3S-B4 x 4Cast IronDuctile IronBasicNPTTungsten Carbide
T4B3S-B /F4 x 4Cast IronDuctile IronBasicASA SpoolTungsten Carbide
T4B3S-B /FM4 x 4Cast IronDuctile IronBasicDIN SpoolTungsten Carbide
T4B60S-B4 x 4Cast IronDuctile IronBasicNPTSilicon Carbide
T4B60S-B /F4 x 4Cast IronDuctile IronBasicASA SpoolSilicon Carbide
T4B60S-B /FM4 x 4Cast IronDuctile IronBasicDIN SpoolSilicon Carbide
T4B61S-B4 x 4Cast IronStainless SteelBasicNPTSilicon Carbide
T4B61S-B /F4 x 4Cast IronStainless SteelBasicASA SpoolSilicon Carbide
T4B61S-B /FM4 x 4Cast IronStainless SteelBasicDIN SpoolSilicon Carbide
T4B65S-B4 x 4CD4MCuCD4MCuBasicNPTSilicon Carbide
T4B65S-B /F4 x 4CD4MCuCD4MCuBasicASA SpoolSilicon Carbide
T4B65S-B /FM4 x 4CD4MCuCD4MCuBasicDIN SpoolSilicon Carbide
T4C60SC-B4 x 4Cast IronDuctile IronBasicNPTSilicon Carbide
T4C60SC-B /F4 x 4Cast IronDuctile IronBasicASA SpoolSilicon Carbide
T4C60SC-B /FM4 x 4Cast IronDuctile IronBasicDIN SpoolSilicon Carbide
T4C71SC-B4 x 4Cast IronADIBasicNPTSilicon Carbide
T4C71SC-B /F4 x 4Cast IronADIBasicASA SpoolSilicon Carbide
T4C71SC-B /FM4 x 4Cast IronADIBasicDIN SpoolSilicon Carbide
T6A75S-B6 x 6ADIADIBasicNPTSilicon Carbide
T6A75S-B /F6 x 6ADIADIBasicASA SpoolSilicon Carbide
T6A75S-B /FM6 x 6ADIADIBasicDIN SpoolSilicon Carbide
T6B3S-B6 x 6Cast IronDuctile IronBasicNPTTungsten Carbide
T6B3S-B /F6 x 6Cast IronDuctile IronBasicASA SpoolTungsten Carbide
T6B3S-B /FM6 x 6Cast IronDuctile IronBasicDIN SpoolTungsten Carbide
T6B60S-B6 x 6Cast IronDuctile IronBasicNPTSilicon Carbide
T6B60S-B /F6 x 6Cast IronDuctile IronBasicASA SpoolSilicon Carbide
T6B60S-B /FM6 x 6Cast IronDuctile IronBasicDIN SpoolSilicon Carbide
T6B61S-B6 x 6Cast IronCD4MCuBasicNPTSilicon Carbide
T6B61S-B /F6 x 6Cast IronCD4MCuBasicASA SpoolSilicon Carbide
T6B61S-B /FM6 x 6Cast IronCD4MCuBasicDIN SpoolSilicon Carbide
T6C60SC-B6 x 6Cast IronDuctile IronBasicNPTSilicon Carbide
T6C60SC-B /F6 x 6Cast IronDuctile IronBasicASA SpoolSilicon Carbide
T6C60SC-B /FM6 x 6Cast IronDuctile IronBasicDIN SpoolSilicon Carbide
T6C71SC-B6 x 6Cast IronADIBasicNPTSilicon Carbide
T6C71SC-B /F6 x 6Cast IronADIBasicASA SpoolSilicon Carbide
T6C71SC-B /FM6 x 6Cast IronADIBasicDIN SpoolSilicon Carbide
T8A3S-B8 x 8Cast IronDuctile IronBasicNPTTungsten Carbide
T8A3S-B /F8 x 8Cast IronDuctile IronBasicASA SpoolTungsten Carbide
T8A3S-B /FM8 x 8Cast IronDuctile IronBasicDIN SpoolTungsten Carbide
T8A60S-B8 x 8Cast IronDuctile IronBasicNPTSilicon Carbide
T8A60S-B /F8 x 8Cast IronDuctile IronBasicASA SpoolSilicon Carbide
T8A60S-B /FM8 x 8Cast IronDuctile IronBasicDIN SpoolSilicon Carbide
T8A61S-B8 x 8Cast IronStainless SteelBasicNPTSilicon Carbide
T6A3S-B6 x 6Cast IronDuctile IronBasicNPTTungsten Carbide
T6A3S-B /F6 x 6Cast IronDuctile IronBasicASA SpoolTungsten Carbide
T6A3S-B /FM6 x 6Cast IronDuctile IronBasicDIN SpoolTungsten Carbide
T6A60S-B6 x 6Cast IronDuctile IronBasicNPTSilicon Carbide
T6A60S-B /F6 x 6Cast IronDuctile IronBasicASA SpoolSilicon Carbide
T6A60S-B /FM6 x 6Cast IronDuctile IronBasicDIN SpoolSilicon Carbide
T6A61S-B6 x 6Cast IronStainless SteelBasicNPTSilicon Carbide
T6A61S-B /F6 x 6Cast IronStainless SteelBasicASA SpoolSilicon Carbide
T6A61S-B /FM6 x 6Cast IronStainless SteelBasicDIN SpoolSilicon Carbide
T6A65S-B6 x 6CD4MCuCD4MCuBasicNPTSilicon Carbide
T6A65S-B /F6 x 6CD4MCuCD4MCuBasicASA SpoolSilicon Carbide
T6A65S-B /FM6 x 6CD4MCuCD4MCuBasicDIN SpoolSilicon Carbide
T6A71S-B6 x 6Cast IronADIBasicNPTSilicon Carbide
T6A71S-B /F6 x 6Cast IronADIBasicASA SpoolSilicon Carbide
T6A71S-B /FM6 x 6Cast IronADIBasicDIN SpoolSilicon Carbide
T8A61S-B /F8 x 8Cast IronStainless SteelBasicASA SpoolSilicon Carbide
T8A61S-B /FM8 x 8Cast IronStainless SteelBasicDIN SpoolSilicon Carbide
T8A65S-B8 x 8CD4MCuCD4MCuBasicNPTSilicon Carbide
T8A65S-B /F8 x 8CD4MCuCD4MCuBasicASA SpoolSilicon Carbide
T8A65S-B /FM8 x 8CD4MCuCD4MCuBasicDIN SpoolSilicon Carbide
T8A71S-B8 x 8Cast IronADIBasicNPTSilicon Carbide
T8A71S-B /F8 x 8Cast IronADIBasicASA SpoolSilicon Carbide
T8A71S-B /FM8 x 8Cast IronADIBasicDIN SpoolSilicon Carbide
T8C60SC-B8 x 8Cast IronDuctile IronBasicNPTSilicon Carbide
T8C60SC-B /F8 x 8Cast IronDuctile IronBasicASA SpoolSilicon Carbide
T8C60SC-B /FM8 x 8Cast IronDuctile IronBasicDIN SpoolSilicon Carbide
T8C71SC-B8 x 8Cast IronADIBasicNPTSilicon Carbide
T8C71SC-B /F8 x 8Cast IronADIBasicASA SpoolSilicon Carbide
T8C71SC-B /FM8 x 8Cast IronADIBasicDIN SpoolSilicon Carbide
T10A3S-B10 x 10Cast IronDuctile IronBasicASATungsten Carbide
T10A3S-B /FM10 x 10Cast IronDuctile IronBasicDIN SpoolTungsten Carbide
T10A60S-B10 x 10Cast IronDuctile IronBasicASASilicon Carbide
T10A60S-B /FM10 x 10Cast IronDuctile IronBasicDIN SpoolSilicon Carbide
T10A61S-B10 x 10Cast IronStainless SteelBasicASASilicon Carbide
T10A61S-B /FM10 x 10Cast IronStainless SteelBasicDIN SpoolSilicon Carbide
T10A65S-B10 x 10CD4MCuCD4MCuBasicASASilicon Carbide
T10A65S-B /FM10 x 10CD4MCuCD4MCuBasicDIN SpoolSilicon Carbide
T10A71S-B10 x 10Cast IronADIBasicASASilicon Carbide
T10A71S-B /FM10 x 10Cast IronADIBasicDIN SpoolSilicon Carbide
T10C60SC-B10 x 10Cast IronDuctile IronBasicASASilicon Carbide
T10C60SC-B /FM10 x 10Cast IronDuctile IronBasicDIN SpoolSilicon Carbide
T10C71SC-B10 x 10Cast IronADIBasicASASilicon Carbide
T10C71SC-B /FM10 x 10Cast IronADIBasicDIN SpoolSilicon Carbide
