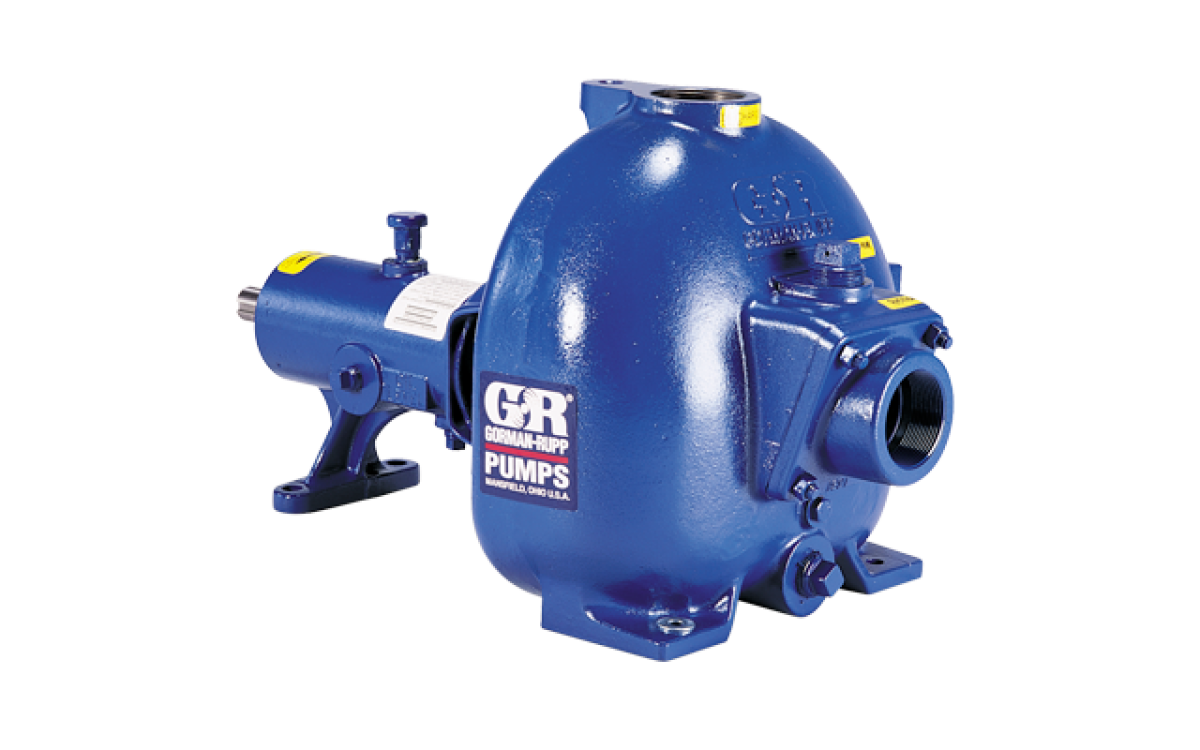

Self-Priming Pumps- 80 SERIES®

80 Series® pumps are designed for non-stop workloads. The straight-in-suction design of these efficient pumps guarantees quick, positive self-priming and allows them to operate at higher suction levels than most other self-priming centrifugal pumps. Liquid enters directly into the impeller eye. A suction check valve prevents in-line return flow when the pump is shut off.

Specifications

Size	1-1/4" (30 mm), 1-1/2" (40 mm), 2" (50 mm), 3" (80 mm), 4" (100 mm), 6" (150 mm), 8" (200 mm), 10" (250 mm)
Max Capacity	2800 GPM (177 lps)
Max Head	205' (62 m)
Max Solids	2-1/2" (64 mm)
Max Temperature	160 F (71 C)
Materials of Construction	Cast Iron, Ductile Iron, Stainless Steel

Đặt hàng

Mô tả

80 Series Self-Priming Centrifugal Pumps

FEATURES

Straight-In Suction Design

Exclusive 80 Series pump design provides higher suction lift, increased efficiency and allows pumps to operate at higher suction lifts than most other self-priming centrifugal pumps.

Multiple Seal Options

80 Series pumps are available with single and double seal options, grease, oil, and self-lubricated designs, depending on pump application. Carbon/ni-resist, carbon/ceramic, sintered bronze/steel, silicon carbide, and tungsten carbide seal faces. Fluorocarbon, Buna, and PTFE elastomers.

High Efficiency Impeller

F_80Series_3 copy.jpg Multi-vane open impeller is designed for high efficient. Impeller will handle up to 2 3/8" (60 mm) solids, depending on pump model.

Replaceable Wearplate

Replaceable wearplate provides maximum operating efficiency at all times. No expensive castings to replace. Extra-thick construction for life.

Drive Variations

80 Series pumps are available as basic units for connection to customers' power source or may be flex coupled, close coupled, or V-belt driven by an electric motor. Pumps can also be powered by gasoline or diesel engines.

RESOURCES

80 Series Pump Brochure

MODELS

Item	Size	Casing	Impeller / Rotor	Drive	Flange	Seal
81 1/4A3-B	1.25 x 1.25	Cast Iron	Copper Alloy	Basic	NPT	Carbon/Ni-Resist
81 1/4A3-E.33 3P	1.25 x 1.25	Cast Iron	Copper Alloy	Electric Motor	NPT	Carbon/Ni-Resist
81 1/4A3-X.50 1P	1.25 x 1.25	Cast Iron	Copper Alloy	Electric Motor	NPT	Carbon/Ni-Resist
81 1/4A3-X.50 3P	1.25 x 1.25	Cast Iron	Copper Alloy	Electric Motor	NPT	Carbon/Ni-Resist
81 1/4A52-B	1.25 x 1.25	Cast Iron	Cast Iron	Basic	NPT	Silicon Carbide
81 1/4B3-E.33 1P	1.25 x 1.25	Cast Iron	Copper Alloy	Electric Motor	NPT	Carbon/Ni-Resist
81 1/2A2-B	1.5 x 1.5	Cast Iron	Cast Iron	Basic	NPT	Double Grease
81 1/2A3-B	1.5 x 1.5	Cast Iron	Ductile Iron	Basic	NPT	Carbon/Ceramic
81 1/2A52-B	1.5 x 1.5	Cast Iron	Ductile Iron	Basic	NPT	Silicon Carbide
81 1/2B2-B	1.5 x 1.5	Cast Iron	Cast Iron	Basic	NPT	Double Grease
81 1/2B3-B	1.5 x 1.5	Cast Iron	Cast Iron	Basic	NPT	Carbon/Ceramic
81 1/2B52-B	1.5 x 1.5	Cast Iron	Cast Iron	Basic	NPT	Silicon Carbide
81 1/2D3-B	1.5 x 1.5	Cast Iron	Copper Alloy	Basic	NPT	Carbon/Ni-Resist
81 1/2D3-E.50 1P	1.5 x 1.5	Cast Iron	Copper Alloy	Electric Motor	NPT	Carbon/Ni-Resist
81 1/2D3-E.50 3P	1.5 x 1.5	Cast Iron	Copper Alloy	Electric Motor	NPT	Carbon/Ni-Resist
81 1/2D3-E.75 1P	1.5 x 1.5	Cast Iron	Copper Alloy	Electric Motor	NPT	Carbon/Ni-Resist
81 1/2D3-E.75 3P	1.5 x 1.5	Cast Iron	Copper Alloy	Electric Motor	NPT	Carbon/Ni-Resist
81 1/2D3-X.75 1P	1.5 x 1.5	Cast Iron	Copper Alloy	Electric Motor	NPT	Carbon/Ni-Resist
81 1/2D3-X.75 3P	1.5 x 1.5	Cast Iron	Copper Alloy	Electric Motor	ASA	Carbon/Ni-Resist
81 1/2D3-X1 1P	1.5 x 1.5	Cast Iron	Copper Alloy	Electric Motor	NPT	Carbon/Ni-Resist
81 1/2D3-X1 3P	1.5 x 1.5	Cast Iron	Copper Alloy	Electric Motor	NPT	Carbon/Ni-Resist
81 1/2D52-B	1.5 x 1.5	Cast Iron	Cast Iron	Basic	NPT	Silicon Carbide
81 1/2E3-B	1.5 x 1.5	Cast Iron	Copper Alloy	Basic	NPT	Carbon/Ni-Resist
81 1/2E3-E1 1P	1.5 x 1.5	Cast Iron	Copper Alloy	Electric Motor	NPT	Carbon/Ni-Resist
81 1/2E3-E1 3P	1.5 x 1.5	Cast Iron	Copper Alloy	Electric Motor	NPT	Carbon/Ni-Resist
81 1/2E3-X1.5 1P	1.5 x 1.5	Cast Iron	Copper Alloy	Electric Motor	NPT	Carbon/Ni-Resist
81 1/2E3-X1.5 3P	1.5 x 1.5	Cast Iron	Copper Alloy	Electric Motor	NPT	Carbon/Ni-Resist
81 1/2E52-B	1.5 x 1.5	Cast Iron	Cast Iron	Electric Motor	NPT	Silicon Carbide
81 1/2E9-B	1.5 x 1.5	Stainless Steel	Stainless Steel	Electric Motor	NPT	Carbon/Ceramic
81 1/2P47A-B	1.5 x 1.5	Plastic	Plastic	Basic	NPT	Carbon/Ceramic
81 1/2P47A-E2 1P	1.5 x 1.5	Plastic	Plastic	Electric Motor	NPT	Carbon/Ceramic
81 1/2P47A-E2 3P	1.5 x 1.5	Plastic	Plastic	Electric Motor	NPT	Carbon/Ceramic
82D2-B	2 x 2	Cast Iron	Cast Iron	Basic	NPT	Double Grease
82D3-B	2 x 2	Cast Iron	Ductile Iron	Basic	NPT	Carbon/Ceramic
82D52-B	2 x 2	Cast Iron	Ductile Iron	Basic	NPT	Silicon Carbide
82E2-B	2 x 2	Cast Iron	Cast Iron	Basic	NPT	Double Grease
82E20-B	2 x 2	Cast Iron	Cast Iron	Basic	NPT	Tungsten Carbide
82E3-B	2 x 2	Cast Iron	Cast Iron	Basic	NPT	Carbon/Ceramic
82E52-B	2 x 2	Cast Iron	Cast Iron	Basic	NPT	Silicon Carbide
82H2-B	2 x 2	Cast Iron	Cast Iron	Basic	NPT	Double Grease
82H20-B	2 x 2	Cast Iron	Cast Iron	Basic	NPT	Tungsten Carbide
82H3-B	2 x 2	Cast Iron	Cast Iron	Basic	NPT	Carbon/Ni-Resist
82H52-B	2 x 2	Cast Iron	Cast Iron	Basic	NPT	Silicon Carbide
82H65-B	2 x 2	CD4MCu	CD4MCu	Basic	NPT	Silicon Carbide
83A2-B	3 x 3	Cast Iron	Cast Iron	Basic	ASA	Double Grease
83A3-B	3 x 3	Cast Iron	Cast Iron	Basic	NPT	Carbon/Ceramic
83A52-B	3 x 3	Cast Iron	Cast Iron	Basic	NPT	Silicon Carbide
83B2-B	3 x 3	Cast Iron	Cast Iron	Basic	NPT	Double Grease
83B3-B	3 x 3	Cast Iron	Cast Iron	Basic	NPT	Carbon/Ni-Resist
83B31-B	3 x 3	Ductile Iron	Cast Iron	Basic	NPT	Carbon/Ni-Resist
83B52-B	3 x 3	Cast Iron	Cast Iron	Basic	NPT	Silicon Carbide
83C2-B	3 x 3	Cast Iron	Cast Iron	Basic	NPT	Double Grease
83C20-B	3 x 3	Cast Iron	Cast Iron	Basic	NPT	Tungsten Carbide
83C3-B	3 x 3	Cast Iron	Cast Iron	Basic	NPT	Carbon/Ni-Resist
83C52-B	3 x 3	Cast Iron	Cast Iron	Basic	NPT	Silicon Carbide
83D20-B	3 x 3	Cast Iron	Cast Iron	Basic	NPT	Tungsten Carbide
84A2-B	4 x 4	Cast Iron	Cast Iron	Basic	NPT	Double Grease
84A3-B	4 x 4	Cast Iron	Cast Iron	Basic	NPT	Carbon/Ni-Resist
84A52-B	4 x 4	Cast Iron	Cast Iron	Basic	NPT	Silicon Carbide
84B2-B	4 x 4	Cast Iron	Cast Iron	Basic	NPT	Double Grease
84B3-B	4 x 4	Cast Iron	Cast Iron	Basic	NPT	Carbon/Ni-Resist
84B31-B	4 x 4	Ductile Iron	Cast Iron	Basic	NPT	Carbon/Ni-Resist
84B52-B	4 x 4	Cast Iron	Cast Iron	Basic	NPT	Silicon Carbide
86A2-B	6 x 6	Cast Iron	Cast Iron	Basic	NPT	Double Grease
86A3-B	6 x 6	Cast Iron	Cast Iron	Basic	NPT	Carbon/Ni-Resist
86A52-B	6 x 6	Cast Iron	Cast Iron	Basic	NPT	Silicon Carbide
86B2-B	6 x 6	Cast Iron	Cast Iron	Basic	NPT	Double Grease
86B3-B	6 x 6	Cast Iron	Cast Iron	Basic	NPT	Carbon/Ni-Resist
86B52-B	6 x 6	Cast Iron	Cast Iron	Basic	NPT	Silicon Carbide
88A2-B	8 x 8	Cast Iron	Cast Iron	Basic	NPT	Double Grease
88A20-B	8 x 8	Cast Iron	Cast Iron	Basic	NPT	Tungsten Carbide
88A3-B	8 x 8	Cast Iron	Cast Iron	Basic	NPT	Carbon/Ni-Resist
88A52-B	8 x 8	Cast Iron	Cast Iron	Basic	NPT	Silicon Carbide
88B2-B	8 x 8	Cast Iron	Cast Iron	Basic	NPT	Double Grease
88B3-B	8 x 8	Cast Iron	Cast Iron	Basic	NPT	Carbon/Ni-Resist
88B52-B	8 x 8	Cast Iron	Cast Iron	Basic	NPT	Silicon Carbide
810A2-B	10 x 10	Cast Iron	Ductile Iron	Basic	NPT	Double Grease
