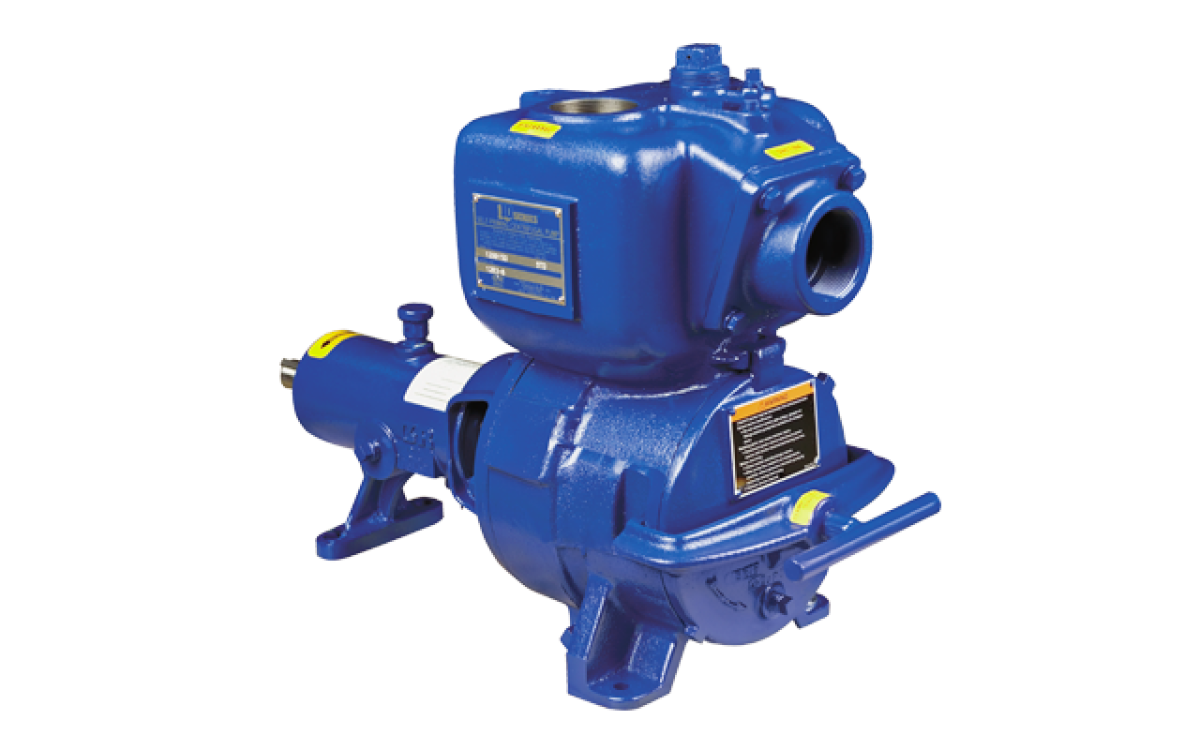

Self-Priming Pumps- 10 SERIES®

Gorman-Rupp 10 Series® pumps are specifically designed for handling solids, corrosive liquids and slurries. They have few moving parts, so maintenance is minimal. If a clog occurs, it can be removed easily through the cover plate opening without disturbing piping or the use of any special tools. The 10 Series offers a variety of metallurgy and seal configurations to choose from to handle a number of different liquids.

Specifications

Size	1-1/2" (40 mm), 2" (50 mm), 3" (80 mm), 4" (100 mm), 6" (150 mm), 12" (300 mm)
Max Capacity	6700 GPM (423 lps)
Max Head	130' (40 m)
Max Solids	3" (76 mm)
Max Temperature	212 F (100 C)
Materials of Construction	Bronze, Cast Iron, CD4MCu, Stainless Steel

Đặt hàng

Mô tả

10 Series Self-Priming Centrifugal Pumps

FEATURES

Solids Handling Impeller

Two-vane, semi-open, solids handling impeller handles up to 3" (76 mm) diameter solids, depending on pump model. Pump out vanes on impeller shroud reduce foreign material buildup behind impeller and reduce pressure on seal and bearings for extended pump life.

Multiple Seal Options

10 Series pumps are available with Gorman-Rupp double mechanical grease lubricated seals, self-lubricated mechanical seals and Gorman-Rupp's exclusive tungsten titanium carbide double floating, self-aligning oil Lubricated seals. Fluorocarbon Elastomers (DuPont VitonÂ® or equivalent) and PTFE Elastomers (DuPont TeflonÂ® or equivalent) are also available.

Removable Cover Plate

Removable cover plate provides quick and easy access to pump interior without disconnecting piping. Clogs can be removed and pump returned to service in minutes. Impeller, seal and replaceable wearplate can also be easily accessed through cover plate opening for inspection or service.

Replaceable Wearplate

10 Series pumps feature replaceable wearplates which fasten to the cover plate and can be removed for inspection or service. No expensive castings to replace. 10 Series pumps are available as basic units for connection to customers' power source or may be flex-coupled or V-belt driven by an electric motor. Pumps can also be powered by gasoline or diesel engines.

MODELS

Item	Size	Casing	Impeller / Rotor	Drive	Flange	Seal
11 1/2A2-B	1.5 x 1.5	Cast Iron	Cast Iron	Basic	NPT	Double Grease
11 1/2A2-E2 1P	1.5 x 1.5	Cast Iron	Cast Iron	Electric Motor	NPT	Double Grease
11 1/2A2-E2 3P	1.5 x 1.5	Cast Iron	Cast Iron	Electric Motor	NPT	Double Grease
11 1/2A20-B	1.5 x 1.5	Cast Iron	Cast Iron	Basic	NPT	Tungsten Carbide
11 1/2A22-B	1.5 x 1.5	Stainless Steel	Stainless Steel	Basic	NPT	Tungsten Carbide
11 1/2A3-B	1.5 x 1.5	Cast Iron	Cast Iron	Basic	NPT	Carbon/Ceramic
11 1/2A3-E2 1P	1.5 x 1.5	Cast Iron	Cast Iron	Electric Motor	NPT	Carbon/Ni-Resist
11 1/2A3-E2 3P	1.5 x 1.5	Cast Iron	Cast Iron	Electric Motor	NPT	Carbon/Ni-Resist
11 1/2A3-KW1.5 3P	1.5 x 1.5	Cast Iron	Cast Iron	Electric Motor	NPT	Carbon/Ni-Resist
11 1/2A52-B	1.5 x 1.5	Cast Iron	Cast Iron	Basic	NPT	Silicon Carbide
11 1/2A52-E2 1P	1.5 x 1.5	Cast Iron	Cast Iron	Electric Motor	NPT	Silicon Carbide
11 1/2A52-E2 3P	1.5 x 1.5	Cast Iron	Cast Iron	Electric Motor	NPT	Silicon Carbide
11 1/2A65-B	1.5 x 1.5	CD4MCu	CD4MCu	Basic	NPT	Silicon Carbide
11 1/2A9-B	1.5 x 1.5	Stainless Steel	Stainless Steel	Basic	NPT	Carbon/Ceramic
12B2-B	2 x 2	Cast Iron	Ductile Iron	Basic	NPT	Double Grease
12B20-B	2 x 2	Cast Iron	Ductile Iron	Basic	NPT	Tungsten Carbide
12B22-B	2 x 2	Stainless Steel	Stainless Steel	Basic	NPT	Tungsten Carbide
12B65-B	2 x 2	CD4MCu	CD4MCu	Basic	NPT	Silicon Carbide
12B9-B	2 x 2	Stainless Steel	Stainless Steel	Basic	NPT	Carbon/Ceramic
12C2-B	2 x 2	Cast Iron	Ductile Iron	Basic	NPT	Double Grease
12C20-B	2 x 2	Cast Iron	Ductile Iron	Basic	NPT	Tungsten Carbide
12D-1B20 FT4	2 x 2	Aluminum	Cast Iron	Diesel Engine	NPT	Double Grease
12D-GX160	2 x 2	Aluminum	Ductile Iron	Gasoline Engine	NPT	Double Grease
12D1-1B20 FT4	2 x 2	Aluminum	Ductile Iron	Diesel Engine	NPT	Silicon Carbide
12D1-GX160	2 x 2	Aluminum	Ductile Iron	Gasoline Engine	NPT	Silicon Carbide
12E1-GX160	2 x 2	Aluminum	Ductile Iron	Gasoline Engine	NPT	Silicon Carbide
13A2-B	3 x 3	Cast Iron	Ductile Iron	Basic	NPT	Double Grease
13A20-B	3 x 3	Cast Iron	Ductile Iron	Basic	NPT	Tungsten Carbide
13A22-B	3 x 3	Stainless Steel	Stainless Steel	Basic	NPT	Tungsten Carbide
13A52-GX390	3 x 3	Cast Iron	Ductile Iron	Gasoline Engine	NPT	Silicon Carbide
13A65-B	3 x 3	CD4MCu	CD4MCu	Basic	NPT	Silicon Carbide
13A9-B	3 x 3	Stainless Steel	Stainless Steel	Basic	NPT	Carbon/Ceramic
13C2-B	3 x 3	Cast Iron	Ductile Iron	Basic	NPT	Double Grease
13C20-B	3 x 3	Cast Iron	Ductile Iron	Basic	NPT	Tungsten Carbide
13C3-E1.5 3P	3 x 3	Cast Iron	Ductile Iron	Electric Motor	NPT	Carbon/Ni-Resist
13C3-E2 3P	3 x 3	Cast Iron	Ductile Iron	Electric Motor	NPT	Carbon/Ni-Resist
13C3-E3 3P	3 x 3	Cast Iron	Ductile Iron	Electric Motor	NPT	Carbon/Ni-Resist
13C3-E5 3P	3 x 3	Cast Iron	Ductile Iron	Electric Motor	NPT	Carbon/Ni-Resist
13D-GX270	3 x 3	Aluminum	Ductile Iron	Gasoline Engine	NPT	Double Grease
13D-L70EE	3 x 3	Aluminum	Ductile Iron	Diesel Engine	NPT	Double Grease
13D-L70W FT4	3 x 3	Aluminum	Ductile Iron	Diesel Engine	NPT	Double Grease
13D-L70W FT4 S/G	3 x 3	Aluminum	Ductile Iron	Diesel Engine	NPT	Double Grease
13D1-GX270	3 x 3	Aluminum	Ductile Iron	Gasoline Engine	NPT	Silicon Carbide
13D1-L70EE	3 x 3	Aluminum	Ductile Iron	Diesel Engine	NPT	Silicon Carbide
13D1-L70EE S/G	3 x 3	Aluminum	Ductile Iron	Diesel Engine	NPT	Silicon Carbide
13D1-L70W FT4	3 x 3	Aluminum	Ductile Iron	Diesel Engine	NPT	Silicon Carbide
13D1-L70W FT4 S/G	3 x 3	Aluminum	Ductile Iron	Diesel Engine	NPT	Silicon Carbide
13E2-12LD477 S/G	3 x 3	Cast Iron	Ductile Iron	Diesel Engine	NPT	Double Grease
13E52-GX390	3 x 3	Cast Iron	Ductile Iron	Gasoline Engine	NPT	Silicon Carbide
13G1-1B20	3 x 3	Aluminum	Cast Iron	Diesel Engine	NPT	Silicon Carbide
13G1-GX160	3 x 3	Aluminum	Cast Iron	Gasoline Engine	NPT	Silicon Carbide
14A2-B	4 x 4	Cast Iron	Ductile Iron	Basic	NPT	Double Grease
14A20-B	4 x 4	Cast Iron	Ductile Iron	Basic	NPT	Tungsten Carbide
14A22-B	4 x 4	Stainless Steel	Stainless Steel	Basic	NPT	Tungsten Carbide
14A65-B	4 x 4	CD4MCu	CD4MCu	Basic	NPT	Silicon Carbide
14A9-B	4 x 4	Stainless Steel	Stainless Steel	Basic	NPT	Carbon/Ceramic
14C2-B	4 x 4	Cast Iron	Ductile Iron	Basic	NPT	Double Grease
14C2-F3L	4 x 4	Cast Iron	Ductile Iron	Diesel Engine	NPT	Double Grease
14C2-QSF2.8P FT4	4 x 4	Cast Iron	Ductile Iron	Diesel Engine	NPT	Double Grease
14C20-B	4 x 4	Cast Iron	Ductile Iron	Basic	NPT	Tungsten Carbide
14C20-F3L	4 x 4	Cast Iron	Ductile Iron	Diesel Engine	NPT	Tungsten Carbide
14C20-QSF2.8P FT4	4 x 4	Cast Iron	Ductile Iron	Diesel Engine	NPT	Tungsten Carbide
14C3-E3 3P	4 x 4	Cast Iron	Ductile Iron	Electric Motor	NPT	Carbon/Ni-Resist
14C3-E5 3P	4 x 4	Cast Iron	Ductile Iron	Electric Motor	NPT	Carbon/Ni-Resist
14D1-CH23 S/G	4 x 4	Aluminum	Ductile Iron	Gasoline Engine	NPT	Silicon Carbide
14D1-GX390	4 x 4	Aluminum	Ductile Iron	Gasoline Engine	NPT	Silicon Carbide
14D2-12LD477 S/G	4 x 4	Cast Iron	Ductile Iron	Diesel Engine	NPT	Double Grease
14D52-12LD477 S/G	4 x 4	Cast Iron	Ductile Iron	Diesel Engine	NPT	Silicon Carbide
14D52-1B50 FT4 S/G	4 x 4	Cast Iron	Ductile Iron	Diesel Engine	None	Silicon Carbide
14D52-CH23 S/G	4 x 4	Cast Iron	Ductile Iron	Gasoline Engine	NPT	Silicon Carbide
14D52-GX390	4 x 4	Cast Iron	Ductile Iron	Gasoline Engine	NPT	Silicon Carbide
16A2-4045T	6 x 6	Cast Iron	Ductile Iron	Diesel Engine	NPT	Double Grease
16A2-B	6 x 6	Cast Iron	Ductile Iron	Basic	NPT	Double Grease
16A2-F3L	6 x 6	Cast Iron	Ductile Iron	Diesel Engine	NPT	Double Grease
16A20-B	6 x 6	Cast Iron	Ductile Iron	Basic	NPT	Tungsten Carbide
16A22-B	6 x 6	Stainless Steel	Stainless Steel	Basic	NPT	Tungsten Carbide
16A64-B	6 x 6	CD4MCu	CD4MCu	Basic	NPT	Tungsten Carbide
16A9-B	6 x 6	Stainless Steel	Stainless Steel	Basic	NPT	Carbon/Ceramic
16C2-4045T	6 x 6	Cast Iron	Ductile Iron	Diesel Engine	NPT	Double Grease
16C2-B	6 x 6	Cast Iron	Ductile Iron	Basic	NPT	Double Grease
16C2-F4L	6 x 6	Cast Iron	Ductile Iron	Diesel Engine	NPT	Double Grease
16C2-F5L	6 x 6	Cast Iron	Ductile Iron	Diesel Engine	NPT	Double Grease
16C2-QSF2.8P FT4	6 x 6	Cast Iron	Ductile Iron	Diesel Engine	NPT	Double Grease
16C20-4045T	6 x 6	Cast Iron	Ductile Iron	Diesel Engine	NPT	Tungsten Carbide
16C20-B	6 x 6	Cast Iron	Ductile Iron	Basic	NPT	Tungsten Carbide
16C20-F4L	6 x 6	Cast Iron	Ductile Iron	Diesel Engine	NPT	Tungsten Carbide
16C20-F5L	6 x 6	Cast Iron	Ductile Iron	Diesel Engine	NPT	Tungsten Carbide
16C20-QSF2.8P FT4	6 x 6	Cast Iron	Ductile Iron	Diesel Engine	NPT	Tungsten Carbide
16D60-F3L	6 x 6	Cast Iron	Cast Iron	Diesel Engine	NPT	Silicon Carbide
16D60-QSF2.8P FT4	6 x 6	Cast Iron	Cast Iron	Diesel Engine	NPT	Silicon Carbide
112B60-B	12 x 10	Cast Iron	Ductile Iron	Basic	ASA Spool	Silicon Carbide
112C60-B	12 x 10	Cast Iron	Ductile Iron	Basic	ASA Spool	Silicon Carbide
112A20-B	12 x 12	Cast Iron	Ductile Iron	Basic	NPT	Tungsten Carbide
112D60-B	12 x 12	Cast Iron	Ductile Iron	Basic	ASA Spool	Silicon Carbide
112D60-B-TCD914L6	12 x 12	Cast Iron	Ductile Iron	Diesel Engine	NPT	Tungsten Carbide
112E60-B	12 x 12	Cast Iron	ADI	Basic	ASA Spool	Silicon Carbide
112G60-B	12 x 12	Cast Iron	Ductile Iron	Basic	ASA Spool	Silicon Carbide
