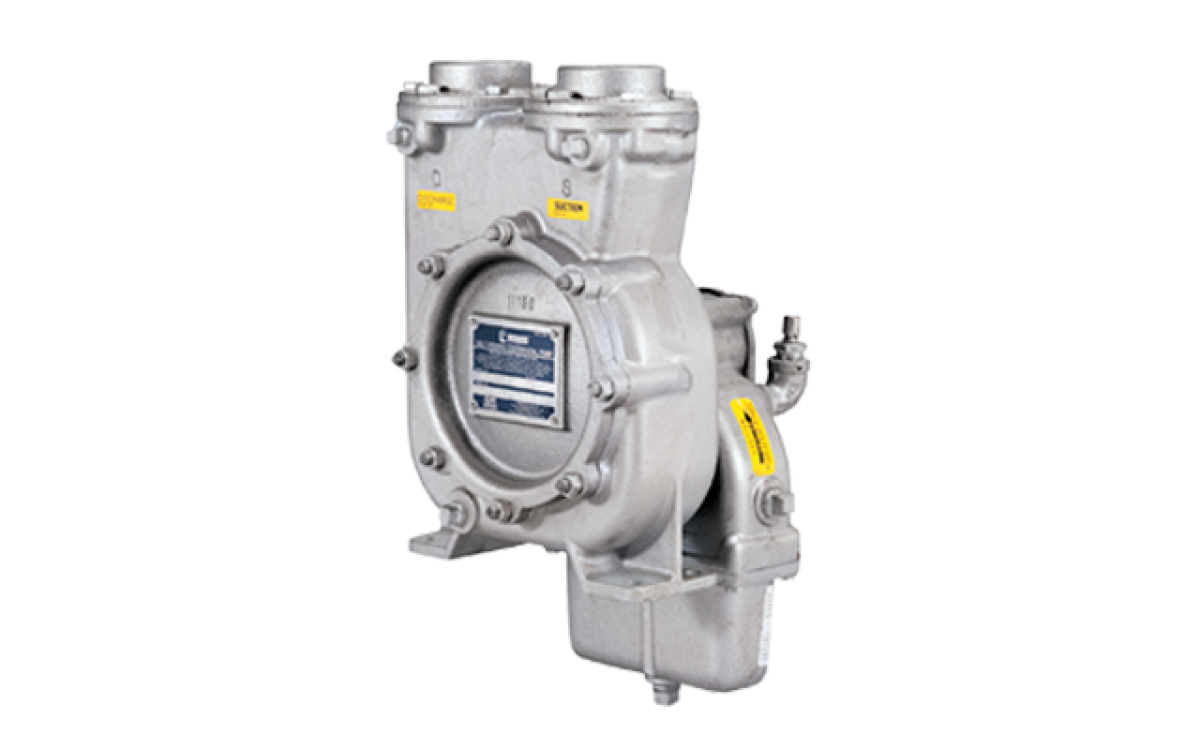

Self-Priming Pumps- O SERIES (POWER TAKE-OFF)(MÁY BƠM NHIÊN LIỆU HÀNG KHÔNG JET A1-SỬ DỤNG CHO XE TRA NẠP)

Gorman-Rupp self-priming centrifugal power take-off pumps are ideal for handling aircraft fuels, fuel oil, gasoline and other petroleum derivatives. These pumps have no check valve which provides better suction performance when handling solvents, petroleum products and similar liquids. O Series PTO pumps can also be used for water wagon applications. The pump volute and impeller are offered in lightweight aluminum with a bronze replaceable wear ring. Helical gears provide quiet operation. These units are available with left or right hand rotation. Designed for truck mounting.

Specifications

Size2" (50 mm), 3" (80 mm), 4" (100 mm), 6" (150 mm), 8" (200 mm)
Max Capacity1540 GPM (97 lps)
Max Head460' (140 m)
Max Solids1-19/100" (30 mm)
Max Temperature160 F (71 C)
Materials of ConstructionAluminum, Ductile Iron
Đặt hàng
X

Liên hệ đặt mua

O Series (Power Take-Off)  Self-Priming Centrifugal Pumps

FEATURES

High-Efficiency Impeller

High efficiency, closed impeller. Brass or aluminum construction standard. Other metals available for special applications.

Long Life Seals

O Series pumps are available with self-lubricated mechanical shaft seals for dependability and long life. Viton® /Fluoroelastomers are standard. Teflon® and double seals available on some model. Consult factory for special applications.

RESOURCES

Power Take-Off O Series Pump Flyer

MODELS



ItemSizeCasingImpeller / RotorDriveFlangeSeal
02F1-GL2 x 2AluminumAluminumPTONPTCarbon/Ni-Resist
02F1-GR2 x 2AluminumAluminumPTONPTCarbon/Ni-Resist
03H1-GL3 x 3AluminumAluminumPTONPTCarbon/Ni-Resist
03H1-GR3 x 3AluminumAluminumPTONPTCarbon/Ni-Resist
03H3-GL3 x 3Ductile IronAluminumPTONPTCarbon/Ni-Resist
03H3-GR3 x 3Ductile IronAluminumPTONPTCarbon/Ni-Resist
04E1-GA4 x 4AluminumAluminumPTOASACarbon/Ni-Resist
04E1-GHH4 x 4AluminumAluminumPTOASACarbon/Ni-Resist
06C1-GA6 x 4AluminumAluminumPTOASACarbon/Ni-Resist
06C1-GAR6 x 4AluminumAluminumPTOASACarbon/Ni-Resist
06C1-GHH6 x 4AluminumAluminumPTOASACarbon/Ni-Resist
06C3-GHH6 x 4Ductile IronAluminumPTOASACarbon/Ni-Resist
06D1-GA6 x 4AluminumAluminumPTOASACarbon/Ni-Resist
06D1-GAR6 x 4AluminumAluminumPTOASACarbon/Ni-Resist
06D1-GHH6 x 4AluminumAluminumPTOASACarbon/Ni-Resist
06D17-GAR6 x 4AluminumAluminumPTOASACarbon/Ni-Resist
06D3-GHH6 x 4Ductile IronAluminumPTOASACarbon/Ni-Resist
08C1-GA8 x 6AluminumAluminumPTOASACarbon/Ni-Resist
