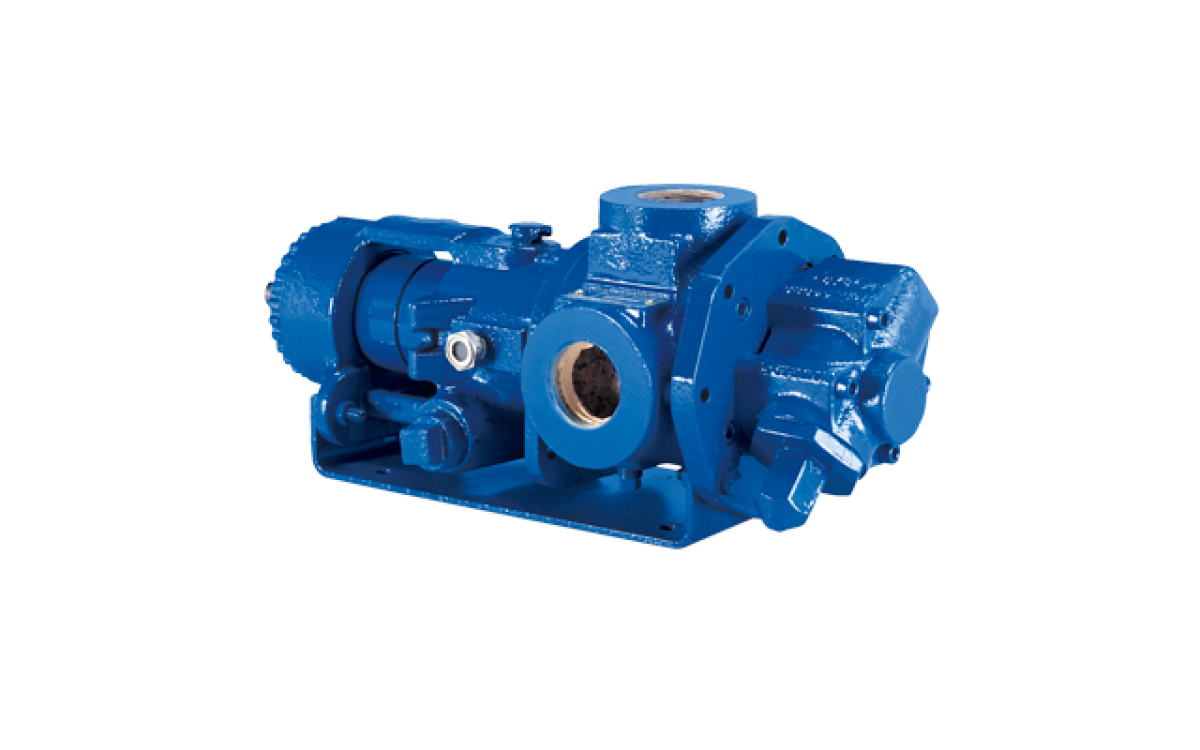

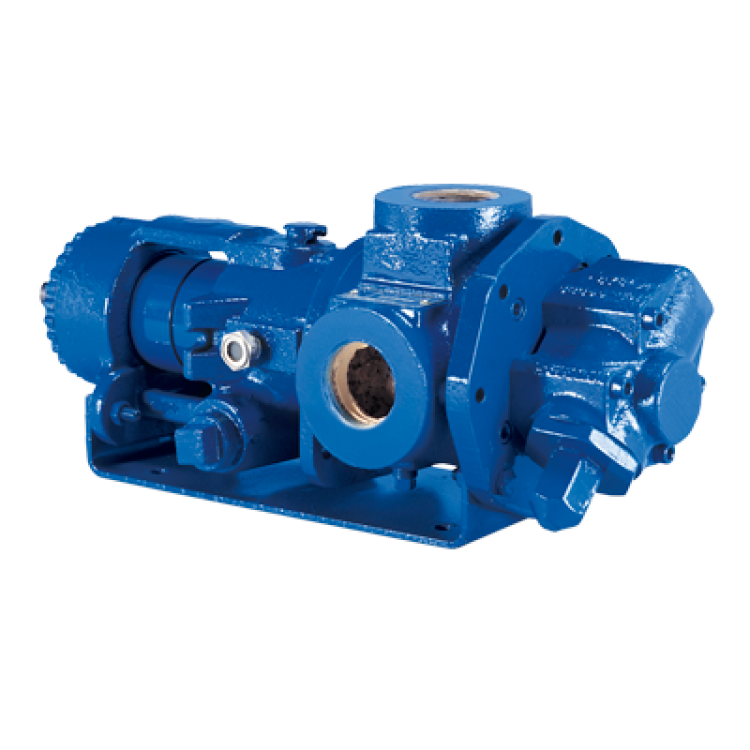

GHA SERIES (Rotary Gear Pumps)(MÁY BƠM BÁNH RĂNG)

The GHA Series is designed for continuous duty service for applications in the operating ranges noted. These units are available with head and backhead jackets for temperature control, along with packing or mechanical seal options. This abrasive handling, extreme duty series, provides superior wear resistance. The design also provides superior rotor shaft support and an integral, maintenance-free radial/thrust bearing for reduced deflection and wear. Reduced speeds enable service over extended periods.

Specifications

Size	1-1/2" (40 mm), 2" (50 mm), 3" (80 mm), 4" (100 mm)
Max Capacity	325 GPM (21 lps)
Max Viscosity	250000 SSU (53925 cST)
Max Pressure	200 PSI (14 BAR)
Min Temperature	-60 F (-51 C)
Max Temperature	500 F (260 C)
Materials of Construction	Hard Iron

Đặt hàng

Mô tả

Model: GHA1 1/2GC3-B ; GHA1 1/2GC4-B ; GHA1 1/2GF3-B ; GHA1 1/2GF4-B ; GHA1 1/2GH3-B ; GHA1 1/2GH4-B ; GHA1 1/2GJ3-B ; GHA1 1/2GJ4-B ; GHA2JJ3-B ; GHA2JJ4-B ; GHA2JL3-B ; GHA2JL4-B ; GHA2JP3-B ; GHA2JP4-B ; GHA2NK3-B ; GHA2NK4-B ; GHA2NM3-B ; GHA2NM4-B ; GHA2NP3-B ; GHA2NP4-B ; GHA2RM3-B ; GHA2RM4-B ; GHA2 1/2RM3-B ; GHA2 1/2RM4-B ; GHA3NK3-B ; GHA3NK4-B ; GHA3NM3-B ; GHA3NM4-B ; GHA3NP3-B ; GHA3NP4-B ; GHA3RM3-B ; GHA3RM4-B ; GHA3RP3-B ; GHA3RP4-B ; GHA3RR3-B ; GHA3RR4-B ; GHA3RS3-B ; GHA3RS4-B ; GHA3SR3-B ; GHA3SR4-B ; GHA3SU3-B ; GHA3SU4-B ; GHA4RM3-B ; GHA4RM4-B ; GHA4RP3-B ; GHA4RP4-B ; GHA4RR3-B ; GHA4RR4-B ; GHA4RS3-B ; GHA4RS4-B ; GHA4SR3-B ; GHA4SR4-B ; GHA4SU3-B ; GHA4SU4-B.

GHA Series (G Series) Rotary Gear Positive Displacement Pumps

MODELS

Item	Size	Casing	Impeller / Rotor	Drive	Flange	Seal
GHA1 1/2GC3-B	1.5 x 1.5	Cast Iron	Ductile Iron	Basic	NPT	Mechanical
GHA1 1/2GC4-B	1.5 x 1.5	Cast Iron	Ductile Iron	Basic	NPT	Packing
GHA1 1/2GF3-B	1.5 x 1.5	Cast Iron	Ductile Iron	Basic	NPT	Mechanical
GHA1 1/2GF4-B	1.5 x 1.5	Cast Iron	Ductile Iron	Basic	NPT	Packing
GHA1 1/2GH3-B	1.5 x 1.5	Cast Iron	Ductile Iron	Basic	NPT	Mechanical
GHA1 1/2GH4-B	1.5 x 1.5	Cast Iron	Ductile Iron	Basic	NPT	Packing
GHA1 1/2GJ3-B	1.5 x 1.5	Cast Iron	Ductile Iron	Basic	NPT	Mechanical
GHA1 1/2GJ4-B	1.5 x 1.5	Cast Iron	Ductile Iron	Basic	NPT	Packing
GHA2JJ3-B	2 x 2	Cast Iron	Ductile Iron	Basic	NPT	Mechanical
GHA2JJ4-B	2 x 2	Cast Iron	Ductile Iron	Basic	NPT	Packing
GHA2JL3-B	2 x 2	Cast Iron	Ductile Iron	Basic	NPT	Mechanical
GHA2JL4-B	2 x 2	Cast Iron	Ductile Iron	Basic	NPT	Packing
GHA2JP3-B	2 x 2	Cast Iron	Ductile Iron	Basic	NPT	Mechanical
GHA2JP4-B	2 x 2	Cast Iron	Ductile Iron	Basic	NPT	Packing
GHA2NK3-B	2 x 2	Cast Iron	Ductile Iron	Basic	NPT	Mechanical
GHA2NK4-B	2 x 2	Cast Iron	Ductile Iron	Basic	NPT	Packing
GHA2NM3-B	2 x 2	Cast Iron	Ductile Iron	Basic	NPT	Mechanical
GHA2NM4-B	2 x 2	Cast Iron	Ductile Iron	Basic	NPT	Packing
GHA2NP3-B	2 x 2	Cast Iron	Ductile Iron	Basic	NPT	Mechanical
GHA2NP4-B	2 x 2	Cast Iron	Ductile Iron	Basic	NPT	Packing
GHA2RM3-B	2 x 2	Cast Iron	Ductile Iron	Basic	NPT	Mechanical
GHA2RM4-B	2 x 2	Cast Iron	Ductile Iron	Basic	NPT	Packing
GHA2 1/2RM3-B	2.5 x 2.5	Cast Iron	Ductile Iron	Basic	ASA	Mechanical
GHA2 1/2RM4-B	2.5 x 2.5	Cast Iron	Ductile Iron	Basic	ASA	Packing
GHA3NK3-B	3 x 3	Cast Iron	Ductile Iron	Basic	NPT	Mechanical
GHA3NK4-B	3 x 3	Cast Iron	Ductile Iron	Basic	NPT	Packing
GHA3NM3-B	3 x 3	Cast Iron	Ductile Iron	Basic	NPT	Mechanical
GHA3NM4-B	3 x 3	Cast Iron	Ductile Iron	Basic	NPT	Packing
GHA3NP3-B	3 x 3	Cast Iron	Ductile Iron	Basic	NPT	Mechanical
GHA3NP4-B	3 x 3	Cast Iron	Ductile Iron	Basic	NPT	Packing
GHA3RM3-B	3 x 3	Cast Iron	Ductile Iron	Basic	NPT	Mechanical
GHA3RM4-B	3 x 3	Cast Iron	Ductile Iron	Basic	NPT	Packing
GHA3RP3-B	3 x 3	Cast Iron	Ductile Iron	Basic	NPT	Mechanical
GHA3RP4-B	3 x 3	Cast Iron	Ductile Iron	Basic	NPT	Packing
GHA3RR3-B	3 x 3	Cast Iron	Ductile Iron	Basic	NPT	Mechanical
GHA3RR4-B	3 x 3	Cast Iron	Ductile Iron	Basic	NPT	Packing
GHA3RS3-B	3 x 3	Cast Iron	Ductile Iron	Basic	NPT	Mechanical
GHA3RS4-B	3 x 3	Cast Iron	Ductile Iron	Basic	NPT	Packing
GHA3SR3-B	3 x 3	Cast Iron	Ductile Iron	Basic	NPT	Mechanical
GHA3SR4-B	3 x 3	Cast Iron	Ductile Iron	Basic	NPT	Packing
GHA3SU3-B	3 x 3	Cast Iron	Ductile Iron	Basic	NPT	Mechanical
GHA3SU4-B	3 x 3	Cast Iron	Ductile Iron	Basic	NPT	Packing
GHA4RM3-B	4 x 4	Cast Iron	Ductile Iron	Basic	ASA	Mechanical
GHA4RM4-B	4 x 4	Cast Iron	Ductile Iron	Basic	ASA	Packing
GHA4RP3-B	4 x 4	Cast Iron	Ductile Iron	Basic	ASA	Mechanical
GHA4RP4-B	4 x 4	Cast Iron	Ductile Iron	Basic	ASA	Packing
GHA4RR3-B	4 x 4	Cast Iron	Ductile Iron	Basic	ASA	Mechanical
GHA4RR4-B	4 x 4	Cast Iron	Ductile Iron	Basic	ASA	Packing
GHA4RS3-B	4 x 4	Cast Iron	Ductile Iron	Basic	ASA	Mechanical
GHA4RS4-B	4 x 4	Cast Iron	Ductile Iron	Basic	ASA	Packing
GHA4SR3-B	4 x 4	Cast Iron	Ductile Iron	Basic	ASA	Mechanical
GHA4SR4-B	4 x 4	Cast Iron	Ductile Iron	Basic	ASA	Packing
GHA4SU3-B	4 x 4	Cast Iron	Ductile Iron	Basic	ASA	Mechanical
GHA4SU4-B	4 x 4	Cast Iron	Ductile Iron	Basic	ASA	Packing
