6500 SERIES (Centrifugal Pumps)

6500 Series end suction centrifugal pumps are based on the proven technology of Gorman-Rupp's Prime Aire and
Prime Aire Plus priming-assisted pump models.

Model: 6503A60-B ; 6504A60-B ; 6504A65-B; 6504C60-B ; 6504E60-B ; 6506C60-B ; 6506A60-B ; 6506A65-B ; 6508A60-B ; 6508A65-B ; 6508C60-B ; 6508E60-B ; 6510A60-B ; 6514B60-B ; 6516A60-B

Specifications

Size	3" (80 mm), 4" (100 mm), 6" (150 mm), 8" (200 mm), 10" (250 mm), 14" (350 mm), 16" (400 mm)
Max Capacity	15000 GPM (947 lps)
Max Head	530' (162 m)
Max Solids	4" (102 mm)
Materials of Construction	Ductile Iron

Đặt hàng

Mô tả

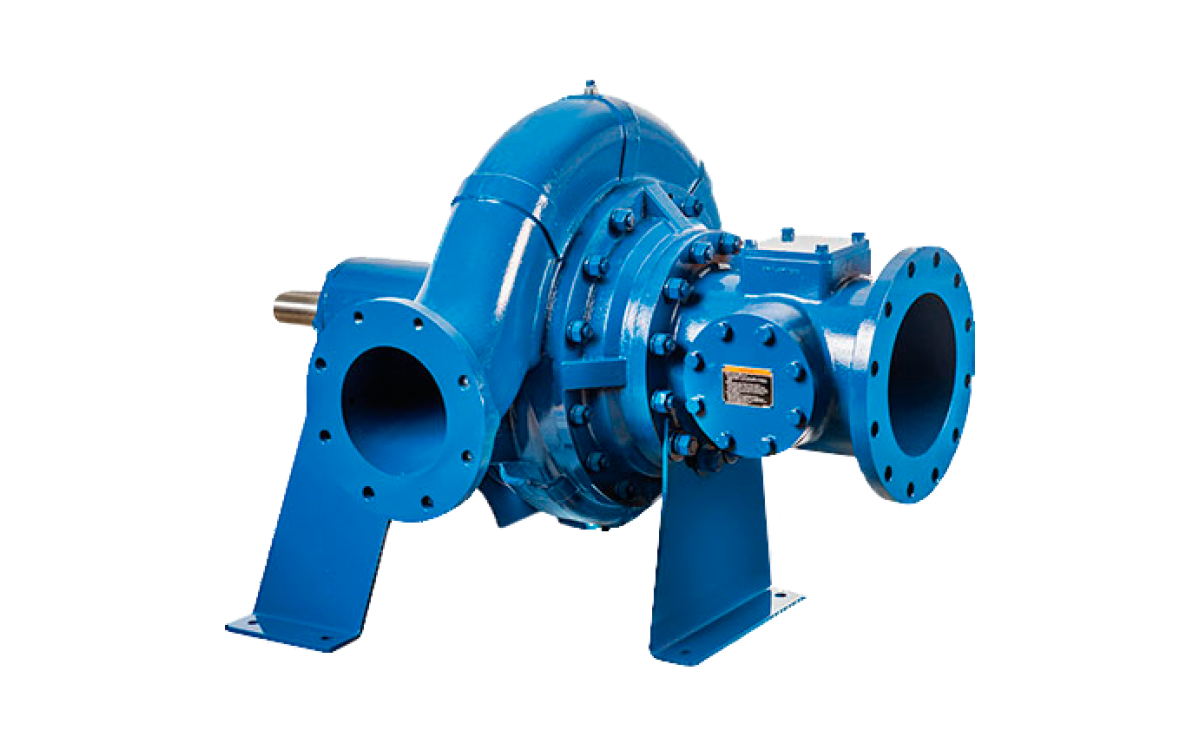

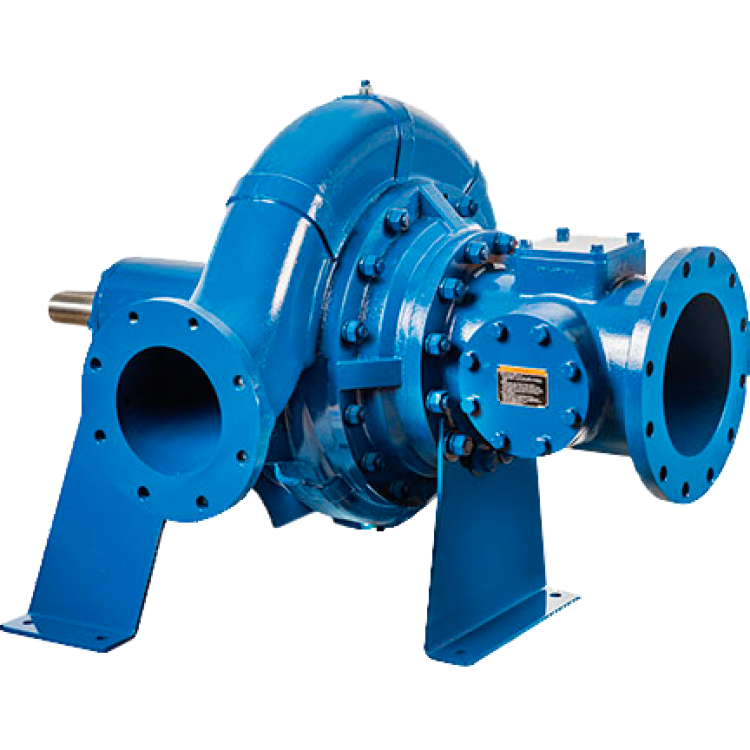

6500 Series

6500 Series end suction centrifugal pumps are based on the proven technology of Gorman-Rupp's Prime Aire and
Prime Aire Plus priming-assisted pump models. The 6500 Series was designed to extend Gorman-Rupp's end
suction centrifugal pump offering and to better serve applications where a suction lift is not required. A double volute mitigates shaft breakage and extends the life of the mechanical seals, wear rings and bearings, all while maintaining hydraulic efficiency, while a side access port allows for easy access to pump interior for
inspection and clean out while the pusher bolt capability assists in the removal of the suction flange. Other features include:
- Alloy steel shafts with stainless steel options
- Dual sight gauges for bearing and seal cavities
- Smart Scroll® indexable discharge location
- Atmospheric vent
- Oversized bearings for longer bearing life
- Double volute on larger models
- Solids-handing models include side access for inspection and clean out
- Five-year warranty

RESOURCES

6500 Series Brochure

MODELS

Item	Size	Casing	Impeller / Rotor	Drive	Flange	Seal
6503A60-B	6 x 3	Ductile Iron	Ductile Iron	Basic	ASA	Silicon Carbide
6504A60-B	6 x 4	Ductile Iron	Ductile Iron	Basic	ASA	Silicon Carbide
6504A65-B	6 x 4	CD4MCu	CD4MCu	Basic	ASA Spool	Carbon/Silicon Carbide
6504C60-B	6 x 4	Ductile Iron	Ductile Iron	Basic	ASA	Silicon Carbide
6504E60-B	6 x 4	Ductile Iron	Ductile Iron	Basic	ASA	Silicon Carbide
6506C60-B	8 x 6	Ductile Iron	Ductile Iron	Basic	ASA Spool	Carbon/Silicon Carbide
6506A60-B	10 x 6	Ductile Iron	Ductile Iron	Basic	ASA	Silicon Carbide
6506A65-B	10 x 6	CD4MCu	CD4MCu	Basic	ASA Spool	Carbon/Silicon Carbide
6508A60-B	10 x 8	Ductile Iron	Ductile Iron	Basic	ASA	Silicon Carbide
6508A65-B	10 x 8	CD4MCu	CD4MCu	Basic	ASA Spool	Carbon/Silicon Carbide
6508C60-B	10 x 8	Ductile Iron	Ductile Iron	Basic	ASA Spool	Carbon/Silicon Carbide
6508E60-B	10 x 8	Ductile Iron	Ductile Iron	Basic	ASA Spool	Carbon/Silicon Carbide
6510A60-B	12 x 10	Ductile Iron	Ductile Iron	Basic	ASA	Silicon Carbide
6514B60-B	14 x 14	Ductile Iron	Ductile Iron	Basic	ASA	Silicon Carbide
6516A60-B	18 x 16	Ductile Iron	Ductile Iron	Basic	ASA	Silicon Carbide
