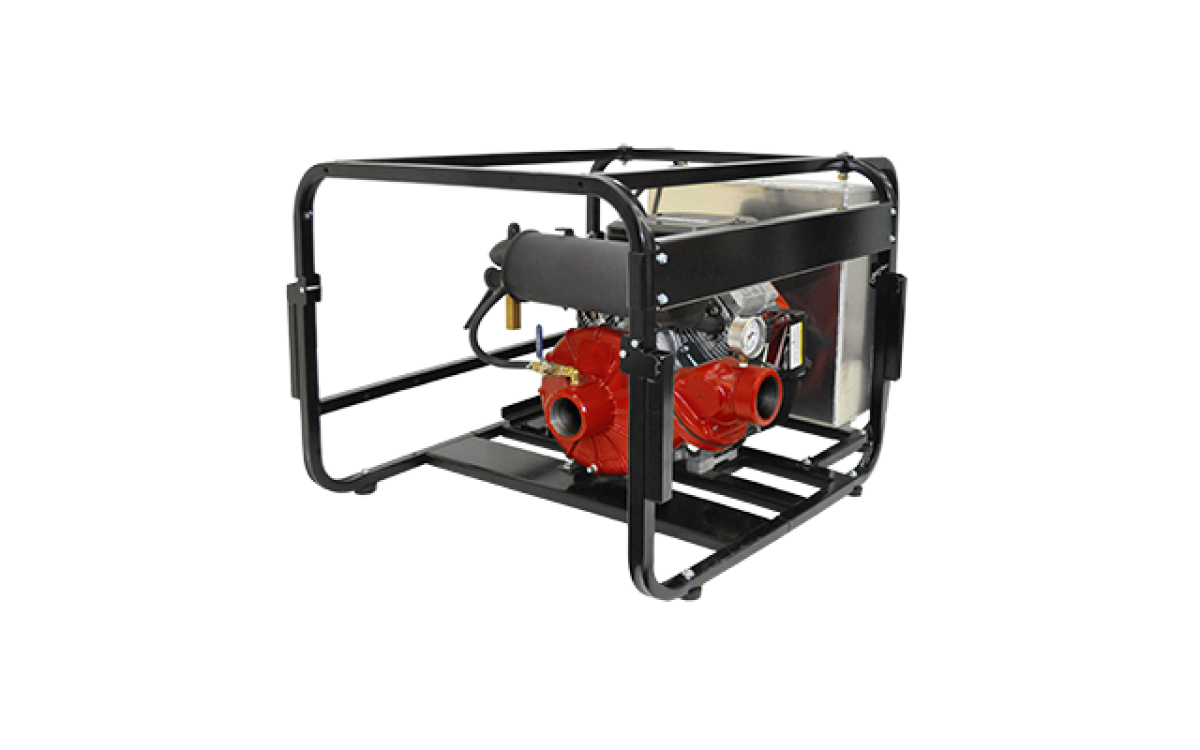

60 SERIES (ENGINE DRIVEN) (Centrifugal Pumps)

The Gorman-Rupp line of engine driven high pressure fire pumps delivers up to 156 PSI and 250 GPM. They are equipped with an exhaust primer. All units have a built-in check valve and include a discharge pressure gauge, brass hose adapters - NPT to National Standard Fire Hose Threads, and a suction strainer.

Model : 62 1/2A1-13 S/G ; 62 1/2A1-GX390 S/G ; 62 1/2D1-23 S/G

Specifications

Size1-1/2" (40 mm), 2-1/2" (60 mm)
Max Capacity260 GPM (16 lps)
Max Head360' (110 m)
Materials of ConstructionAluminum
Horsepower13 HP to 23 HP
Đặt hàng
X

Liên hệ đặt mua

60 Series (Engine Driven) Standard Pumps

MODELS

ItemSizeCasingImpeller / RotorDriveFlangeSeal
62 1/2A1-13 S/G2.5 x 2.5AluminumAluminumGasoline EngineNPTCarbon/Ni-Resist
62 1/2A1-GX390 S/G2.5 x 2.5AluminumAluminumGasoline EngineNPTCarbon/Ni-Resist
62 1/2D1-23 S/G2.5 x 2.5AluminumAluminumGasoline EngineASASilicon Carbide
