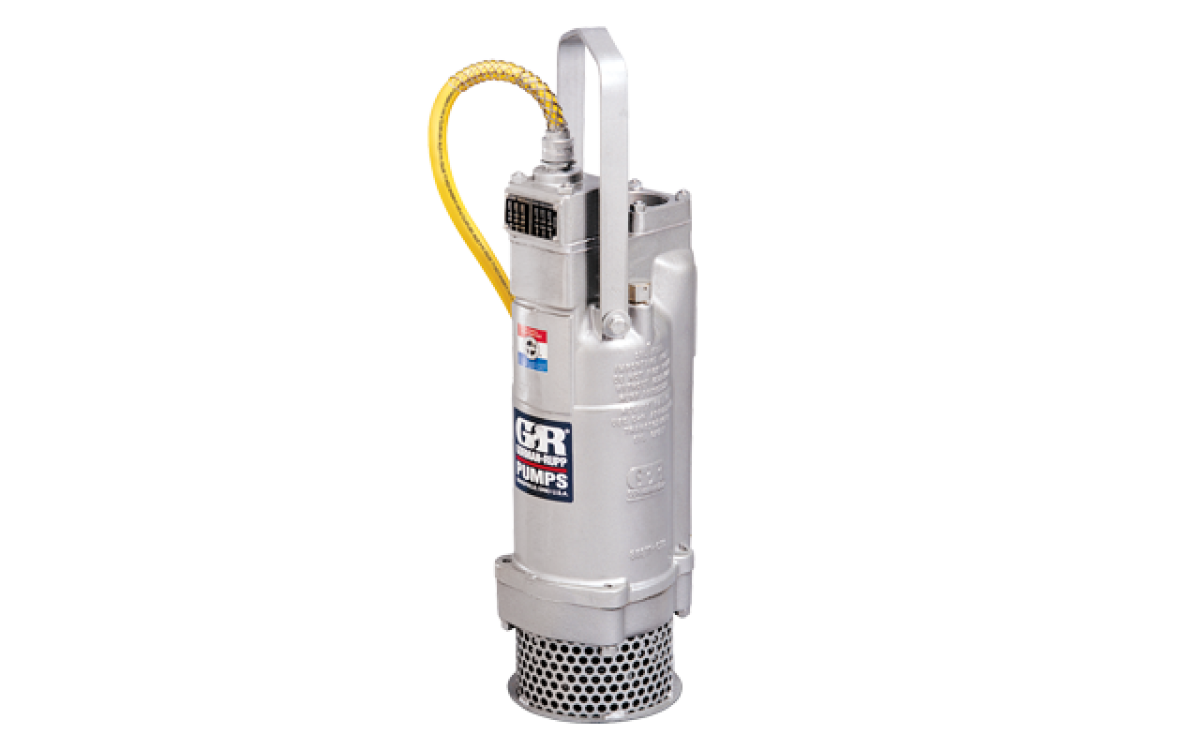

S SERIES (SLIMLINE SUBMERSIBLE) (Submersible Pumps (60 Hz))

For drilled wells, narrow cofferdams and hard-to-reach places, Gorman-Rupp's Slimline submersible pumps are lighter and easier to handle than their larger Widebase cousins. Even so, there is a strong family resemblance: Gorman-Rupp puts extra protection into the seals, and the impeller is rugged and dependable.

Specifications

Size	2" (50 mm), 3" (80 mm), 4" (100 mm), 6" (150 mm)
Max Capacity	2100 GPM (133 lps)
Max Head	380' (116 m)
Max Solids	1" (25 mm)
Max Temperature	122 F (50 C)
Materials of Construction	Aluminum, Cast Iron, Ductile Iron, Stainless Steel
Motor - Voltage	115 V 1P, 200 V 3P, 230 V 1P, 230 V 3P, 460 V 3P, 575 V 3P
Motor - Cycles	60 Hz
Horsepower	1 HP - 60 HP

Đặt hàng

Mô tả

MODELS: S2B1 115V 1P ; S2B1 230V 1P ; S2B1 230V 3P ; S2B1 460V 3P ; S2B18 115V 1P ; S2B18 230V 1P ; S2B18 230V 3P ; S2B18 460V 3P ; S2B65-E2 115/1 ; S2B65-E2 230/1 ; S2B65-E2 230/3 ; S2B65-E2 460/3 ; S2B65-E2 575/3 ; S2E1 230V 3P ; S2E1 460V 3P ; S2E18 230V 3P ; S2E18 460V 3P ; S2E65-E3.5 230/3 ; S2E65-E3.5 460/3 ; S2F1-E1 115/1 ; S2F1-E1 230/1 ; S2F1-E1 230/3 ; S2F1-E1 460/3 ; S3B1 230V 1P ; S3B1 230V 3P ; S3B1 460V 3P ; S3B18 230V 1P ; S3B18 230V 3P ; S3B18 460V 3P ; S3B65-E6 230/1 ; S3B65-E6 230/3 ; S3B65-E6 460/3 ; S3B65-E6 575/3 ; S3C1 230V 1P ; S3C1 230V 3P ; S3C1 460V 3P ; S3C18 230V 1P ; S3C18 230V 3P ; S3C18 460V 3P ; S3C65-E6 460/3 ; S4C1-E10 230/3 ; S4C1-E10 460/3 ; S4C18-E10 230/3 ; S4C18-E10 460/3 ; S4C65-E10 460/3 ; S4D1-E10 230/3 ; S4D1-E10 460/3 ; S4D18-E10 460/3 ; S4D65-E10 460/3 ; S4E1-E20 460/3 ; S4F1-E20 460/3 ; S4H1-E10 230/3 ; S4H1-E10 460/3 ; S4H18-E10 230/3 ; S4H18-E10 460/3 ; S4H65-E10 460/3 ; S4H65-E10 575/3 ; S4K1-E15 460/3 ; S4G1-E30 460/3 ; S4J1-E60 460/3 ; S6D1-E30 460/3 ; S6D1-E30 575/3 ; S6E1-E60 460/3

S Series (Slimline Submersible)Submersible Pumps

FEATURES

Compact Design

Gorman-Rupp Slimline Submersibles are designed for cramped quarters and hard-to-reach places where other pumps can't go. They're light in weight, which makes handling and installation simple. And these pumps have only two moving parts and three wearing surfaces so maintenance and repairs are minimal.

Dual Seals, Double Protection

Primary seal keeps dirty water in the pump end and prevents contamination of the oil cavity. A second "fail safe" seal provides extra protection against the possibility of damage to the motor. Positive oil lubrication enables the pump to run dry without seal damage.

Abrasive Handling Impeller

Abrasion resistant ductile iron impellers stand up to sand, gravel and other abrasive materials. The fully shrouded impeller back reduces seal pressure and helps prevent foreign material from entering the seal cavity. Seal life is extended and operational life of the pump is increased. Optional impellers of CD4MCu are available for corrosive/abrasive applications.

MODELS

Item	Size	Casing	Impeller / Rotor	Drive	Flange	Seal
S2B1 115V 1P	2 x 2	Cast Iron	Copper Alloy	Electric Motor	NPT	Tungsten Carbide
S2B1 230V 1P	2 x 2	Cast Iron	Copper Alloy	Electric Motor	NPT	Tungsten Carbide
S2B1 230V 3P	2 x 2	Cast Iron	Copper Alloy	Electric Motor	NPT	Tungsten Carbide
S2B1 460V 3P	2 x 2	Cast Iron	Copper Alloy	Electric Motor	NPT	Tungsten Carbide
S2B18 115V 1P	2 x 2	CD4MCu	CD4MCu	Electric Motor	NPT	Tungsten Carbide
S2B18 230V 1P	2 x 2	CD4MCu	CD4MCu	Electric Motor	NPT	Tungsten Carbide
S2B18 230V 3P	2 x 2	CD4MCu	CD4MCu	Electric Motor	NPT	Tungsten Carbide
S2B18 460V 3P	2 x 2	CD4MCu	CD4MCu	Electric Motor	NPT	Tungsten Carbide
S2B65-E2 115/1	2 x 2	CD4MCu	CD4MCu	Electric Motor	NPT	Silicon Carbide
S2B65-E2 230/1	2 x 2	CD4MCu	CD4MCu	Electric Motor	NPT	Silicon Carbide
S2B65-E2 230/3	2 x 2	CD4MCu	CD4MCu	Electric Motor	NPT	Silicon Carbide
S2B65-E2 460/3	2 x 2	CD4MCu	CD4MCu	Electric Motor	NPT	Silicon Carbide
S2B65-E2 575/3	2 x 2	CD4MCu	CD4MCu	Electric Motor	NPT	Silicon Carbide
S2E1 230V 3P	2 x 2	Cast Iron	Bronze	Electric Motor	NPT	Tungsten Carbide
S2E1 460V 3P	2 x 2	Cast Iron	Bronze	Electric Motor	NPT	Tungsten Carbide
S2E18 230V 3P	2 x 2	CD4MCu	CD4MCu	Electric Motor	NPT	Tungsten Carbide
S2E18 460V 3P	2 x 2	CD4MCu	CD4MCu	Electric Motor	NPT	Tungsten Carbide
S2E65-E3.5 230/3	2 x 2	CD4MCu	CD4MCu	Electric Motor	NPT	Silicon Carbide
S2E65-E3.5 460/3	2 x 2	CD4MCu	CD4MCu	Electric Motor	NPT	Silicon Carbide
S2F1-E1 115/1	2 x 2	Ductile Iron	Ductile Iron	Electric Motor	NPT	Tungsten Carbide
S2F1-E1 230/1	2 x 2	Ductile Iron	Ductile Iron	Electric Motor	NPT	Tungsten Carbide
S2F1-E1 230/3	2 x 2	Ductile Iron	Ductile Iron	Electric Motor	NPT	Tungsten Carbide
S2F1-E1 460/3	2 x 2	Ductile Iron	Ductile Iron	Electric Motor	NPT	Tungsten Carbide
S3B1 230V 1P	3 x 3	Aluminum	Ductile Iron	Electric Motor	NPT	Tungsten Carbide
S3B1 230V 3P	3 x 3	Aluminum	Ductile Iron	Electric Motor	NPT	Tungsten Carbide
S3B1 460V 3P	3 x 3	Aluminum	Ductile Iron	Electric Motor	NPT	Tungsten Carbide
S3B18 230V 1P	3 x 3	Aluminum	CD4MCu	Electric Motor	NPT	Tungsten Carbide
S3B18 230V 3P	3 x 3	Aluminum	CD4MCu	Electric Motor	NPT	Tungsten Carbide
S3B18 460V 3P	3 x 3	Aluminum	CD4MCu	Electric Motor	NPT	Tungsten Carbide
S3B65-E6 230/1	3 x 3	CD4MCu	CD4MCu	Electric Motor	NPT	Silicon Carbide
S3B65-E6 230/3	3 x 3	CD4MCu	CD4MCu	Electric Motor	NPT	Silicon Carbide
S3B65-E6 460/3	3 x 3	CD4MCu	CD4MCu	Electric Motor	NPT	Silicon Carbide
S3B65-E6 575/3	3 x 3	CD4MCu	CD4MCu	Electric Motor	NPT	Silicon Carbide
S3C1 230V 1P	3 x 3	Aluminum	Ductile Iron	Electric Motor	NPT	Tungsten Carbide
S3C1 230V 3P	3 x 3	Aluminum	Ductile Iron	Electric Motor	NPT	Tungsten Carbide
S3C1 460V 3P	3 x 3	Aluminum	Ductile Iron	Electric Motor	NPT	Tungsten Carbide
S3C18 230V 1P	3 x 3	Aluminum	CD4MCu	Electric Motor	NPT	Tungsten Carbide
S3C18 230V 3P	3 x 3	Aluminum	CD4MCu	Electric Motor	NPT	Tungsten Carbide
S3C18 460V 3P	3 x 3	Aluminum	CD4MCu	Electric Motor	NPT	Tungsten Carbide
S3C65-E6 460/3	3 x 3	CD4MCu	CD4MCu	Electric Motor	NPT	Silicon Carbide
S4C1-E10 230/3	4 x 4	ADI	ADI	Electric Motor	NPT	Tungsten Carbide
S4C1-E10 460/3	4 x 4	ADI	ADI	Electric Motor	NPT	Tungsten Carbide
S4C18-E10 230/3	4 x 4	CD4MCu	CD4MCu	Electric Motor	NPT	Tungsten Carbide
S4C18-E10 460/3	4 x 4	CD4MCu	CD4MCu	Electric Motor	NPT	Tungsten Carbide
S4C65-E10 460/3	4 x 4	CD4MCu	CD4MCu	Electric Motor	NPT	Silicon Carbide
S4D1-E10 230/3	4 x 4	ADI	ADI	Electric Motor	NPT	Tungsten Carbide
S4D1-E10 460/3	4 x 4	ADI	ADI	Electric Motor	NPT	Tungsten Carbide
S4D18-E10 460/3	4 x 4	CD4MCu	CD4MCu	Electric Motor	NPT	Tungsten Carbide
S4D65-E10 460/3	4 x 4	CD4MCu	CD4MCu	Electric Motor	NPT	Silicon Carbide
S4E1-E20 460/3	4 x 4	Aluminum	ADI	Electric Motor	NPT	Tungsten Carbide
S4F1-E20 460/3	4 x 4	ADI	ADI	Electric Motor	None	Tungsten Carbide
S4H1-E10 230/3	4 x 4	ADI	ADI	Electric Motor	NPT	Tungsten Carbide
S4H1-E10 460/3	4 x 4	ADI	ADI	Electric Motor	NPT	Tungsten Carbide
S4H18-E10 230/3	4 x 4	CD4MCu	CD4MCu	Electric Motor	NPT	Tungsten Carbide
S4H18-E10 460/3	4 x 4	CD4MCu	CD4MCu	Electric Motor	NPT	Tungsten Carbide
S4H65-E10 460/3	4 x 4	CD4MCu	CD4MCu	Electric Motor	NPT	Silicon Carbide
S4H65-E10 575/3	4 x 4	CD4MCu	CD4MCu	Electric Motor	NPT	Silicon Carbide
S4K1-E15 460/3	4 x 4	ADI	ADI	Electric Motor	None	Tungsten Carbide
S4G1-E30 460/3	6 x 4	Aluminum	ADI	Electric Motor	None	Silicon Carbide
S4J1-E60 460/3	6 x 4	Aluminum	ADI	Electric Motor	None	Silicon Carbide
S6D1-E30 460/3	6 x 6	ADI	ADI	Electric Motor	None	Silicon Carbide
S6D1-E30 575/3	6 x 6	ADI	ADI	Electric Motor	None	Silicon Carbide
S6E1-E60 460/3	6 x 6	ADI	ADI	Electric Motor	NPT	Silicon Carbide
