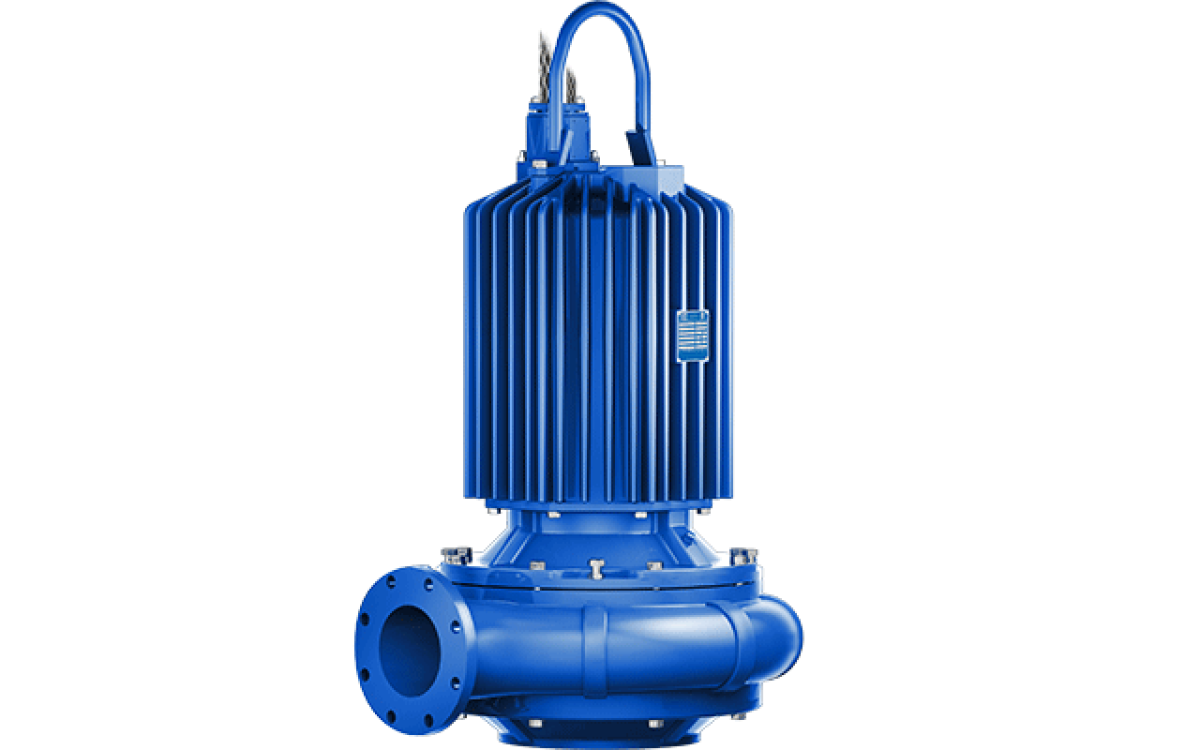

SF Series® (Submersible Pumps (60 Hz)

Gorman-Rupp SF Series® submersible solids-handling pumps are designed to provide you with the ultimate in pumping performance. All SF Series pumps use NEMA Premium Efficiency motors and pass a minimum 3" spherical solid. Vortex pumps use the patent-pending Staggerwing® impeller technology.

Specifications

Size	3" (80 mm), 4" (100 mm), 6" (150 mm), 8" (200 mm)
Max Capacity	3400 GPM (215 lps)
Max Head	170' (52 m)
Max Solids	3" (76 mm)
Max Temperature	104 F (40 C)
Materials of Construction	Cast Iron, Ductile Iron
Motor - Voltage	230 V 1P, 230 V 3P, 460 V 3P, 575 V 3P
Motor - Cycles	60 Hz
Horsepower	3 - 75 HP

Đặt hàng

Mô tả

SF Series<sup>®</sup>

SF Series submersible solids-handling pumps are available in slide rail and construction / trash versions for use in most liquid removal applications.

The SF Series comes with 3", 4", 6", and 8" flanged discharge and power ranging from 3 - 75 HP (1.5 to 56 kW). These combinations will provide flows up to 3,100 gpm (195.6 lps) and heads to 190 feet (57.9 meters).

Built to the same exacting standards you've come to expect from our industry-leading self-priming pumps, SF Series pumps are designed for easy maintenance and constructed for long life.

Press-fit motor with our patent-pending finned motor housing provides superior motor cooling resulting in increased motor life
Moisture detection in both the seal and motor chambers standard
All pumps pass a minimum 3" spherical solid
NEMA Premium Efficiency motors with Class H insulation standard on all models
Externally adjustable face clearances, on channel impeller pumps, to improve pumping efficiency without time-consuming wear ring replacement
Terminal housing and cable connections designed for easy in-the-field cable replacement

FEATURES

Wet Pit (SF and SFV Versions)

Standard 2" rail or optional guide cable on all slide rail versions
Guide shoes include rubber seal for more efficient fluid passage through discharge

Construction/Trash (SF and SFV Versions)

Rugged stand with clearance for solids passage
Flanged discharge elbow available

Staggerwing® Technology

SFV vortex pump models feature the patent-pending Staggerwing impeller. The impeller enables higher pump efficiency and the ability to pass 3" spherical solids. Pump models are available up to 30 HP.

RESOURCES

SF Series Submersible Brochure
SF Series Upgrade Kit Flyer

MODELS

Item	Size	Casing	Impeller / Rotor	Drive	Flange	Seal
SFDEV3A	3 x 3	Cast Iron	Ductile Iron	Electric Motor	ASA	Silicon Carbide
SFDEV3A-X	3 x 3	Cast Iron	Ductile Iron	Electric Motor	ASA	Silicon Carbide
SFDEV3B	3 x 3	Cast Iron	Ductile Iron	Electric Motor	ASA	Silicon Carbide
SFDEV3B-X	3 x 3	Cast Iron	Ductile Iron	Electric Motor	ASA	Silicon Carbide
SFDV3A	3 x 3	Cast Iron	Ductile Iron	Electric Motor	ASA	Silicon Carbide
SFDV3A-X	3 x 3	Cast Iron	Ductile Iron	Electric Motor	ASA	Silicon Carbide
SFDV3B	3 x 3	Cast Iron	Ductile Iron	Electric Motor	ASA	Silicon Carbide
SFDV3B-X	3 x 3	Cast Iron	Ductile Iron	Electric Motor	ASA	Silicon Carbide
SFEV3A	3 x 3	Cast Iron	Ductile Iron	Electric Motor	ASA	Silicon Carbide
SFEV3A-X	3 x 3	Cast Iron	Ductile Iron	Electric Motor	ASA	Silicon Carbide
SFEV3B	3 x 3	Cast Iron	Ductile Iron	Electric Motor	ASA	Silicon Carbide
SFEV3B-X	3 x 3	Cast Iron	Ductile Iron	Electric Motor	ASA	Silicon Carbide
SFV3A	3 x 3	Cast Iron	Ductile Iron	Electric Motor	ASA	Silicon Carbide
SFV3A-X	3 x 3	Cast Iron	Ductile Iron	Electric Motor	ASA	Silicon Carbide
SFV3B	3 x 3	Cast Iron	Ductile Iron	Electric Motor	ASA	Silicon Carbide
SFV3B-X	3 x 3	Cast Iron	Ductile Iron	Electric Motor	ASA	Silicon Carbide
SF4A	4 x 4	Ductile Iron	Ductile Iron	Electric Motor	ASA	Silicon Carbide
SF4A-X	4 x 4	Ductile Iron	Ductile Iron	Electric Motor	ASA	Silicon Carbide
SF4B	4 x 4	Ductile Iron	Ductile Iron	Electric Motor	ASA	Silicon Carbide
SF4C	4 x 4	Ductile Iron	Ductile Iron	Electric Motor	ASA	Silicon Carbide
SF4D	4 x 4	Ductile Iron	Ductile Iron	Electric Motor	ASA	Silicon Carbide
SF4E	4 x 4	Ductile Iron	Ductile Iron	Electric Motor		Silicon Carbide
SF4E-X	4 x 4	Ductile Iron	Ductile Iron	Electric Motor		Silicon Carbide
SF4F	4 x 4	Ductile Iron	Ductile Iron	Electric Motor		Silicon Carbide
SFDEV4A	4 x 4	Cast Iron	Ductile Iron	Electric Motor	ASA Spool	Silicon Carbide
SFDEV4A-X	4 x 4	Cast Iron	Ductile Iron	Electric Motor	ASA	Silicon Carbide
SFDV4A	4 x 4	Cast Iron	Ductile Iron	Electric Motor	ASA	Silicon Carbide
SFDV4A-X	4 x 4	Cast Iron	Ductile Iron	Electric Motor	ASA	Silicon Carbide
SFDV4B	4 x 4	Cast Iron	Ductile Iron	Electric Motor	ASA	Silicon Carbide
SFDV4B-X	4 x 4	Cast Iron	Ductile Iron	Electric Motor	ASA	Silicon Carbide
SFDV4D	4 x 4	Cast Iron	Ductile Iron	Electric Motor	ASA	Silicon Carbide
SFDV4D-X	4 x 4	Cast Iron	Ductile Iron	Electric Motor	ASA	Silicon Carbide
SFEV4A	4 x 4	Cast Iron	Ductile Iron	Electric Motor	ASA	Silicon Carbide
SFEV4A-X	4 x 4	Cast Iron	Ductile Iron	Electric Motor	ASA	Silicon Carbide
SFS4A	4 x 4	Ductile Iron	Ductile Iron	Electric Motor	ASA	Silicon Carbide
SFS4B	4 x 4	Ductile Iron	Ductile Iron	Electric Motor	ASA	Silicon Carbide
SFV4A	4 x 4	Cast Iron	Ductile Iron	Electric Motor	ASA	Silicon Carbide
SFV4A-X	4 x 4	Cast Iron	Ductile Iron	Electric Motor	ASA	Silicon Carbide
SFV4B	4 x 4	Cast Iron	Ductile Iron	Electric Motor	ASA	Silicon Carbide
SFV4B-X	4 x 4	Cast Iron	Ductile Iron	Electric Motor	ASA	Silicon Carbide
SFV4C	4 x 4	Cast Iron	Ductile Iron	Electric Motor	ASA	Silicon Carbide
SFV4C-X	4 x 4	Cast Iron	Ductile Iron	Electric Motor	ASA	Silicon Carbide
SFV4D	4 x 4	Cast Iron	Ductile Iron	Electric Motor	ASA	Silicon Carbide
SFV4D-X	4 x 4	Cast Iron	Ductile Iron	Electric Motor	ASA	Silicon Carbide
SFV4E	4 x 4	Cast Iron	Ductile Iron	Electric Motor	ASA	Silicon Carbide
SF6B	6 x 6	Ductile Iron	Ductile Iron	Electric Motor	ASA	Silicon Carbide
SF6C	6 x 6	Ductile Iron	Ductile Iron	Electric Motor	ASA	Silicon Carbide
SF6D	6 x 6	Ductile Iron	Ductile Iron	Electric Motor	ASA	Silicon Carbide
SF6E	6 x 6	Ductile Iron	Ductile Iron	Electric Motor		Silicon Carbide
SF6E-X	6 x 6	Ductile Iron	Ductile Iron	Electric Motor		Silicon Carbide
SF6F	6 x 6	Ductile Iron	Ductile Iron	Electric Motor		Silicon Carbide
SF8B	8 x 8	Ductile Iron	Ductile Iron	Electric Motor	ASA	Silicon Carbide
