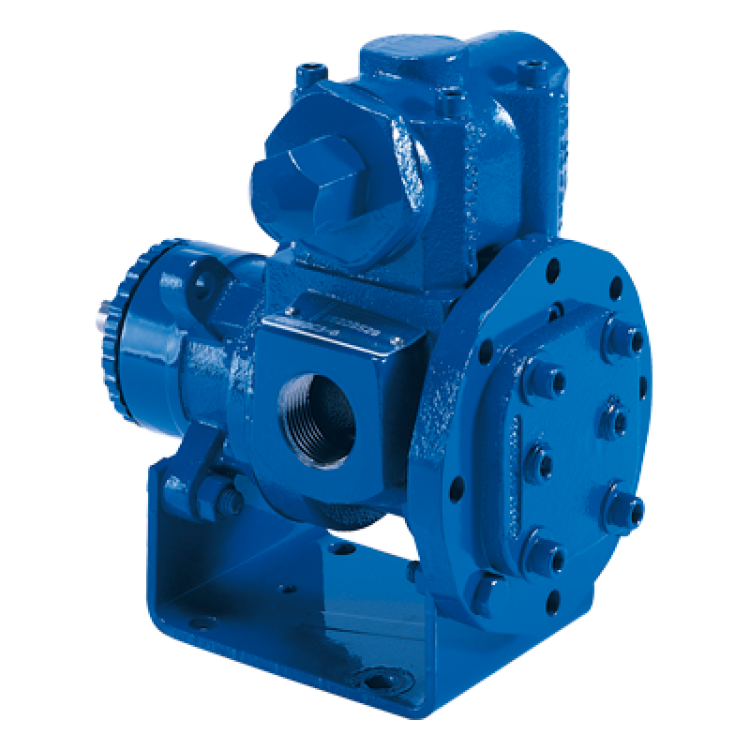

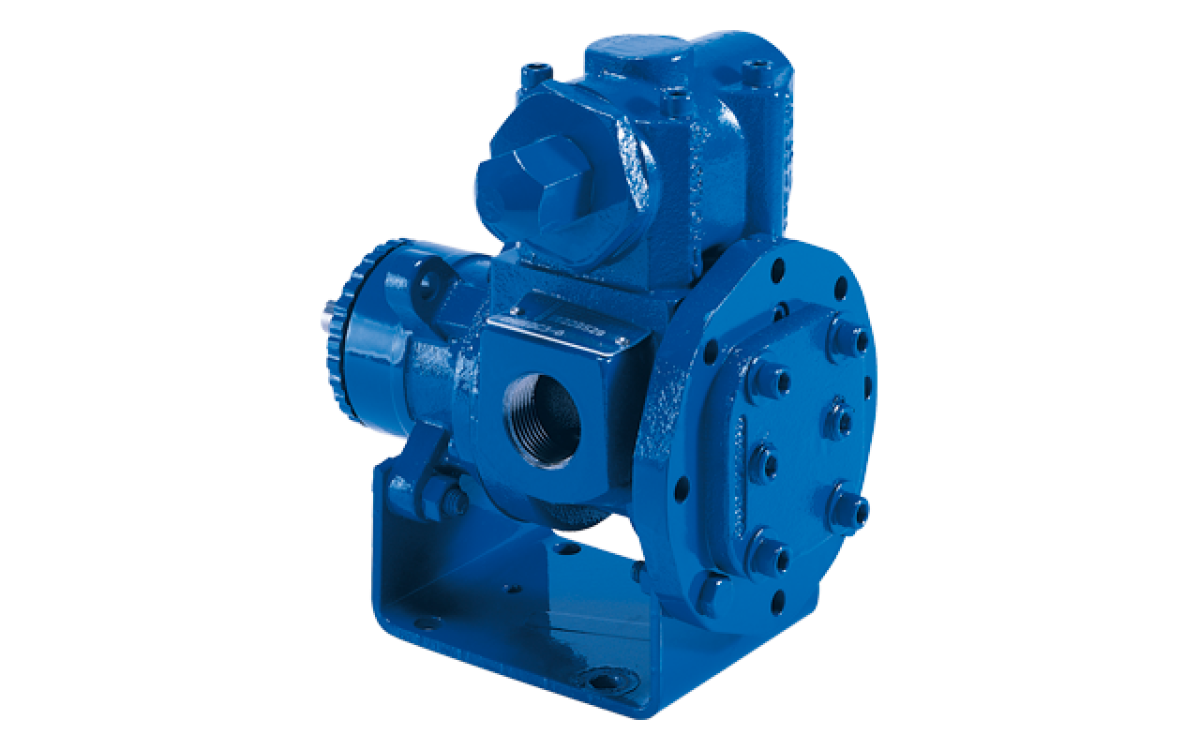

GHC SERIES (Rotary Gear Pumps)(MÁY BƠM BÁNH RĂNG)

The GHC Series of iron, steel and stainless steel pumps is designed for continuous duty service for applications in the operating ranges shown. These units are available with head jackets for temperature control, carbon graphite bushings for low-viscosity liquids, silicon carbide bushings for wear resistance, and numerous seal options. The GHC Series units may be foot-mounted or, by using a motor adapter, direct connected to NEMA "C" flange motors. This heavy-duty series provides superior rotor shaft support and an integral, maintenance-free radial/thrust bearing for reduced deflection and wear.

Specifications

Size	1" (25 mm), 1-1/2" (40 mm), 2" (50 mm), 2-1/2" (60 mm), 3" (80 mm)
Max Capacity	107 GPM (7 lps)
Max Viscosity	250000 SSU (53925 cST)
Max Pressure	300 PSI (21 BAR)
Min Temperature	-60 F (-51 C)
Max Temperature	350 F (177 C)
Materials of Construction	Cast Iron, Cast Steel, Stainless Steel

Đặt hàng

Mô tả

Model: GHC1DC3-B; GHC1DC32-B ; GHC1DC9-B; GHC1DE3-B ; GHC1DE32-B ; GHC1DE9-B ; GHC1 1/2GC3-B ; GHC1 1/2GC32-B ; GHC1 1/2GC9-B ; GHC1 1/2GF3-B ; GHC1 1/2GF32-B ; GHC1 1/2GF9-B ; GHC1 1/2GH3-B ; GHC1 1/2GH32-B ; GHC1 1/2GH9-B ; GHC1 1/2GJ3-B ; GHC1 1/2GJ32-B ; GHC1 1/2GJ9-B ; GHC2GC3-B ; GHC2GF3-B ; GHC2GH3-B ; GHC2GJ3-B ; GHC2JG3-B ; GHC2JJ3-B ; GHC2JL3-B ; GHC2JP3-B ; GHC2 1/2JG3-B ; GHC2 1/2JJ3-B ; GHC2 1/2JL3-B ; GHC2 1/2JP3-B ; GHC3JG3-B ; GHC3JG32-B ; GHC3JG9-B ; GHC3JJ3-B ; GHC3JJ32-B ; GHC3JJ9-B ; GHC3JL3-B ; GHC3JL32-B ; GHC3JL9-B ; GHC3JP3-B ; GHC3JP32-B ; GHC3JP9-B.

GHC Series (G Series) Rotary Gear Positive Displacement Pumps

MODELS

Item	Size	Casing	Impeller / Rotor	Drive	Flange	Seal
GHC1DC3-B	1 x 1	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GHC1DC32-B	1 x 1	Cast Steel	Ductile Iron	Basic	NPT	Mechanical or Packing
GHC1DC9-B	1 x 1	Stainless Steel	Stainless Steel	Basic	NPT	Mechanical or Packing
GHC1DE3-B	1 x 1	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GHC1DE32-B	1 x 1	Cast Steel	Ductile Iron	Basic	NPT	Mechanical or Packing
GHC1DE9-B	1 x 1	Stainless Steel	Stainless Steel	Basic	NPT	Mechanical or Packing
GHC1 1/2GC3-B	1.5 x 1.5	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GHC1 1/2GC32-B	1.5 x 1.5	Cast Steel	Ductile Iron	Basic	NPT	Mechanical or Packing
GHC1 1/2GC9-B	1.5 x 1.5	Stainless Steel	Stainless Steel	Basic	NPT	Mechanical or Packing
GHC1 1/2GF3-B	1.5 x 1.5	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GHC1 1/2GF32-B	1.5 x 1.5	Cast Steel	Ductile Iron	Basic	NPT	Mechanical or Packing
GHC1 1/2GF9-B	1.5 x 1.5	Stainless Steel	Stainless Steel	Basic	NPT	Mechanical or Packing
GHC1 1/2GH3-B	1.5 x 1.5	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GHC1 1/2GH32-B	1.5 x 1.5	Cast Steel	Ductile Iron	Basic	NPT	Mechanical or Packing
GHC1 1/2GH9-B	1.5 x 1.5	Stainless Steel	Stainless Steel	Basic	NPT	Mechanical or Packing
GHC1 1/2GJ3-B	1.5 x 1.5	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GHC1 1/2GJ32-B	1.5 x 1.5	Cast Steel	Ductile Iron	Basic	NPT	Mechanical or Packing
GHC1 1/2GJ9-B	1.5 x 1.5	Stainless Steel	Stainless Steel	Basic	NPT	Mechanical or Packing
GHC2GC3-B	2 x 2	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GHC2GF3-B	2 x 2	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GHC2GH3-B	2 x 2	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GHC2GJ3-B	2 x 2	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GHC2JG3-B	2 x 2	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GHC2JJ3-B	2 x 2	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GHC2JL3-B	2 x 2	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GHC2JP3-B	2 x 2	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GHC2 1/2JG3-B	2.5 x 2.5	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GHC2 1/2JJ3-B	2.5 x 2.5	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GHC2 1/2JL3-B	2.5 x 2.5	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GHC2 1/2JP3-B	2.5 x 2.5	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GHC3JG3-B	3 x 3	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GHC3JG32-B	3 x 3	Cast Steel	Ductile Iron	Basic	NPT	Mechanical or Packing
GHC3JG9-B	3 x 3	Stainless Steel	Stainless Steel	Basic	NPT	Mechanical or Packing
GHC3JJ3-B	3 x 3	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GHC3JJ32-B	3 x 3	Cast Steel	Ductile Iron	Basic	NPT	Mechanical or Packing
GHC3JJ9-B	3 x 3	Stainless Steel	Stainless Steel	Basic	NPT	Mechanical or Packing
GHC3JL3-B	3 x 3	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GHC3JL32-B	3 x 3	Cast Steel	Ductile Iron	Basic	NPT	Mechanical or Packing
GHC3JL9-B	3 x 3	Stainless Steel	Stainless Steel	Basic	NPT	Mechanical or Packing
GHC3JP3-B	3 x 3	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GHC3JP32-B	3 x 3	Cast Steel	Ductile Iron	Basic	NPT	Mechanical or Packing
GHC3JP9-B	3 x 3	Stainless Steel	Stainless Steel	Basic	NPT	Mechanical or Packing
