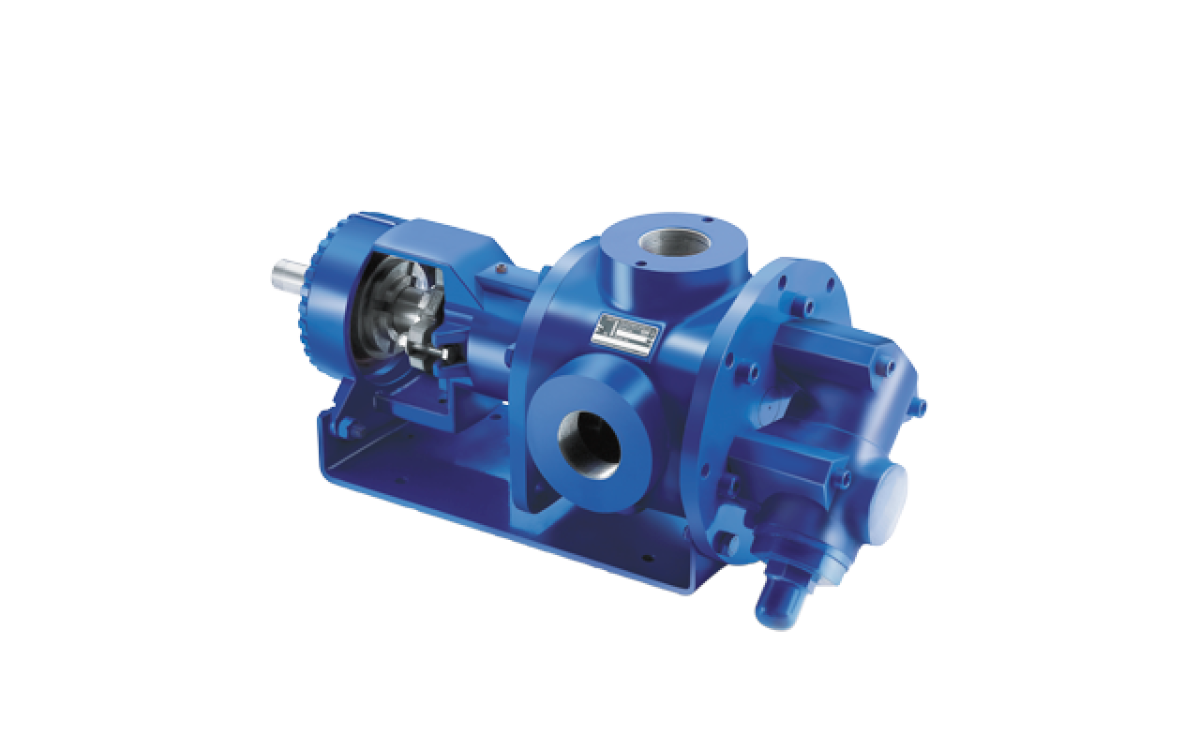

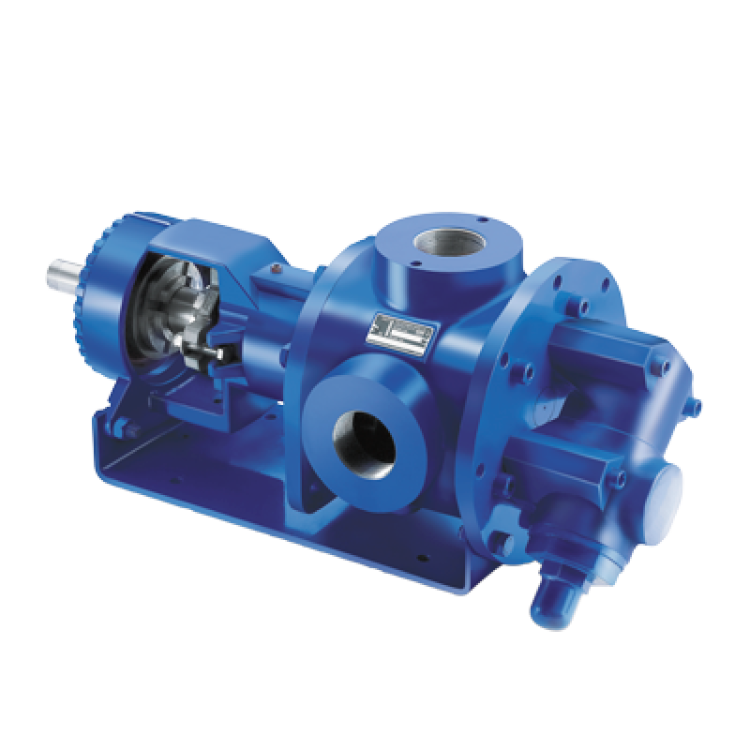

GHS SERIES (Rotary Gear Pumps)

The GHS Series of high capacity pumps is designed for continuous duty service for applications in the operating ranges noted. The units are ideal for bulk handling both thin and viscous liquids. For temperature control, backhead and housing jackets are standard; head jackets are available. Also available are carbon graphite bushings for low viscosity liquids, silicon carbide bushings for wear resistance, and numerous seal options. This heavy duty series provides superior rotor shaft support and an integral, maintenance-free radial/thrust bearing, for reduced deflection and wear.

Specifications

Size	1" (25 mm), 1-1/2" (40 mm), 2" (50 mm), 2-1/2" (60 mm), 3" (80 mm), 4" (100 mm), 5" (125 mm), 6" (150 mm)
Max Capacity	600 GPM (38 lps)
Max Viscosity	2000000 SSU (431400 cST)
Max Pressure	300 PSI (21 BAR)
Min Temperature	-60 F (-51 C)
Max Temperature	675 F (357 C)
Materials of Construction	Cast Iron, Cast Steel, Ductile Iron, Stainless Stee

Đặt hàng

Mô tả

Models: GHS1DC3-B ; GHS1DC9-B ; GHS1DE3-B ; GHS1DE9-B ; GHS1 1/2GC3-B ; GHS1 1/2GC32-B ; GHS1 1/2GC9-B ; GHS1 1/2GF-B ; GHS1 1/2GF3-B ; GHS1 1/2GF32-B ; GHS1 1/2GF9-B ; GHS1 1/2GH3-B ; GHS1 1/2GH32-B ; GHS1 1/2GH9-B ; GHS1 1/2GJ3-B ; GHS1 1/2GJ32-B ; GHS1 1/2GJ9-B ; GHS1 1/2NK3-B ; GHS2GC3-B ; GHS2GC9-B ; GHS2GF-B ; GHS2GF3-B ; GHS2GF9-B; GHS2GH3-B ; GHS2GH9-B ; GHS2GJ3-B ; GHS2GJ9-B ; GHS2JG3-B ; GHS2JG9-B ; GHS2JJ3-B; GHS2JJ9-B ; GHS2JL3-B ; GHS2JL9-B ; GHS2JP3-B ; GHS2JP9-B ; GHS2NK3-B ; GHS2NK32-B ; GHS2NK9-B ; GHS2NM3-B ; GHS2NM32-B ; GHS2NM9-B ; GHS2NP3-B ; GHS2RM3-B ; GHS2RM9-B ; GHS2 1/2JG3-B ; GHS2 1/2JJ3-B ; GHS2 1/2JL3-B ; GHS2 1/2JP3-B ; GHS2 1/2NK3-B ; GHS2 1/2NK9-B ; GHS2 1/2NM3-B ; GHS2 1/2NM9-B ; GHS2 1/2NP3-B ; GHS2 1/2NP9-B ; GHS2 1/2RM3-B ; GHS2 1/2RM32-B ; GHS2 1/2RM9-B ; GHS2 1/2RP3-B ; GHS2 1/2RP32-B ; GHS2 1/2RR3-B ; GHS3JG3-B ; GHS3JG32-B ; GHS3JG9-B ; GHS3JJ3-B ; GHS3JJ32-B ; GHS3JJ9-B ; GHS3JL3-B ; GHS3JL32-B ; GHS3JL9-B ; GHS3JP3-B ; GHS3JP32-B ; GHS3JP9-B ; GHS3NK3-B ; GHS3NK32-B ; GHS3NK9-B ; GHS3NM3-B ; GHS3NM32-B ; GHS3NM9-B ; GHS3NP3-B ; GHS3NP32-B ; GHS3NP9-B ; GHS3RM3-B ; GHS3RM32-B ; GHS3RM9-B ; GHS3RP3-B ; GHS3RP32-B ; GHS3RP9-B ; GHS3RR3-B ; GHS3RR32-B ; GHS3RR9-B ; GHS3RS3-B ; GHS3RS32-B ; GHS3SR3-B ; GHS3SU3-B ; GHS3SU4-B ; GHS4RM3-B ; GHS4RM32-B ; GHS4RM9-B ; GHS4RP3-B ; GHS4RP32-B ; GHS4RP9-B ; GHS4RR3-B ; GHS4RR32-B ; GHS4RR9-B ; GHS4RS3-B ; GHS4RS32-B ; GHS4RS9-B ; GHS4SR3-B ; GHS4SR31-B ; GHS4SU3-B ; GHS4SU31-B ; GHS5TU3-B ; GHS6SR3-B ; GHS6SR31-B ; GHS6SU3-B ; GHS6SU31-B ; GHS6TU3-B

GHS Series (G Series) Rotary Gear Positive Displacement Pumps

MODELS

Item	Size	Casing	Impeller / Rotor	Drive	Flange	Seal
GHS1DC3-B	1 x 1	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GHS1DC9-B	1 x 1	Stainless Steel	Stainless Steel	Basic	NPT	Mechanical or Packing
GHS1DE3-B	1 x 1	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GHS1DE9-B	1 x 1	Stainless Steel	Stainless Steel	Basic	NPT	Mechanical or Packing
GHS1 1/2GC3-B	1.5 x 1.5	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GHS1 1/2GC32-B	1.5 x 1.5	Cast Steel	Ductile Iron	Basic	NPT	Mechanical or Packing
GHS1 1/2GC9-B	1.5 x 1.5	Stainless Steel	Stainless Steel	Basic	NPT	Mechanical or Packing
GHS1 1/2GF-B	1.5 x 1.5	Cast Iron	Ductile Iron	Basic	ASA	Packing
GHS1 1/2GF3-B	1.5 x 1.5	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GHS1 1/2GF32-B	1.5 x 1.5	Cast Steel	Ductile Iron	Basic	NPT	Mechanical or Packing
GHS1 1/2GF9-B	1.5 x 1.5	Stainless Steel	Stainless Steel	Basic	NPT	Mechanical or Packing
GHS1 1/2GH3-B	1.5 x 1.5	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GHS1 1/2GH32-B	1.5 x 1.5	Cast Steel	Ductile Iron	Basic	NPT	Mechanical or Packing
GHS1 1/2GH9-B	1.5 x 1.5	Stainless Steel	Stainless Steel	Basic	NPT	Mechanical or Packing
GHS1 1/2GJ3-B	1.5 x 1.5	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GHS1 1/2GJ32-B	1.5 x 1.5	Cast Steel	Ductile Iron	Basic	NPT	Mechanical or Packing
GHS1 1/2GJ9-B	1.5 x 1.5	Stainless Steel	Stainless Steel	Basic	NPT	Mechanical or Packing
GHS1 1/2NK3-B	1.5 x 1.5	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GHS2GC3-B	2 x 2	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GHS2GC9-B	2 x 2	Stainless Steel	Stainless Steel	Basic	NPT	Mechanical or Packing
GHS2GF-B	2 x 2	Cast Iron	Ductile Iron	Basic	ASA	Packing
GHS2GF3-B	2 x 2	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GHS2GF9-B	2 x 2	Stainless Steel	Stainless Steel	Basic	NPT	Mechanical or Packing
GHS2GH3-B	2 x 2	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GHS2GH9-B	2 x 2	Stainless Steel	Stainless Steel	Basic	NPT	Mechanical or Packing
GHS2GJ3-B	2 x 2	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GHS2GJ9-B	2 x 2	Stainless Steel	Stainless Steel	Basic	NPT	Mechanical or Packing
GHS2JG3-B	2 x 2	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GHS2JG9-B	2 x 2	Stainless Steel	Stainless Steel	Basic	NPT	Mechanical or Packing
GHS2JJ3-B	2 x 2	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GHS2JJ9-B	2 x 2	Stainless Steel	Stainless Steel	Basic	NPT	Mechanical or Packing
GHS2JL3-B	2 x 2	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GHS2JL9-B	2 x 2	Stainless Steel	Stainless Steel	Basic	NPT	Mechanical or Packing
GHS2JP3-B	2 x 2	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GHS2JP9-B	2 x 2	Stainless Steel	Stainless Steel	Basic	NPT	Mechanical or Packing
GHS2NK3-B	2 x 2	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GHS2NK32-B	2 x 2	Cast Steel	Ductile Iron	Basic	NPT	Mechanical or Packing
GHS2NK9-B	2 x 2	Stainless Steel	Stainless Steel	Basic	NPT	Mechanical or Packing
GHS2NM3-B	2 x 2	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GHS2NM32-B	2 x 2	Cast Steel	Ductile Iron	Basic	NPT	Mechanical or Packing
GHS2NM9-B	2 x 2	Stainless Steel	Stainless Steel	Basic	NPT	Mechanical or Packing
GHS2NP3-B	2 x 2	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GHS2RM3-B	2 x 2	Cast Iron	Ductile Iron	Basic	ASA	Mechanical or Packing
GHS2RM9-B	2 x 2	Stainless Steel	Stainless Steel	Basic	ASA	Mechanical or Packing
GHS2 1/2JG3-B	2.5 x 2.5	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GHS2 1/2JJ3-B	2.5 x 2.5	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GHS2 1/2JL3-B	2.5 x 2.5	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GHS2 1/2JP3-B	2.5 x 2.5	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GHS2 1/2NK3-B	2.5 x 2.5	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GHS2 1/2NK9-B	2.5 x 2.5	Stainless Steel	Stainless Steel	Basic	NPT	Mechanical or Packing
GHS2 1/2NM3-B	2.5 x 2.5	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GHS2 1/2NM9-B	2.5 x 2.5	Stainless Steel	Stainless Steel	Basic	NPT	Mechanical or Packing
GHS2 1/2NP3-B	2.5 x 2.5	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GHS2 1/2NP9-B	2.5 x 2.5	Stainless Steel	Stainless Steel	Basic	NPT	Mechanical or Packing
GHS2 1/2RM3-B	2.5 x 2.5	Cast Iron	Ductile Iron	Basic	ASA	Mechanical or Packing
GHS2 1/2RM32-B	2.5 x 2.5	Cast Steel	Ductile Iron	Basic	ASA	Mechanical or Packing
GHS2 1/2RM9-B	2.5 x 2.5	Stainless Steel	Stainless Steel	Basic	ASA	Mechanical or Packing
GHS2 1/2RP3-B	2.5 x 2.5	Cast Iron	Ductile Iron	Basic	ASA	Mechanical or Packing
GHS2 1/2RP32-B	2.5 x 2.5	Cast Steel	Ductile Iron	Basic	ASA	Mechanical or Packing
GHS2 1/2RR3-B	2.5 x 2.5	Cast Iron	Ductile Iron	Basic	ASA	Mechanical or Packing
GHS3JG3-B	3 x 3	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GHS3JG32-B	3 x 3	Cast Steel	Ductile Iron	Basic	NPT	Mechanical or Packing
GHS3JG9-B	3 x 3	Stainless Steel	Stainless Steel	Basic	NPT	Mechanical or Packing
GHS3JJ3-B	3 x 3	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GHS3JJ32-B	3 x 3	Cast Steel	Ductile Iron	Basic	NPT	Mechanical or Packing
GHS3JJ9-B	3 x 3	Stainless Steel	Stainless Steel	Basic	NPT	Mechanical or Packing
GHS3JL3-B	3 x 3	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GHS3JL32-B	3 x 3	Cast Steel	Ductile Iron	Basic	NPT	Mechanical or Packing
GHS3JL9-B	3 x 3	Stainless Steel	Stainless Steel	Basic	NPT	Mechanical or Packing
GHS3JP3-B	3 x 3	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GHS3JP32-B	3 x 3	Cast Steel	Ductile Iron	Basic	NPT	Mechanical or Packing
GHS3JP9-B	3 x 3	Stainless Steel	Stainless Steel	Basic	NPT	Mechanical or Packing
GHS3NK3-B	3 x 3	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GHS3NK32-B	3 x 3	Cast Steel	Ductile Iron	Basic	NPT	Mechanical or Packing
GHS3NK9-B	3 x 3	Stainless Steel	Stainless Steel	Basic	NPT	Mechanical or Packing
GHS3NM3-B	3 x 3	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GHS3NM32-B	3 x 3	Cast Steel	Ductile Iron	Basic	NPT	Mechanical or Packing
GHS3NM9-B	3 x 3	Stainless Steel	Stainless Steel	Basic	NPT	Mechanical or Packing
GHS3NP3-B	3 x 3	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GHS3NP32-B	3 x 3	Cast Steel	Ductile Iron	Basic	NPT	Mechanical or Packing
GHS3NP9-B	3 x 3	Stainless Steel	Stainless Steel	Basic	NPT	Mechanical or Packing
GHS3RM3-B	3 x 3	Cast Iron	Ductile Iron	Basic	ASA	Mechanical or Packing
GHS3RM32-B	3 x 3	Cast Steel	Ductile Iron	Basic	ASA	Mechanical or Packing
GHS3RM9-B	3 x 3	Stainless Steel	Stainless Steel	Basic	ASA	Mechanical or Packing
GHS3RP3-B	3 x 3	Cast Iron	Ductile Iron	Basic	ASA	Mechanical or Packing
GHS3RP32-B	3 x 3	Cast Steel	Ductile Iron	Basic	ASA	Mechanical or Packing
GHS3RP9-B	3 x 3	Stainless Steel	Stainless Steel	Basic	ASA	Mechanical or Packing
GHS3RR3-B	3 x 3	Cast Iron	Ductile Iron	Basic	ASA	Mechanical or Packing
GHS3RR32-B	3 x 3	Cast Steel	Ductile Iron	Basic	ASA	Mechanical or Packing
GHS3RR9-B	3 x 3	Stainless Steel	Stainless Steel	Basic	ASA	Mechanical or Packing
GHS3RS3-B	3 x 3	Cast Iron	Ductile Iron	Basic	ASA	Mechanical or Packing
GHS3RS32-B	3 x 3	Cast Steel	Ductile Iron	Basic	ASA	Mechanical or Packing
GHS3SR3-B	3 x 3	Cast Iron	Ductile Iron	Basic	ASA	Mechanical or Packing
GHS3SU3-B	3 x 3	Cast Iron	Ductile Iron	Basic	ASA	Mechanical or Packing
GHS3SU4-B	3 x 3	Cast Iron	Ductile Iron	Basic	ASA	Packing
GHS4RM3-B	4 x 4	Cast Iron	Ductile Iron	Basic	ASA	Mechanical or Packing
GHS4RM32-B	4 x 4	Cast Steel	Ductile Iron	Basic	ASA	Mechanical or Packing
GHS4RM9-B	4 x 4	Stainless Steel	Stainless Steel	Basic	ASA	Mechanical or Packing
GHS4RP3-B	4 x 4	Cast Iron	Ductile Iron	Basic	ASA	Mechanical or Packing
GHS4RP32-B	4 x 4	Cast Steel	Ductile Iron	Basic	ASA	Mechanical or Packing
GHS4RP9-B	4 x 4	Stainless Steel	Stainless Steel	Basic	ASA	Mechanical or Packing
GHS4RR3-B	4 x 4	Cast Iron	Ductile Iron	Basic	ASA	Mechanical or Packing
GHS4RR32-B	4 x 4	Cast Steel	Ductile Iron	Basic	ASA	Mechanical or Packing
GHS4RR9-B	4 x 4	Stainless Steel	Stainless Steel	Basic	ASA	Mechanical or Packing
GHS4RS3-B	4 x 4	Cast Iron	Ductile Iron	Basic	ASA	Mechanical or Packing
GHS4RS32-B	4 x 4	Cast Steel	Ductile Iron	Basic	ASA	Mechanical or Packing
GHS4RS9-B	4 x 4	Stainless Steel	Stainless Steel	Basic	ASA	Mechanical or Packing
GHS4SR3-B	4 x 4	Cast Iron	Ductile Iron	Basic	ASA	Mechanical or Packing
GHS4SR31-B	4 x 4			Basic		Mechanical or Packing
GHS4SU3-B	4 x 4	Cast Iron	Ductile Iron	Basic	ASA	Mechanical or Packing
GHS4SU31-B	4 x 4			Basic		Mechanical or Packing
GHS5TU3-B	5 x 5	Cast Iron	Ductile Iron	Basic	ASA	Mechanical or Packing
GHS6SR3-B	6 x 6	Cast Iron	Ductile Iron	Basic	ASA	Mechanical or Packing
GHS6SR31-B	6 x 6			Basic		Mechanical or Packing
GHS6SU3-B	6 x 6	Cast Iron	Ductile Iron	Basic	ASA	Mechanical or Packing
GHS6SU31-B	6 x 6			Basic		Mechanical or Packing
GHS6TU3-B	6 x 6	Cast Iron	Ductile Iron	Basic	ASA	Mechanical or Packing
