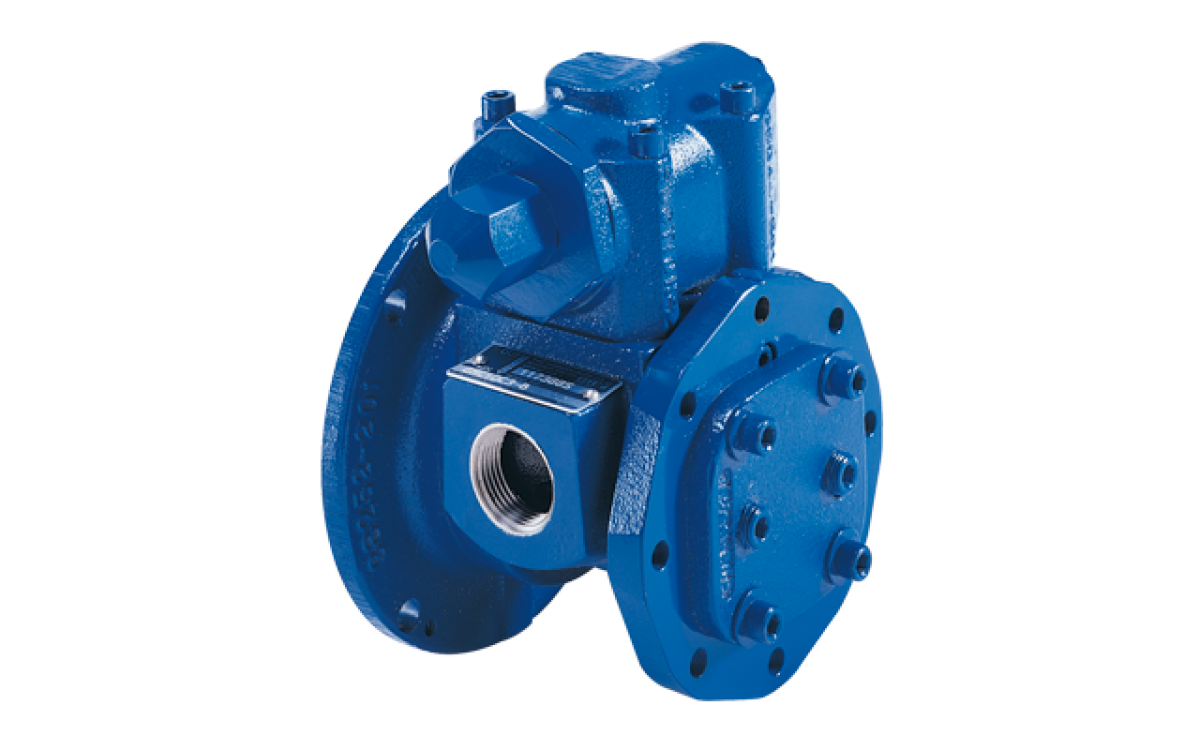

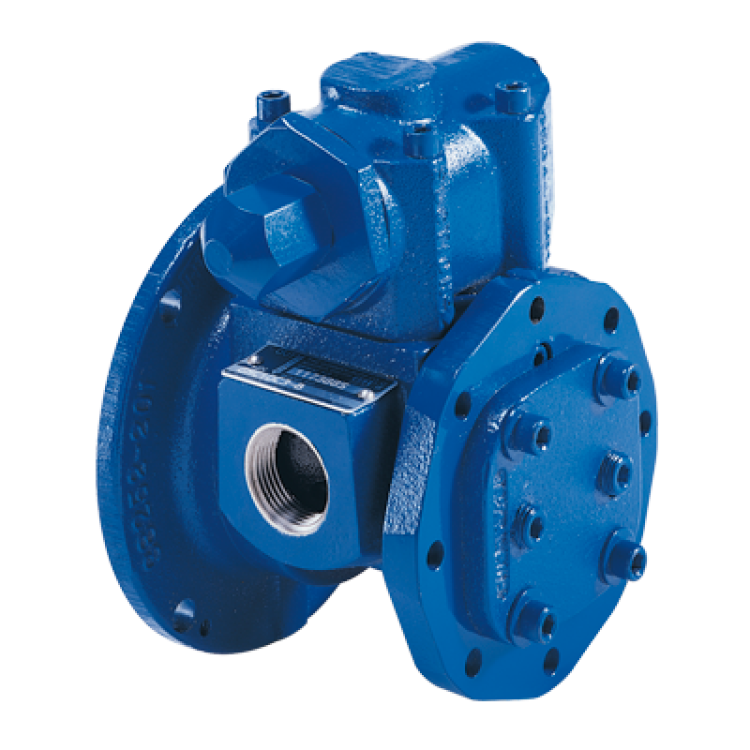

GMC Series (Rotary Gear Pumps)

The GMC Series is designed for intermittent or medium duty service for applications in the noted operating ranges. Directly connecting to other pieces of equipment provides an extremely compact system design. The six sizes of Gorman-Rupp close-coupled pumps connect to standard NEMA "C" flanges. Rotor shaft bores accept standard motor shafts; 5/8" standard (7/8", 1 1/8" and 1 3/8" are optional). Metric couplings are also available. At synchronous speeds, extra drive equipment, including couplings or outboard bearings, are not required. For continuous duty service, or for handling viscous liquids, see the heavy duty GHC section.

Specifications

Size	1" (25 mm), 1-1/2" (40 mm), 2" (50 mm)
Max Capacity	38 GPM (2 lps)
Max Viscosity	250000 SSU (53925 cST)
Max Pressure	200 PSI (14 BAR)
Min Temperature	-60 F (-51 C)
Max Temperature	300 F (149 C)
Materials of Construction	Cast Iron

Đặt hàng

Mô tả

Model: GMC1DC3-B ; GMC1DE3 /40C ; GMC1DE3-B ; GMC1DE3-E1.5 1P ; GMC1DE3-E1.5 3P ; GMC1DE3-X1.5 1P ; GMC1DE3-X1.5 3P ; GMC1 1/2GC3-B ; GMC1 1/2GF-B ; GMC1 1/2GF3-B ; GMC1 1/2GH3-B ; GMC1 1/2GJ3-B ; GMC2GC3-B ; GMC2GF3-B ; GMC2GH3-B ; GMC2GJ3-B

GMC Series (G Series) Rotary Gear Positive Displacement Pumps

MODELS

Item	Size	Casing	Impeller / Rotor	Drive	Flange	Seal
GMC1 1/2GC3-B	1.5 x 1.5	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GMC1 1/2GF-B	1.5 x 1.5	Cast Iron	Ductile Iron	Basic	ASA	Buna-N
GMC1 1/2GF3-B	1.5 x 1.5	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GMC1 1/2GH3-B	1.5 x 1.5	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GMC1 1/2GJ3-B	1.5 x 1.5	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GMC1DC3-B	1 x 1	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GMC1DE3 /40C	1 x 1	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GMC1DE3-B	1 x 1	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GMC1DE3-E1.5 1P	1 x 1	Cast Iron	Ductile Iron	Electric Motor	NPT	Mechanical or Packing
GMC1DE3-E1.5 3P	1 x 1	Cast Iron	Ductile Iron	Electric Motor	NPT	Mechanical or Packing
GMC1DE3-X1.5 1P	1 x 1	Cast Iron	Ductile Iron	Electric Motor	NPT	Mechanical or Packing
GMC1DE3-X1.5 3P	1 x 1	Cast Iron	Ductile Iron	Electric Motor	NPT	Mechanical or Packing
GMC2GC3-B	2 x 2	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GMC2GF3-B	2 x 2	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GMC2GH3-B	2 x 2	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GMC2GJ3-B	2 x 2	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
