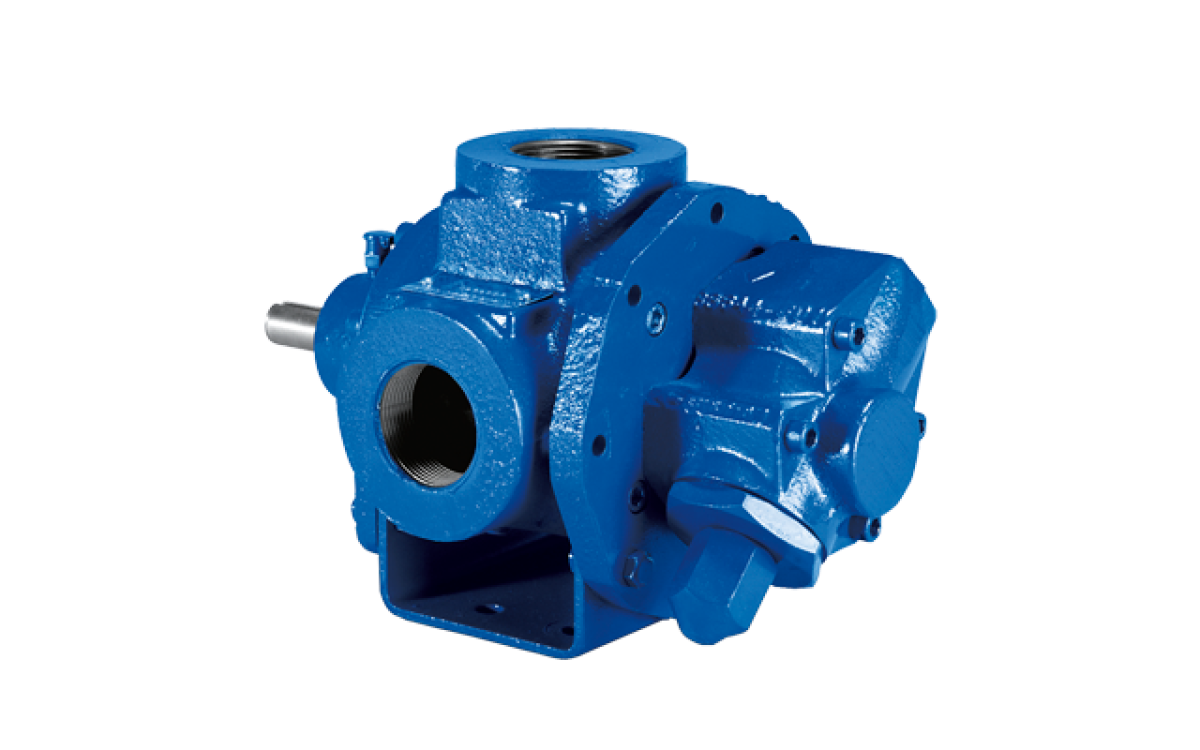

GMS SERIES (Rotary Gear Pumps)(MÁY BƠM BÁNH RĂNG)

The GMS Series is designed for intermittent or medium duty service for applications in the operating ranges noted. These units are available with head and backhead jackets for temperature control, carbon graphite bushings for low viscosity liquids, silicon carbide bushings for wear resistance. For continuous duty service, or for handling viscous liquids, see heavy duty GHC pumps.

Specifications

Size	1" (25 mm), 1-1/2" (40 mm), 2" (50 mm), 2-1/2" (60 mm), 3" (80 mm), 4" (100 mm), 5" (125 mm), 6" (150 mm)
Max Capacity	600 GPM (38 lps)
Max Viscosity	250000 SSU (53925 cST)
Max Pressure	150 PSI (11 BAR)
Min Temperature	-60 F (-51 C)
Max Temperature	450 F (232 C)
Materials of Construction	Cast Iron

Đặt hàng

Mô tả

Model: GMS1DC3-B ; GMS1DE3 /40C70A ; GMS1DE3-B ; GMS1 1/2GC3-B ; GMS1 1/2GF-B ; GMS1 1/2GF3-B ; GMS1 1/2GH3-B ; GMS1 1/2GJ3-B ; GMS1 1/2NK3-B ; GMS2GC3-B ; GMS2GF3-B ; GMS2GH3-B ; GMS2GJ3-B ; GMS2JG3-B ; GMS2JJ3-B ; GMS2JL3-B ; GMS2JP3-B ; GMS2NK3-B ; GMS2NM3-B ; GMS2NP3-B ; GMS2RM3-B ; GMS2 1/2JG3-B ; GMS2 1/2JJ3-B ; GMS2 1/2JL3-B ; GMS2 1/2JP3-B ; GMS2 1/2NK3-B ; GMS2 1/2NM3-B ; GMS2 1/2NP3-B ; GMS2 1/2RM3-B ; GMS2 1/2RP3-B ; GMS2 1/2RR3-B ; GMS3JG3-B ; GMS3JJ3-B ; GMS3JL3-B ; GMS3JP3-B ; GMS3NK3-B ; GMS3NM3-B ; GMS3NP3-B ; GMS3RM3-B ; GMS3RP3-B ; GMS3RR3-B ; GMS3RS3-B ; GMS3SR3-B ; GMS3SU3-B ; GMS4RM3-B ; GMS4RP3-B ; GMS4RR3-B ; GMS4RS3-B ; GMS4SR3-B ; GMS4SU3-B ; GMS5TU3-B ; GMS6SR3-B ; GMS6SU3-B ; GMS6TU3-B

GMS Series (G Series) Rotary Gear Positive Displacement Pumps

MODELS

Item	Size	Casing	Impeller / Rotor	Drive	Flange	Seal
GMS1DC3-B	1 x 1	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GMS1DE3 /40C70A	1 x 1	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GMS1DE3-B	1 x 1	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GMS1 1/2GC3-B	1.5 x 1.5	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GMS1 1/2GF-B	1.5 x 1.5	Cast Iron	Ductile Iron	Basic	ASA	Packing
GMS1 1/2GF3-B	1.5 x 1.5	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GMS1 1/2GH3-B	1.5 x 1.5	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GMS1 1/2GJ3-B	1.5 x 1.5	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GMS1 1/2NK3-B	1.5 x 1.5	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GMS2GC3-B	2 x 2	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GMS2GF3-B	2 x 2	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GMS2GH3-B	2 x 2	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GMS2GJ3-B	2 x 2	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GMS2JG3-B	2 x 2	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GMS2JJ3-B	2 x 2	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GMS2JL3-B	2 x 2	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GMS2JP3-B	2 x 2	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GMS2NK3-B	2 x 2	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GMS2NM3-B	2 x 2	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GMS2NP3-B	2 x 2	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GMS2RM3-B	2 x 2	Cast Iron	Ductile Iron	Basic	ASA	Mechanical or Packing
GMS2 1/2JG3-B	2.5 x 2.5	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GMS2 1/2JJ3-B	2.5 x 2.5	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GMS2 1/2JL3-B	2.5 x 2.5	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GMS2 1/2JP3-B	2.5 x 2.5	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GMS2 1/2NK3-B	2.5 x 2.5	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GMS2 1/2NM3-B	2.5 x 2.5	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GMS2 1/2NP3-B	2.5 x 2.5	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GMS2 1/2RM3-B	2.5 x 2.5	Cast Iron	Ductile Iron	Basic	ASA	Mechanical or Packing
GMS2 1/2RP3-B	2.5 x 2.5	Cast Iron	Ductile Iron	Basic	ASA	Mechanical or Packing
GMS2 1/2RR3-B	2.5 x 2.5	Cast Iron	Ductile Iron	Basic	ASA	Mechanical or Packing
GMS3JG3-B	3 x 3	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GMS3JJ3-B	3 x 3	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GMS3JL3-B	3 x 3	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GMS3JP3-B	3 x 3	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GMS3NK3-B	3 x 3	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GMS3NM3-B	3 x 3	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GMS3NP3-B	3 x 3	Cast Iron	Ductile Iron	Basic	NPT	Mechanical or Packing
GMS3RM3-B	3 x 3	Cast Iron	Ductile Iron	Basic	ASA	Mechanical or Packing
GMS3RP3-B	3 x 3	Cast Iron	Ductile Iron	Basic	ASA	Mechanical or Packing
GMS3RR3-B	3 x 3	Cast Iron	Ductile Iron	Basic	ASA	Mechanical or Packing
GMS3RS3-B	3 x 3	Cast Iron	Ductile Iron	Basic	ASA	Mechanical or Packing
GMS3SR3-B	3 x 3	Cast Iron	Ductile Iron	Basic	ASA	Mechanical or Packing
GMS3SU3-B	3 x 3	Cast Iron	Ductile Iron	Basic	ASA	Mechanical or Packing
GMS4RM3-B	4 x 4	Cast Iron	Ductile Iron	Basic	ASA	Mechanical or Packing
GMS4RP3-B	4 x 4	Cast Iron	Ductile Iron	Basic	ASA	Mechanical or Packing
GMS4RR3-B	4 x 4	Cast Iron	Ductile Iron	Basic	ASA	Mechanical or Packing
GMS4RS3-B	4 x 4	Cast Iron	Ductile Iron	Basic	ASA	Mechanical or Packing
GMS4SR3-B	4 x 4	Cast Iron	Ductile Iron	Basic	ASA	Mechanical or Packing
GMS4SU3-B	4 x 4	Cast Iron	Ductile Iron	Basic	ASA	Mechanical or Packing
GMS5TU3-B	5 x 5	Cast Iron	Ductile Iron	Basic	ASA	Mechanical or Packing
GMS6SR3-B	6 x 6	Cast Iron	Ductile Iron	Basic	ASA	Mechanical or Packing
GMS6SU3-B	6 x 6	Cast Iron	Ductile Iron	Basic	ASA	Mechanical or Packing
GMS6TU3-B	6 x 6	Cast Iron	Ductile Iron	Basic	ASA	Mechanical or Packing
