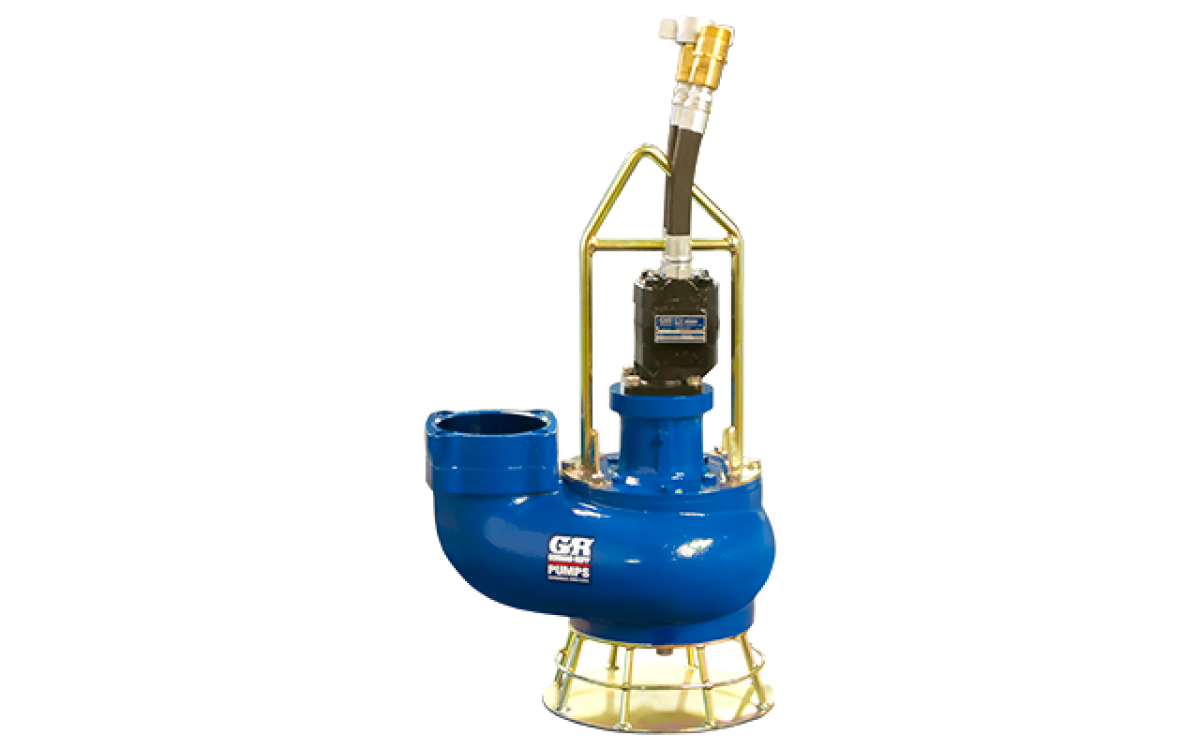

HS SERIES® (Submersible Pumps (60 Hz))(MÁY BƠM THỦY LỰC)

Gorman-Rupp hydraulic submersible pumps are designed for trash-handling, dewatering applications and for pumping dirty liquids such as mining and paper plant wastes. They are also excellent for pumping sewage from digester and holding tanks as well as sewer bypass. Because they operate without using electricity, they are well suited for applications where electricity is hazardous.

Model: HSV3A1-HYD ; HSV3B31-HYD ; HSV4A31-HYD ; HSV6A31-HYD ; HSV6B31-HYD

Specifications

Size	3" (80 mm), 4" (100 mm), 6" (150 mm)
Max Capacity	1600 GPM (101 lps)
Max Head	175' (53 m)
Max Solids	5" (127 mm)
Max Temperature	170 F (77 C)
Materials of Construction	Aluminum, Ductile Iron

Đặt hàng

Mô tả

Model: HSV3A1-HYD ; HSV3B31-HYD ; HSV4A31-HYD ; HSV6A31-HYD ; HSV6B31-HYD

FEATURES

Efficient Pumping

Pump speed can be varied to meet job requirements, providing maximum efficiency and minimal fuel consumption. This makes these pumps much more efficient than constant-speed, generator-driven electric submersibles.

Ideal for Sewage Bypass

Six-inch pump is designed to fit through 24" manholes. No electric hazards. No suction limitations.

Power Units

Hydraulic power units for 3" pumps are equipped with 13hp Honda gasoline or 10 hp Yanmar diesel engines on wheel kits. Power units for 4" and 6" sizes are equipped with a 63 hp Deutz diesel engine and skid base as standard.

MODELS

Item	Size	Casing	Impeller / Rotor	Drive	Flange	Seal
HSV3A1-HYD	3	Aluminum	Stainless Steel	Hydraulic	NPT	Carbon/Ceramic
HSV3B31-HYD	3	Ductile Iron	Stainless Steel	Hydraulic	NPT	Carbon/Ceramic
HSV4A31-HYD	4	Ductile Iron	CD4MCu	Hydraulic	NPT	Carbon/Ceramic
HSV6A31-HYD	6	Ductile Iron	CD4MCu	Hydraulic	NPT	Carbon/Ceramic
HSV6B31-HYD	6	Ductile Iron	CD4MCu	Hydraulic	NPT	Carbon/Ceramic
