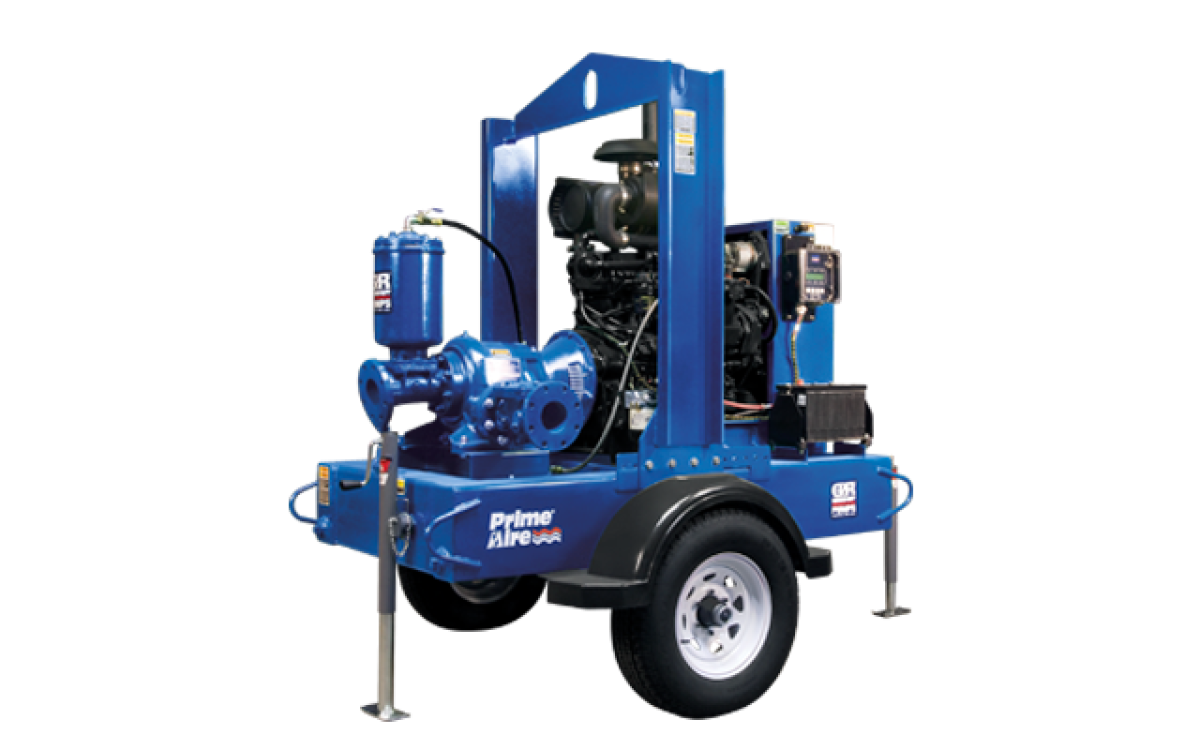

PA Series® (Prime Aire) (Priming Assisted (Dry Prime) Pumps)

Prime Aire® pumps feature Gorman-Rupp's patented priming system. The system uses a venturi and compressor, eliminating the leaks associated with traditional vacuum-assisted pumps. An oversized, oil-lubricated mechanical seal allows the pump to run dry continuously without damage. For positive, reliable priming time after time, Gorman-Rupp Prime Aire pumps are the ones you can count on.

Specifications

Size	4" (100 mm), 6" (150 mm), 8" (200 mm), 10" (250 mm), 12" (300 mm), 14" (350 mm)
Max Capacity	6320 GPM (399 lps)
Max Head	420' (128 m)
Max Solids	3" (76 mm)
Max Temperature	160 F (71 C)
Materials of Construction	Cast Iron, Ductile Iron

Đặt hàng

Mô tả

MODELS:

PAV3A60C-B ; PAV3B60C-3TNV70 ; PAV3B60C-3TNV80F FT4 ; PAV3C60C-B-E10 460/3 ; PAV3C60C-B-E10 575/3 ; PA4A60-4024T ; PA4A60-4045T ; PA4A60C-4LE2T FT4 ; PA4A60C-4LE2T FT4-ESP ; PA4A60C-B-E30 460/3 ; PA4A60C-B-E30 575/3 ; PA4A60C-F3L ; PA4A60C-QSF2.8P FT4 ; PA4E71C-3TNV88-ESP ; PA4E71C-3TNV88F FT4-ESP ; PA4B60-4045H ; PA6A60-4045D ; PA6A60-F4L ; PA6A60-F5L ; PA6B60-6068H ; PA6C60-4045T ; PA6C60-4045T PSO ; PA6C60-4045T-ESP ; PA6C60C-B-E50 460/3 ; PA6C60C-F4L ; PA6C60C-F5L ; PA6D60-4045T ; PA6D60-4045T FT4 ; PA6D60-4045T FT4-ESP ; PA6D60C-B-E50 460/3 ; PA6C60-4045H ; PA6C60C-F6L ; PA6H60-4045H FT4 ; PA6H60-4045H FT4-ESP ; PA8E60-4045H FT4 ; PA10A60-4045H ; PA10A60-4045H FT4 ; PA10A60-4045H-ESP ; PA10A60-B-E100 3P ; PA12A60-B ; PA12A60-B-6068H ; PA12A60-B-6068H-ESP ; PA12A60-B-E125 3P ; PA12A60-B-QSB4.5P ; PA14B60-B-6090H ; PA14B60-B-6090H FT4 ; PA14B60C-B

PA Series (Prime Aire) Priming Assisted Dry Prime Pumps

FEATURES

Dry Run Capability

A dry run capability is designed into the Prime AireÂ® system. An oversized, oil-lubricated mechanical seal allows the pump to run dry continuously without damage. For positive, reliable priming time after time, Gorman-Rupp Prime Aire pumps are the ones you can count on.

Dual-Suction Side Capability

Model PA6C features a removable cover plate and adjustable/replaceable wearplate.

Compressor-Over-Pump

Several popular Prime AireÂ® models are available in a "Compressor-Over-Pump" arrangement. This innovative configuration offers a compact, flexible design while allowing ease of operation and servicing when needed.

Abrasive Handling Seal

Prime AireÂ® pumps are equipped with oversized, mechanical, oil-lubricated, double-floating, self-aligning seals with silicon carbide rotating and stationary faces that are designed to take the wear and tear of pumping solids, slurries and other abrasives.

Standard Auto-Start Controls

Auto-Start control starts and stops the pump in response to a liquid level. The pump only starts when there is water to pump and turns itself off when the water reaches the desired level. There is never any need to waste fuel and add to costly engine overhauls.

RESOURCES

Prime Aire & Prime Aire Plus Brochure

MODELS

Item	Size	Casing	Impeller / Rotor	Drive	Flange	Seal
PAV3A60C-B	3 x 3	Cast Iron	Ductile Iron	Basic	ASA	Silicon Carbide
PAV3B60C-3TNV70	3 x 3	Cast Iron	Ductile Iron	Diesel Engine	ASA	Silicon Carbide
PAV3B60C-3TNV80F FT4	3 x 3	Cast Iron	Ductile Iron	Diesel Engine	ASA	Silicon Carbide
PAV3C60C-B-E10 460/3	3 x 3	Cast Iron	Ductile Iron	Electric Motor	ASA	Silicon Carbide
PAV3C60C-B-E10 575/3	3 x 3	Cast Iron	Ductile Iron	Electric Motor	ASA	Silicon Carbide
PA4A60-4024T	4 x 4	Cast Iron	Ductile Iron	Diesel Engine	ASA	Silicon Carbide
PA4A60-4045T	4 x 4	Cast Iron	Ductile Iron	Diesel Engine	ASA	Silicon Carbide
PA4A60C-4LE2T FT4	4 x 4	Cast Iron	Ductile Iron	Diesel Engine	ASA	Silicon Carbide
PA4A60C-4LE2T FT4-ESP	4 x 4	Cast Iron	Ductile Iron	Diesel Engine	ASA	Silicon Carbide
PA4A60C-B-E30 460/3	4 x 4	Cast Iron	Ductile Iron	Electric Motor	ASA	Silicon Carbide
PA4A60C-B-E30 575/3	4 x 4	Cast Iron	Ductile Iron	Electric Motor	ASA	Silicon Carbide
PA4A60C-F3L	4 x 4	Cast Iron	Ductile Iron	Diesel Engine	ASA	Silicon Carbide
PA4A60C-QSF2.8P FT4	4 x 4	Cast Iron	Ductile Iron	Diesel Engine	ASA	Silicon Carbide
PA4E71C-3TNV88-ESP	4 x 4	Cast Iron	Ductile Iron	Diesel Engine SP	ASA	Silicon Carbide
PA4E71C-3TNV88F FT4-ESP	4 x 4	Cast Iron	ADI	Diesel Engine	ASA	Silicon Carbide
PA4B60-4045H	6 x 4	Cast Iron	Cast Iron	Diesel Engine	ASA	Silicon Carbide
PA6A60-4045D	6 x 6	Cast Iron	Ductile Iron	Diesel Engine	ASA	Silicon Carbide
PA6A60-F4L	6 x 6	Cast Iron	Ductile Iron	Diesel Engine	ASA	Silicon Carbide
PA6A60-F5L	6 x 6	Cast Iron	Ductile Iron	Diesel Engine	ASA	Silicon Carbide
PA6B60-6068H	6 x 6	Cast Iron	Ductile Iron	Diesel Engine	ASA	Silicon Carbide
PA6C60-4045T	6 x 6	Ductile Iron	Ductile Iron	Diesel Engine	ASA	Silicon Carbide
PA6C60-4045T PSO	6 x 6	Ductile Iron	Ductile Iron	Diesel Engine	ASA	Silicon Carbide
PA6C60-4045T-ESP	6 x 6	Ductile Iron	Ductile Iron	Diesel Engine SP	ASA	Silicon Carbide
PA6C60C-B-E50 460/3	6 x 6	Ductile Iron	Ductile Iron	Electric Motor	ASA	Silicon Carbide
PA6C60C-F4L	6 x 6	Ductile Iron	Ductile Iron	Diesel Engine	ASA	Silicon Carbide
PA6C60C-F5L	6 x 6	Ductile Iron	Ductile Iron	Diesel Engine	ASA	Silicon Carbide
PA6D60-4045T	6 x 6	Cast Iron	Ductile Iron	Diesel Engine	ASA	Silicon Carbide
PA6D60-4045T FT4	6 x 6	Cast Iron	Ductile Iron	Diesel Engine	ASA	Silicon Carbide
PA6D60-4045T FT4-ESP	6 x 6	Cast Iron	Ductile Iron	Diesel Engine	NPT	Silicon Carbide
PA6D60C-B-E50 460/3	6 x 6	Cast Iron	Ductile Iron	Electric Motor	ASA	Silicon Carbide
PA6C60-4045H	8 x 6	Ductile Iron	Ductile Iron	Diesel Engine	ASA	Silicon Carbide
PA6C60C-F6L	8 x 6	Ductile Iron	Ductile Iron	Diesel Engine	ASA	Silicon Carbide
PA6H60-4045H FT4	8 x 6	Ductile Iron	Ductile Iron	Diesel Engine	ASA	Silicon Carbide
PA6H60-4045H FT4-ESP	8 x 6	Ductile Iron	Ductile Iron	Diesel Engine SP	ASA	Silicon Carbide
PA8E60-4045H FT4	8 x 8	Ductile Iron	Ductile Iron	Diesel Engine	ASA	Silicon Carbide
PA10A60-4045H	10 x 10	Cast Iron	Ductile Iron	Diesel Engine	ASA	Silicon Carbide
PA10A60-4045H FT4	10 x 10	Cast Iron	Ductile Iron	Diesel Engine	ASA	Silicon Carbide
PA10A60-4045H-ESP	10 x 10	Cast Iron	Ductile Iron	Diesel Engine SP	ASA	Silicon Carbide
PA10A60-B-E100 3P	10 x 10	Cast Iron	Ductile Iron	Electric Motor	ASA	Silicon Carbide
PA12A60-B	12 x 12	Cast Iron	Ductile Iron	Basic	ASA	Silicon Carbide
PA12A60-B-6068H	12 x 12	Cast Iron	Ductile Iron	Diesel Engine	ASA	Silicon Carbide
PA12A60-B-6068H-ESP	12 x 12	Cast Iron	Ductile Iron	Diesel Engine SP	ASA	Silicon Carbide
PA12A60-B-E125 3P	12 x 12	Cast Iron	Ductile Iron	Electric Motor	ASA	Silicon Carbide
PA12A60-B-QSB4.5P	12 x 12	Cast Iron	Ductile Iron	Diesel Engine	ASA	Silicon Carbide
PA14B60-B-6090H	14 x 14	Ductile Iron	Ductile Iron	Diesel Engine	ASA	Silicon Carbide
PA14B60-B-6090H FT4	14 x 14	Ductile Iron	Ductile Iron	Diesel Engine	ASA	Silicon Carbide
PA14B60C-B	14 x 14	Ductile Iron	Ductile Iron	Basic	ASA Spool	Silicon Carbide
