PA SERIES SILENT PUMP (Priming Assisted (Dry Prime) Pumps)

Models:

PA4E71C-3TNV88-ESP ; PA6C60-4045T-ESP ; PA6H60-4045H FT4-ESP ; PA10A60-4045H-ESP ; PA12A60-B-6068H-ESP

Specifications

Size	4" (100 mm), 6" (150 mm), 10" (250 mm), 12" (300 mm)
Max Capacity	6200 GPM (391 lps)
Max Head	195' (59 m)
Max Solids	3-1/4" (83 mm)
Materials of Construction	Cast Iron, Ductile Iron

Đặt hàng

Mô tả

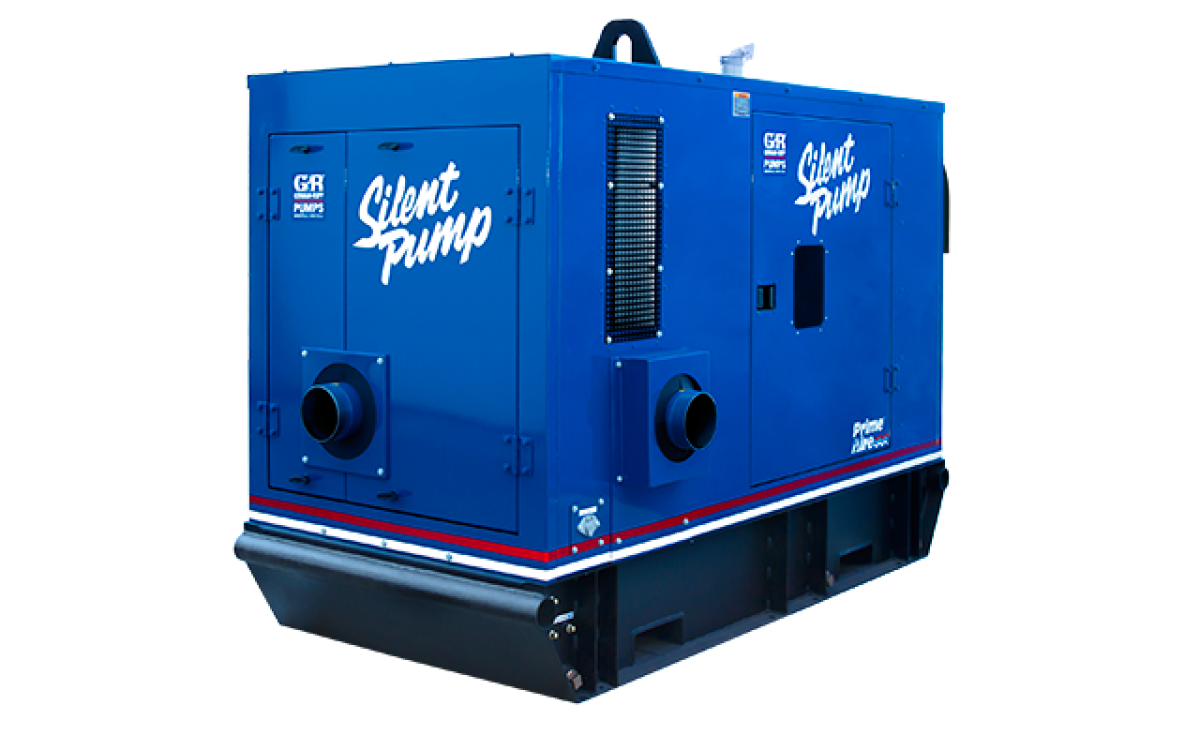

PA Series Silent Pump

For pumping applications where noise levels must be kept to a minimum, Gorman-Rupp offers a sound-attenuated engine-driven pump unit. Lockable doors prevent unauthorized personnel from tampering with the pump, fuel, engine or controls during unattended service. Fuel capacity allows for a minimum of 24 hours of continuous operation. All units feature a lightweight, corrosion-resistant aluminum enclosure that is acoustically treated to maintain noise levels as low as 63 dBa while operating at full load. Our environmentally engineered Silent Pump units operate much quieter than current industry standards.

RESOURCES

Silent Pump Brochure

MODELS

Item	Size	Casing	Impeller / Rotor	Drive	Flange	Seal
PA4E71C-3TNV88-ESP	4 x 4	Cast Iron	Ductile Iron	Diesel Engine SP	ASA	Silicon Carbide
PA6C60-4045T-ESP	6 x 6	Ductile Iron	Ductile Iron	Diesel Engine SP	ASA	Silicon Carbide
PA6H60-4045H FT4-ESP	8 x 6	Ductile Iron	Ductile Iron	Diesel Engine SP	ASA	Silicon Carbide
PA10A60-4045H-ESP	10 x 10	Cast Iron	Ductile Iron	Diesel Engine SP	ASA	Silicon Carbide
PA12A60-B-6068H-ESP	12 x 12	Cast Iron	Ductile Iron	Diesel Engine SP	ASA	Silicon Carbide
