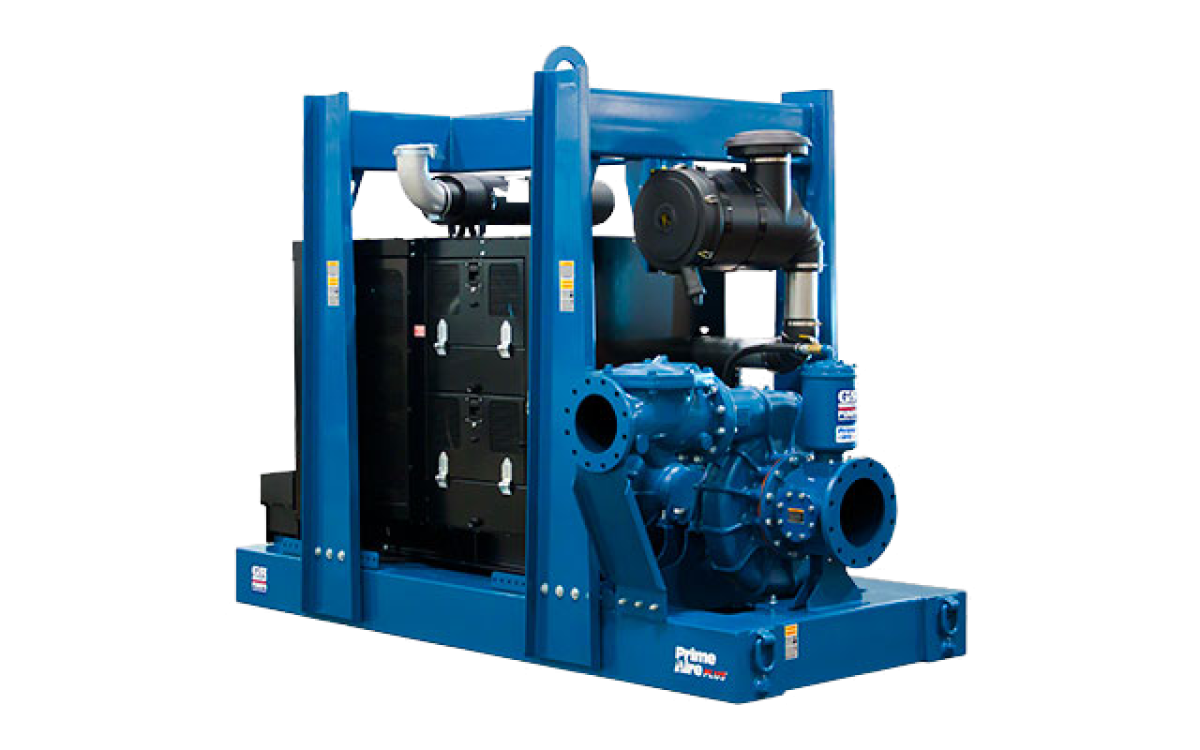

PAH SERIES® (PRIME AIRE PLUS) (Priming Assisted (Dry Prime) Pumps)

Prime Aire Plus pumps employ the same venturi/compressor priming system as the Prime Aire line. Increased head, flow and enhanced maintenance features are additional benefits of Prime Aire Plus pumps. Models feature sizes up to 8 inches and are suitable for both clear liquids and liquids containing large solids. All PAH Series pumps are available coupled to the latest EPA Tier compliant engines or premium efficiency electric motors.

Specifications

Size	3" (80 mm), 4" (100 mm), 6" (150 mm), 8" (200 mm), 10" (250 mm), 16" (400 mm)
Max Capacity	15000 GPM (947 lps)
Max Head	575' (175 m)
Max Solids	4" (102 mm)
Materials of Construction	Cast Iron

Đặt hàng

Mô tả

MODELS: PAH3A60-6068H ; PAH3A60C-B ; PAH3B60-4045H ; PAH4A60-6068H ; PAH4A60C-B ; PAH4A65-6068H ; PAH4A65C-B ; PAH4B60-4045H ; PAH4B60-QSB4.5P ; PAH4B65-4045H ; PAH4C60-6068H ; PAH4C60C-B ; PAH4D60-4045H ; PAH4E60-6068H ; PAH4E60C-B ; PAH4F60-4045H ; PAH6C60-6068H ; PAH6A60-6090H ; PAH6A60-6090H FT4 ; PAH6A60C-B ; PAH6A65-6090H ; PAH6A65-6090H FT4 ; PAH6A65C-B ; PAH6B60-6068H ; PAH6B65-6068H ; PAH6C60C-B ; PAH8A60-6090H ; PAH8A60-6090H FT4 ; PAH8A60C-B ; PAH8A65-6090H ; PAH8A65-6090H FT4 ; PAH8A65-C9 ; PAH8A65C-B ; PAH8C60-6068H ; PAH8C60C-B ; PAH10A60-C18 ; PAH10A60C-B ; PAH10B60-6135H ; PAH10B60-6135H FT4 ; PAH16A60-B-C18 ; PAH16A60C-B

PAH Series<sup>®</sup> (Prime Aire Plus)

RESOURCES

Prime Aire & Prime Aire Plus Brochure

MODELS

Item	Size	Casing	Impeller / Rotor	Drive	Flange	Seal
PAH3A60-6068H	6 x 3	Ductile Iron	Ductile Iron	Diesel Engine	ASA	Silicon Carbide
PAH3A60C-B	6 x 3	Ductile Iron	Ductile Iron	Basic	ASA	Silicon Carbide
PAH3B60-4045H	6 x 3	Ductile Iron	Ductile Iron	Diesel Engine	ASA	Silicon Carbide
PAH4A60-6068H	6 x 4	Ductile Iron	Ductile Iron	Diesel Engine	ASA	Silicon Carbide
PAH4A60C-B	6 x 4	Ductile Iron	Ductile Iron	Basic	ASA	Silicon Carbide
PAH4A65-6068H	6 x 4	CD4MCu	CD4MCu	Diesel Engine	ASA	Silicon Carbide
PAH4A65C-B	6 x 4	CD4MCu	CD4MCu	Basic	ASA	Silicon Carbide
PAH4B60-4045H	6 x 4	Ductile Iron	Ductile Iron	Diesel Engine	ASA	Silicon Carbide
PAH4B60-QSB4.5P	6 x 4	Ductile Iron	Ductile Iron	Diesel Engine	ASA	Silicon Carbide
PAH4B65-4045H	6 x 4	CD4MCu	CD4MCu	Diesel Engine	ASA	Silicon Carbide
PAH4C60-6068H	6 x 4	Ductile Iron	Ductile Iron	Diesel Engine	ASA	Silicon Carbide
PAH4C60C-B	6 x 4	Ductile Iron	Ductile Iron	Basic	ASA	Silicon Carbide
PAH4D60-4045H	6 x 4	Ductile Iron	Ductile Iron	Diesel Engine	ASA	Silicon Carbide
PAH4E60-6068H	6 x 4	Ductile Iron	Ductile Iron	Diesel Engine	ASA Spool	Carbon/Silicon Carbide
PAH4E60C-B	6 x 4	Ductile Iron	Ductile Iron	Basic	ASA Spool	Carbon/Silicon Carbide
PAH4F60-4045H	6 x 4	Ductile Iron	Ductile Iron	Diesel Engine	ASA Spool	Carbon/Silicon Carbide
PAH6C60-6068H	8 x 6	Ductile Iron	Ductile Iron	Diesel Engine	ASA Spool	Carbon/Silicon Carbide
PAH6A60-6090H	10 x 6	Ductile Iron	Ductile Iron	Diesel Engine	ASA	Silicon Carbide
PAH6A60-6090H FT4	10 x 6	Ductile Iron	Ductile Iron	Diesel Engine	ASA	Silicon Carbide
PAH6A60C-B	10 x 6	Ductile Iron	Ductile Iron	Basic	ASA	Silicon Carbide
PAH6A65-6090H	10 x 6	CD4MCu	CD4MCu	Diesel Engine	ASA	Silicon Carbide
PAH6A65-6090H FT4	10 x 6	CD4MCu	CD4MCu	Diesel Engine	ASA	Silicon Carbide
PAH6A65C-B	10 x 6	CD4MCu	CD4MCu	Basic	ASA	Silicon Carbide
PAH6B60-6068H	10 x 6	Ductile Iron	Ductile Iron	Diesel Engine	ASA	Silicon Carbide
PAH6B65-6068H	10 x 6	CD4MCu	CD4MCu	Diesel Engine	ASA	Silicon Carbide
PAH6C60C-B	10 x 6	Ductile Iron	Ductile Iron	Basic	ASA Spool	Carbon/Silicon Carbide
PAH8A60-6090H	10 x 8	Ductile Iron	Ductile Iron	Diesel Engine	ASA	Silicon Carbide
PAH8A60-6090H FT4	10 x 8	Ductile Iron	Ductile Iron	Diesel Engine	ASA	Silicon Carbide
PAH8A60C-B	10 x 8	Ductile Iron	Ductile Iron	Basic	ASA	Silicon Carbide
PAH8A65-6090H	10 x 8	CD4MCu	CD4MCu	Diesel Engine	ASA	Silicon Carbide
PAH8A65-6090H FT4	10 x 8	CD4MCu	CD4MCu	Diesel Engine	ASA	Silicon Carbide
PAH8A65-C9	10 x 8	Stainless Steel	Stainless Steel	Diesel Engine	ASA	Silicon Carbide
PAH8A65C-B	10 x 8	CD4MCu	CD4MCu	Basic	ASA	Silicon Carbide
PAH8C60-6068H	10 x 8	Ductile Iron	Ductile Iron	Diesel Engine	ASA Spool	Carbon/Silicon Carbide
PAH8C60C-B	10 x 8	Ductile Iron	Ductile Iron	Basic	ASA Spool	Carbon/Silicon Carbide
PAH10A60-C18	12 x 10	Ductile Iron	Ductile Iron	Diesel Engine		Silicon Carbide
PAH10A60C-B	12 x 10	Ductile Iron	Ductile Iron	Basic	ASA	Silicon Carbide
PAH10B60-6135H	12 x 10	Ductile Iron	Ductile Iron	Diesel Engine	ASA	Silicon Carbide
PAH10B60-6135H FT4	12 x 10	Ductile Iron	Ductile Iron	Diesel Engine	ASA	Silicon Carbide
PAH16A60-B-C18	18 x 16	Ductile Iron	Ductile Iron	Diesel Engine		Silicon Carbide
PAH16A60C-B	18 x 16	Ductile Iron	Ductile Iron	Basic	ASA	Silicon Carbide
