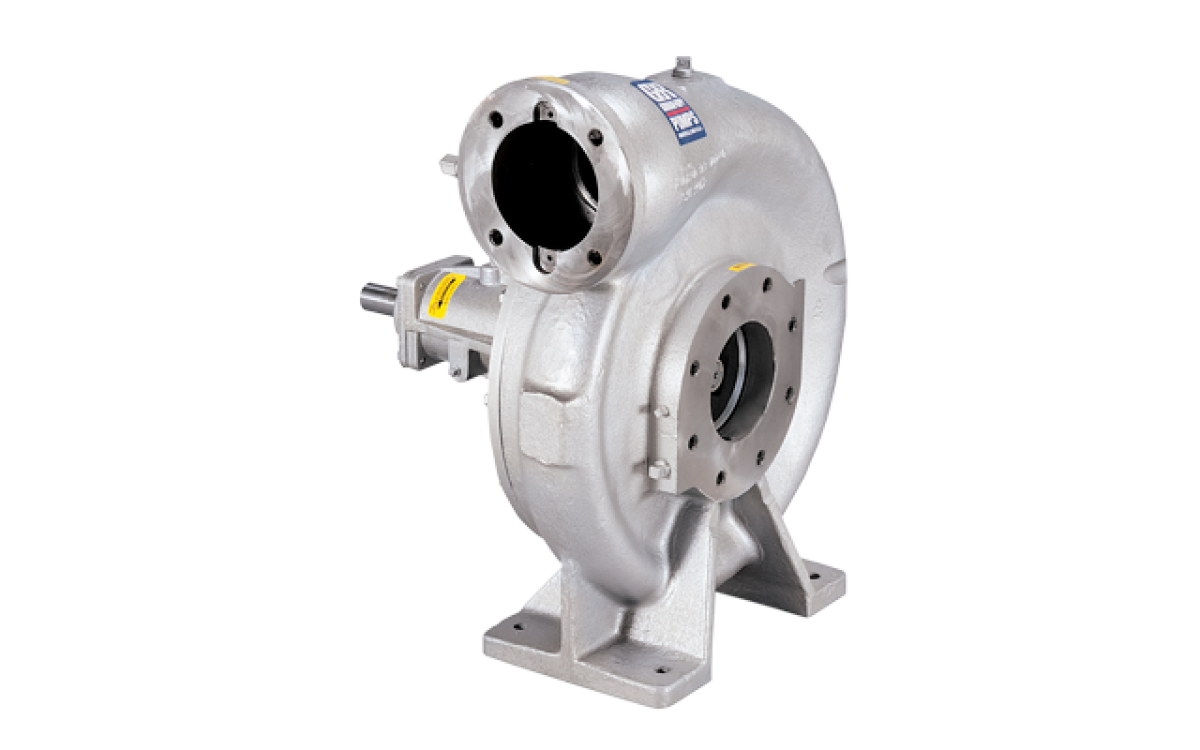

RD & RS SERIES® (ROTO PRIME) (Priming Assisted (Dry Prime) Pumps)

MODELS:

RD2A31-B ; RD2A31-BAR ; RS2A31-B ; RS2A31-BAR ; RS2A32-B ; RS2A32-BAR ; RD3A31-B ; RD3A31-BAR ; RD3A32-B ; RD3A32-BAR ; RS3A31-B ; RS3A31-BAR ; RS3A32-B ; RS3A32-BAR ; RD4A31-B ; RD4A31-BAR ; RD4A32-B ;  RD4A32-BAR ; RS5A31-B ; RS5A31-BAR ; RS5A32-B ; RS5A32-BAR

FEATURES

Automatic, Positive Pumping

Whenever air or vapor is present at the start of the pumping operation - or when there is a loss of suction because of air or vapor during pumping - the priming pump automatically moves air and vapor from the suction line to the discharge line. Once the flowing liquid from the centrifugal portion of the pump builds up sufficient pressure in the discharge system, this pressure backs up through a tube to act on the bottom of the priming pump's moveable slide block, placing it in a neutral position. Under these conditions the priming pump no longer evacuates air, but merely circulates a small amount of liquid.

RESOURCES

Roto-Prime Petroleum Pump Brochure

MODELS
