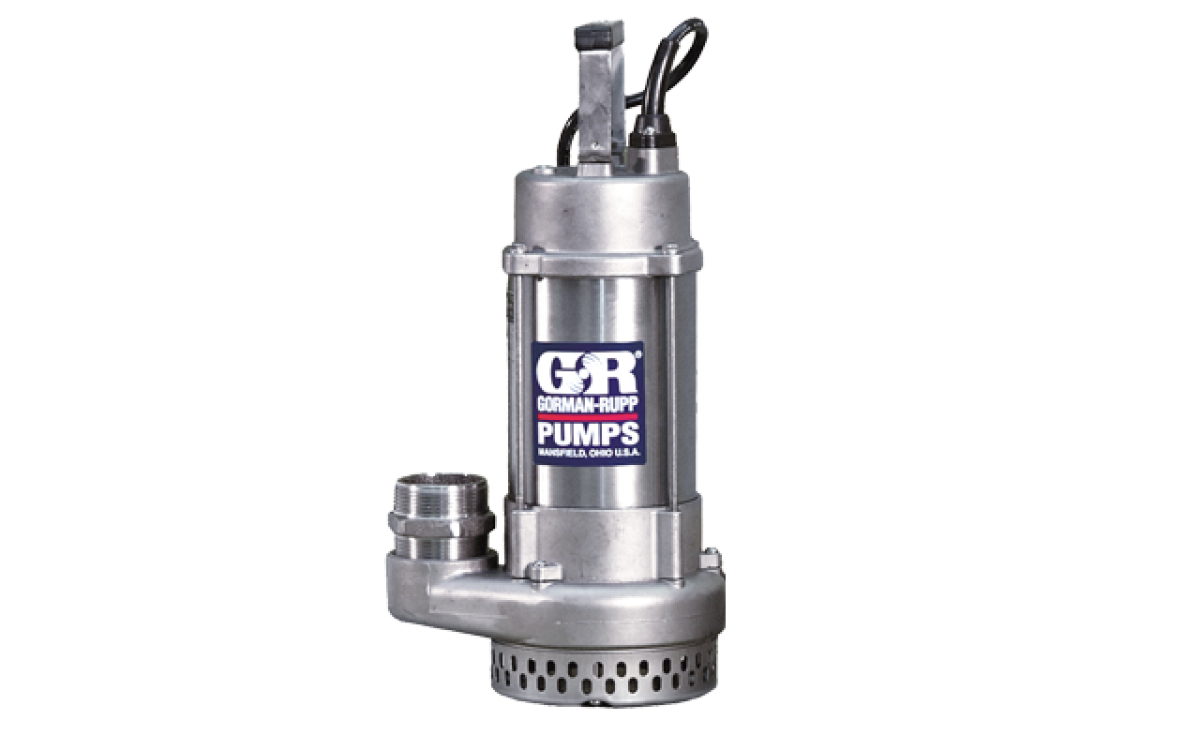

SE SERIES (Submersible Pumps (60 Hz))(MÁY BƠM CHÌM)

Slim, lightweight submersible pumps for dewatering applications where solids are not a concern. Ideal for flooded basements, pools, ponds, pits or anywhere else the pump can be lowered into the water. A 12 Volt model is available that runs off a truck battery in the event of a power failure.

Model: SE1 1/2B3-E.33 12V ; SE2G-E.5 115/1 ; SE2H-E1 115/1 ; SE2J-E.5 115/1 ; SE2J3-E.5 115/1 ; SE2K3-E1 115/1.

Specifications

Size	1-1/2" (40 mm), 2" (50 mm), 3" (80 mm), 4" (100 mm)
Max Capacity	85 GPM (5 lps)
Max Head	58' (18 m)
Materials of Construction	Aluminum, Cast Iron, Stainless Steel
Motor - Voltage	115 V 1P
Motor - Cycles	60 Hz
Horsepower	.33 - 1 HP

Đặt hàng

Mô tả

SE Series

MODELS

Item	Size	Casing	Impeller / Rotor	Drive	Flange	Seal
SE1 1/2B3-E.33 12V	1.5	Aluminum	Cast Iron	Electric Motor	NPT	Carbon/Ceramic
SE2G-E.5 115/1	2	Stainless Steel	Stainless Steel	Electric Motor	ASA	Carbon/Ceramic
SE2H-E1 115/1	2	Stainless Steel	Stainless Steel	Electric Motor	ASA	Carbon/Ceramic
SE2J-E.5 115/1	2	Stainless Steel		Electric Motor	ASA	Carbon/Ceramic
SE2J3-E.5 115/1	2	Cast Iron	Cast Iron	Electric Motor	None	Buna-N
SE2K3-E1 115/1	2	Cast Iron	Cast Iron	Electric Motor	None	Buna-N
