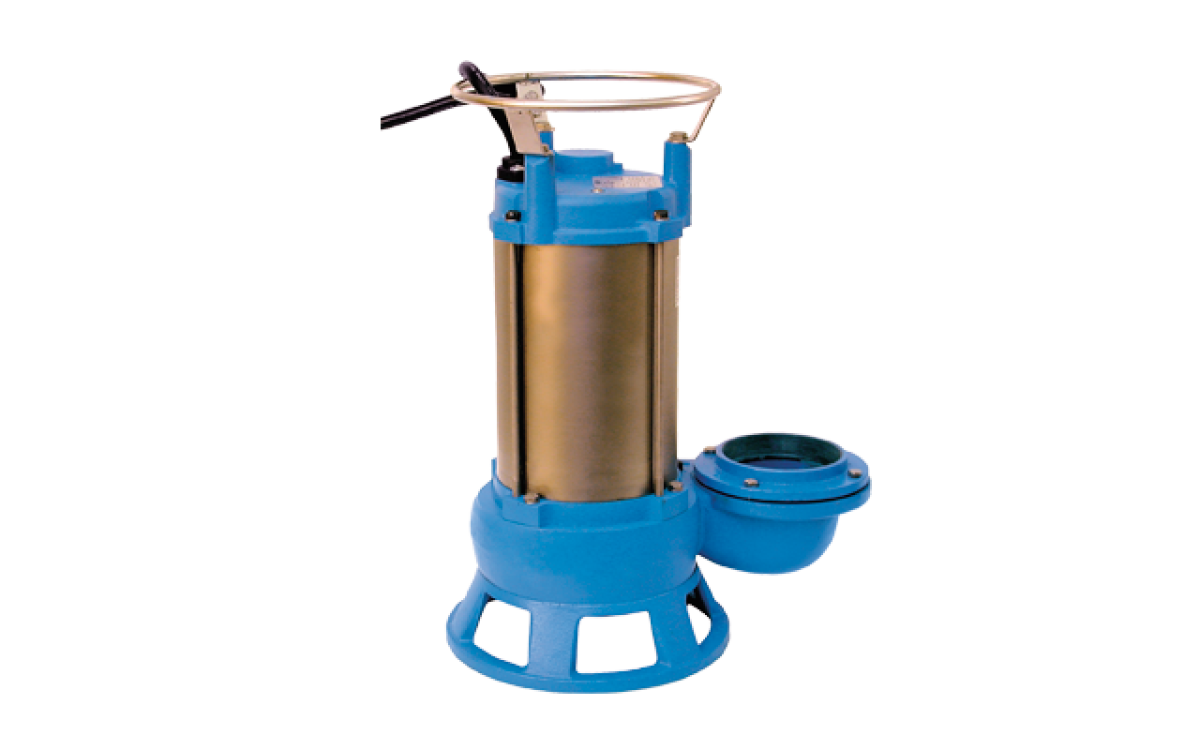

SH SERIES (Submersible Pumps (60 Hz))(MÁY BƠM HỐ MÓNG)

Submersible shredder sewage pumps feature an enhanced spiral shredder mechanism plate and carbide-tipped impeller to prevent clogging and reduce maintenance when cutting through stringy, fibrous and sludge-type waste. Applications include sewage pumping stations, septic tanks, sewage treatment plants, dirty water drainage, flood and emergency. Motors are rated continuous duty and single phase models have thermal overload protection.

Specifications

Size	2" (50 mm), 3" (80 mm), 4" (100 mm)
Max Capacity	280 GPM (18 lps)
Max Head	95' (29 m)
Max Solids	1" (25 mm)
Materials of Construction	Cast Iron
Motor - Voltage	115 V 1P, 230 V 1P, 460 V 3P
Motor - Cycles	60 Hz
Horsepower	1 - 5 HP

Đặt hàng

Mô tả

Models: SH2A3-E1 115/1 ; SH2A3-E1 230/1 ; SH2A3-E1 460/3 ; SH3A3-E2 230/1 ; SH3A3-E2 460/3 ; SH4A3-E3 230/1 ; SH4B3-E5 460/3

SH Series

MODELS

Item	Size	Casing	Impeller / Rotor	Drive	Flange	Seal
SH2A3-E1 115/1	2	Cast Iron		Electric Motor	ASA	Silicon Carbide
SH2A3-E1 230/1	2	Cast Iron		Electric Motor	ASA	Silicon Carbide
SH2A3-E1 460/3	2	Cast Iron		Electric Motor	ASA	Silicon Carbide
SH3A3-E2 230/1	3	Cast Iron		Electric Motor	ASA	Silicon Carbide
SH3A3-E2 460/3	3	Cast Iron		Electric Motor	ASA	Silicon Carbide
SH4A3-E3 230/1	4	Cast Iron		Electric Motor	ASA	Silicon Carbide
SH4B3-E5 460/3	4	Cast Iron		Electric Motor	ASA	Silicon Carbide
