VG SERIES (Centrifugal Pumps)

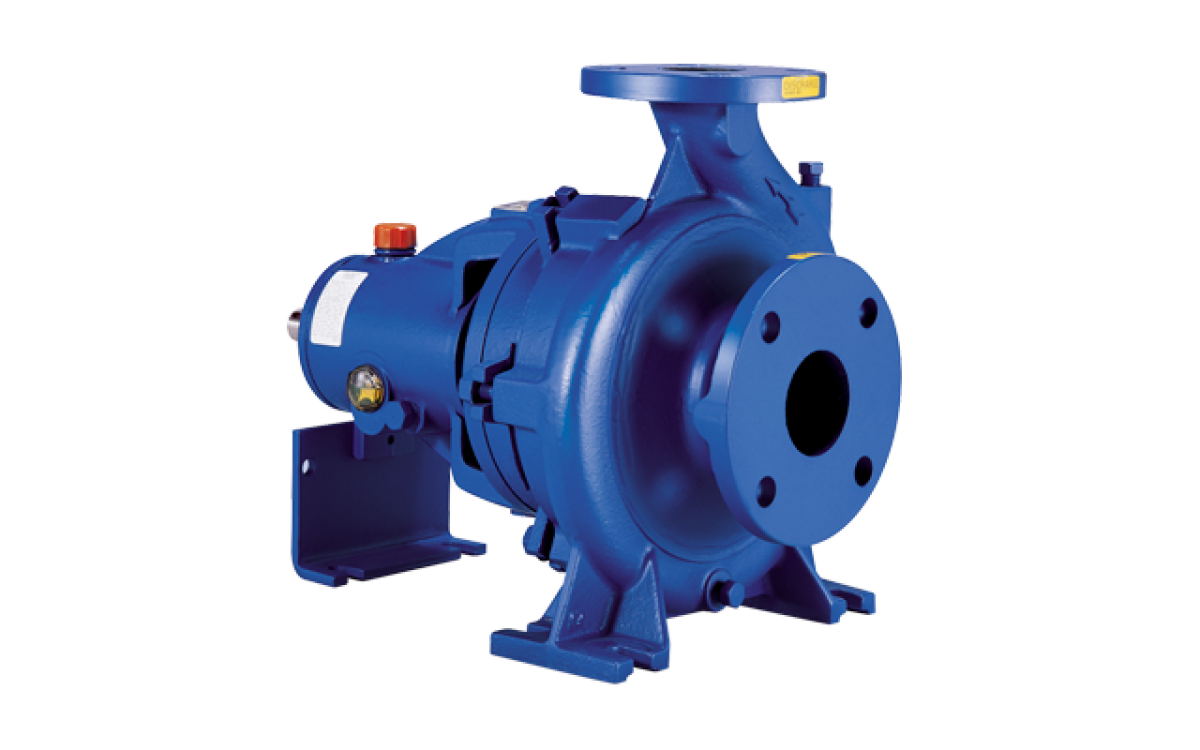

Gorman-Rupp VG Series centrifugal pumps are engineered for maximum operating efficiency and minimal energy consumption when pumping clear liquids. The enclosed impeller design incorporates double curvature vanes for higher efficiency. The entrance of the volute casing has dynamic positioning vanes that direct the flow to the impeller for increased efficiency while reducing net positive suction head (NPSH). Impeller trims can provide maximum flexibility for your specific application.

Specifications

Size	1-1/4" (30 mm), 1-1/2" (40 mm), 2" (50 mm), 2-1/2" (60 mm), 3" (80 mm), 4" (100 mm), 5" (125 mm), 6" (150 mm), 8" (200 mm)
Max Capacity	4900 GPM (309 lps)
Max Head	500' (152 m)
Max Solids	1-3/8" (35 mm)
Max Temperature	160 F (71 C)
Materials of Construction	Cast Iron

Đặt hàng

Mô tả

VG Series Standard Cenrifugal Pumps

MODELS

tem	Size	Casing	Impeller / Rotor	Drive	Flange	Seal
VG1 1/4B3-B	2 x 1.25	Cast Iron	Cast Iron	Basic	ASA	Carbon/Ceramic
VG1 1/4C3-B	2 x 1.25	Cast Iron	Cast Iron	Basic	ASA	Carbon/Ceramic
VG1 1/2C3-B	2.5 x 1.5	Cast Iron	Cast Iron	Basic	ASA	Carbon/Ceramic
VG1 1/2D3-B	2.5 x 1.5	Cast Iron	Cast Iron	Basic	ASA	Carbon/Ceramic
VG2C3-B	2.5 x 2	Cast Iron	Cast Iron	Basic	ASA	Carbon/Ceramic
VG2D3-B	2.5 x 2	Cast Iron	Cast Iron	Basic	ASA	Carbon/Ceramic
VG2 1/2B3-B	3 x 2.5	Cast Iron	Cast Iron	Basic	ASA	Carbon/Ceramic
VG2 1/2C3-B	3 x 2.5	Cast Iron	Cast Iron	Basic	ASA	Carbon/Ceramic
VG2 1/2D3-B	3 x 2.5	Cast Iron	Cast Iron	Basic	ASA	Carbon/Ceramic
VG3B3-B	4 x 3	Cast Iron	Cast Iron	Basic	ASA	Carbon/Ceramic
VG3C3-B	4 x 3	Cast Iron	Cast Iron	Basic	ASA	Carbon/Ceramic
VG4C3-B	5 x 4	Cast Iron	Cast Iron	Basic	ASA	Carbon/Ceramic
VG4D3-B	5 x 4	Cast Iron	Cast Iron	Basic	ASA	Carbon/Ceramic
VG5B3-B	6 x 5	Cast Iron	Cast Iron	Basic	ASA	Carbon/Ceramic
VG5C3-B	6 x 5	Cast Iron	Cast Iron	Basic	ASA	Carbon/Ceramic
VG6D3-B	8 x 6	Cast Iron	Cast Iron	Basic	ASA	Carbon/Ceramic
VG6E3-B	8 x 6	Cast Iron	Cast Iron	Basic	ASA	Carbon/Ceramic
VG8D3-B	10 x 8	Cast Iron	Cast Iron	Basic	ASA	Carbon/Ceramic
