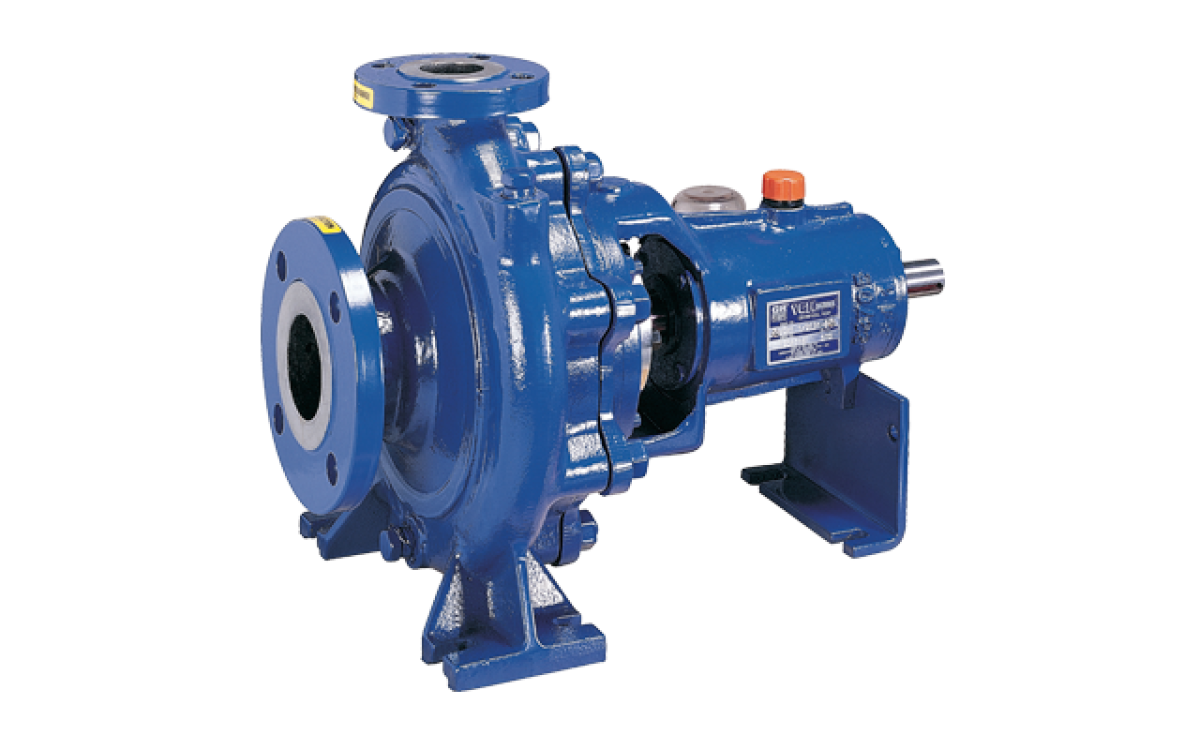

VGH SERIES (Centrifugal Pumps)

Gorman-Rupp VGH Series centrifugal pumps are engineered for maximum operating efficiency and minimal energy consumption when pumping dirty liquids and mild abrasives. The enclosed impeller design incorporates double curvature vanes for higher efficiency. The entrance of the volute casing has dynamic positioning vanes that direct the flow to the impeller for increased efficiency while reducing net positive suction head (NPSH). Impeller trims can provide maximum flexibility for your specific application.

Specifications

Size	1-1/4" (30 mm), 1-1/2" (40 mm), 2" (50 mm), 3" (80 mm), 4" (100 mm), 6" (150 mm), 8" (200 mm)
Max Capacity	4900 GPM (309 lps)
Max Head	500' (152 m)
Max Solids	1-3/8" (35 mm)
Max Temperature	160 F (71 C)
Materials of Construction	Cast Iron, Ductile Iron

Đặt hàng

Mô tả

VGH Series Standard Centrifugal Pumps

MODELS

Item	Size	Casing	Impeller / Rotor	Drive	Flange	Seal
VGH1 1/4B31-B	2 x 1.25	Ductile Iron	Cast Iron	Basic	ASA	Silicon Carbide
VGH1 1/4C31-B	2 x 1.25	Ductile Iron	Cast Iron	Basic	ASA	Silicon Carbide
VGH1 1/4D31-B	2 x 1.25	Ductile Iron	Cast Iron	Basic	ASA	Silicon Carbide
VGH1 1/2C31-B	2.5 x 1.5	Ductile Iron	Cast Iron	Basic	ASA	Silicon Carbide
VGH1 1/2D31-B	2.5 x 1.5	Ductile Iron	Cast Iron	Basic	ASA	Silicon Carbide
VGH2C31-B	3 x 2	Ductile Iron	Cast Iron	Basic	ASA	Silicon Carbide
VGH2D31-B	3 x 2	Ductile Iron	Cast Iron	Basic	ASA	Silicon Carbide
VGH2E31-B	3 x 2	Ductile Iron	Cast Iron	Basic	ASA	Silicon Carbide
VGH2 1/2B31-B	4 x 2.5	Ductile Iron	Cast Iron	Basic	ASA	Silicon Carbide
VGH2 1/2C31-B	4 x 2.5	Ductile Iron	Cast Iron	Basic	ASA	Silicon Carbide
VGH2 1/2D31-B	4 x 2.5	Ductile Iron	Cast Iron	Basic	ASA	Silicon Carbide
VGH3B31-B	5 x 3	Ductile Iron	Cast Iron	Basic	ASA	Silicon Carbide
VGH3C31-B	5 x 3	Ductile Iron	Cast Iron	Basic	ASA	Silicon Carbide
VGH3E31-B	5 x 3	Ductile Iron	Cast Iron	Basic	ASA	Silicon Carbide
VGH4C31-B	5 x 4	Ductile Iron	Cast Iron	Basic	ASA	Silicon Carbide
VGH4D31-B	5 x 4	Ductile Iron	Cast Iron	Basic	ASA	Silicon Carbide
VGH5B31-B	6 x 5	Ductile Iron	Cast Iron	Basic	ASA	Silicon Carbide
VGH5C31-B	6 x 5	Ductile Iron	Cast Iron	Basic	ASA	Silicon Carbide
VGH6D31-B	8 x 6	Ductile Iron	Cast Iron	Basic	ASA	Silicon Carbide
VGH6E31-B	8 x 6	Ductile Iron	Cast Iron	Basic	ASA	Silicon Carbide
VGH8D31-B	10 x 8	Ductile Iron	Cast Iron	Basic	ASA	Silicon Carbide
